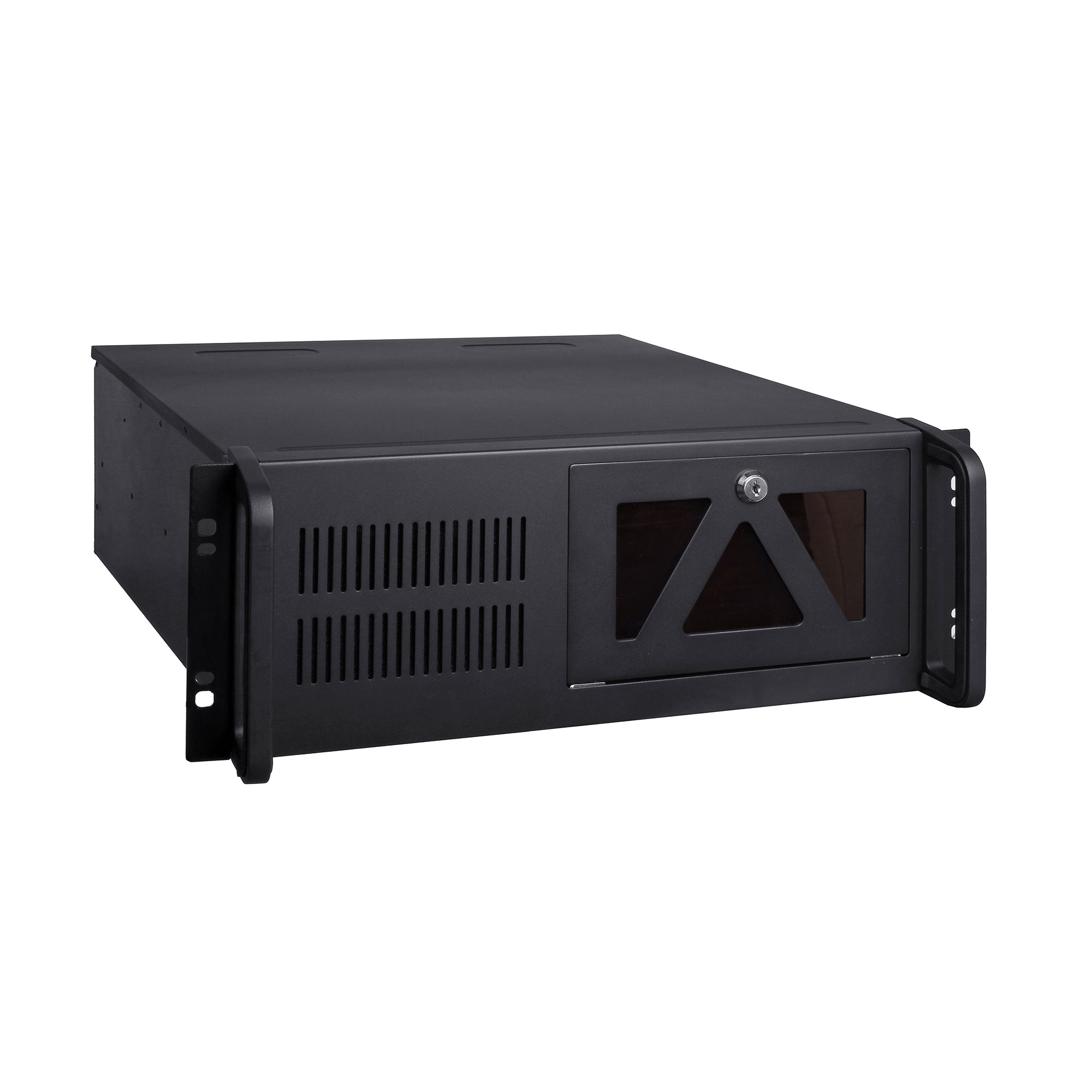

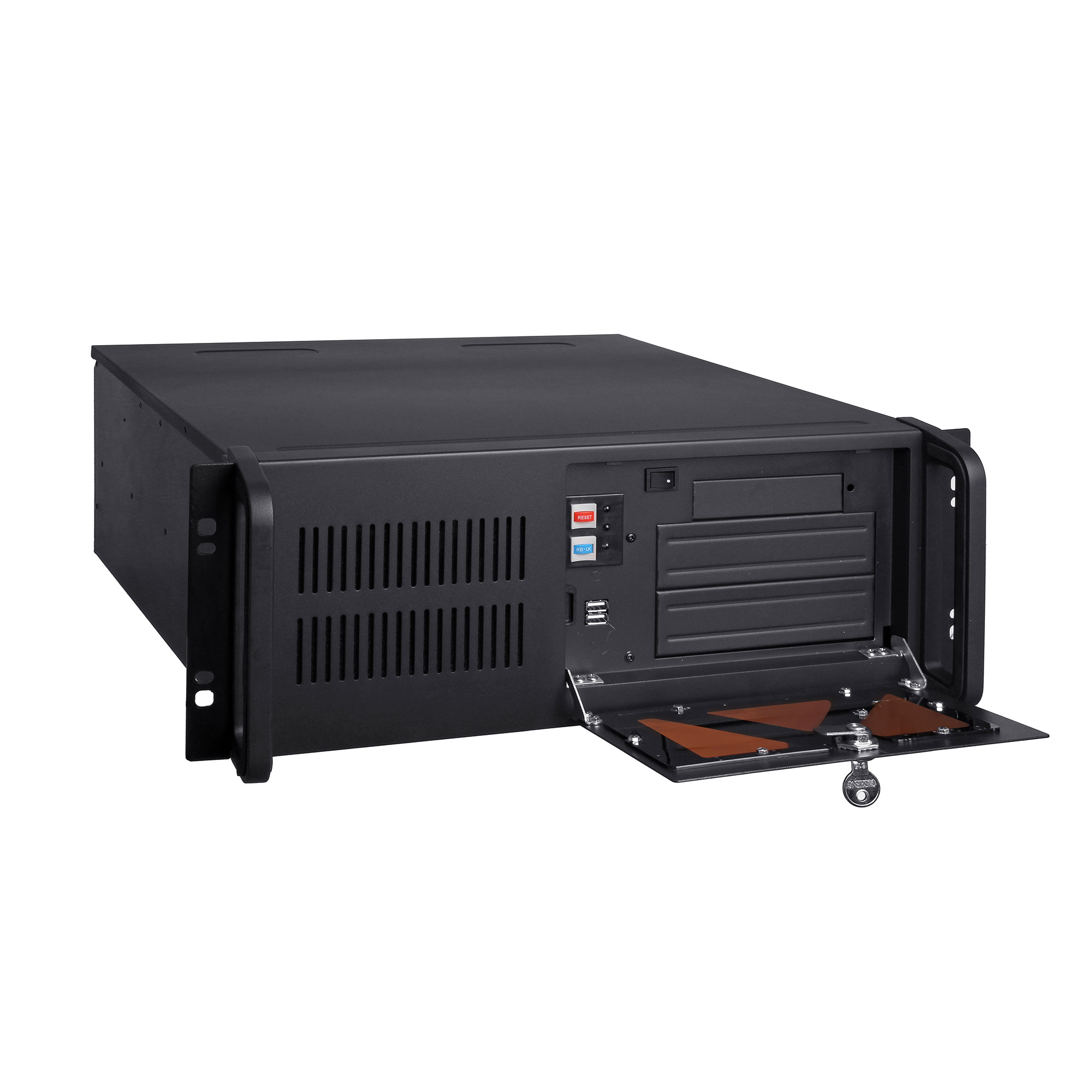

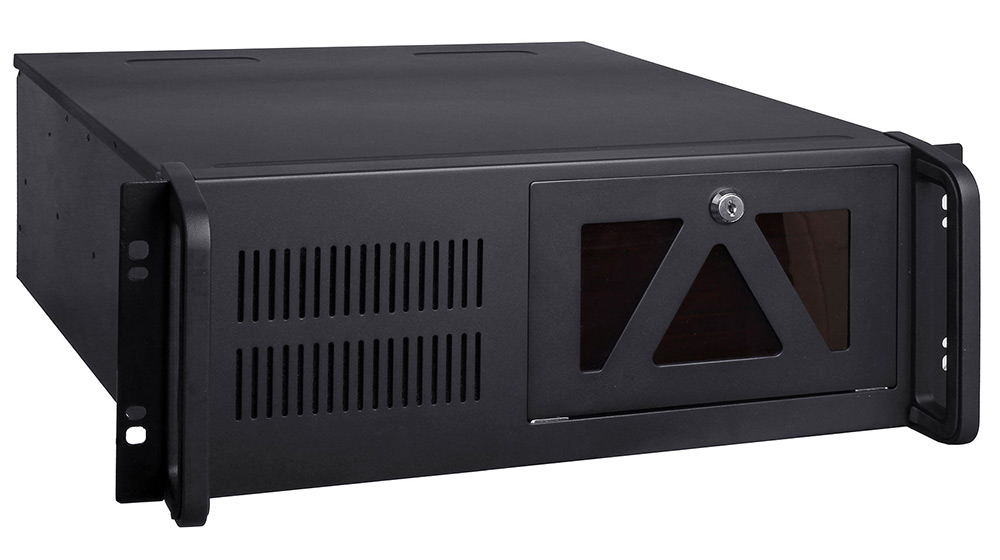

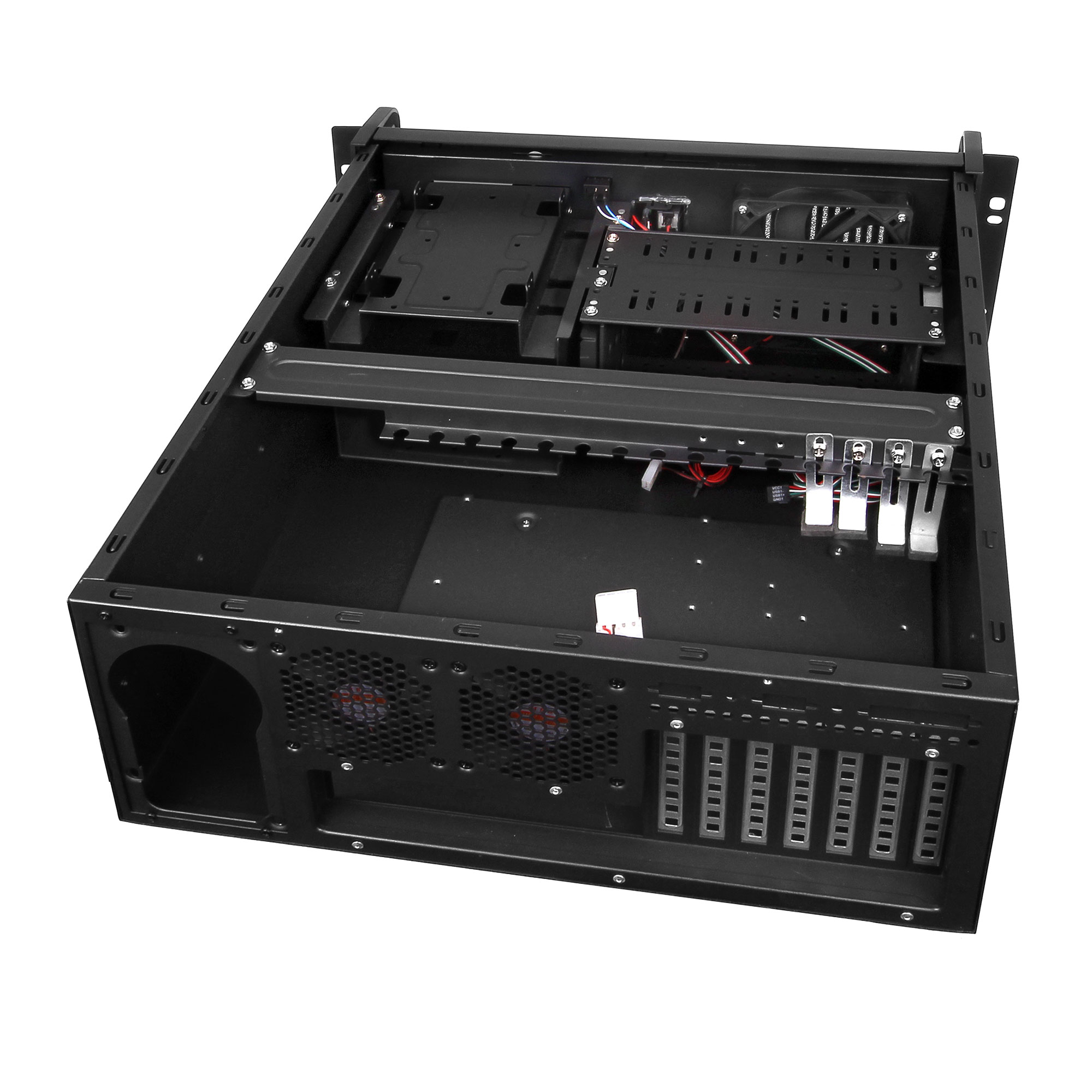

4U450-07/4U4017S
Specification
Type | 4U |
Motherboard Support | mATX, ATX |
Max. motherboard size, mm | 305 x 244 |
Drive Bay: | |
Ext. 5.25" | 2 |
Ext. 3.5" | 1 |
Int. 3.5" | 7 |
Dust | Front panel is equipped with dust filters |
Front I/O Ports | 2 x USB 2.0 |
Control & Indicator, LED | 1 x Power, 1 x HDD, 1 x KL |
Switch | RESET, POWER, KEY LOCK |
Expansion Slots | 7 |
Cooling System: | 2 x 8 cm on the rear panel, 1 x 12 cm on the front panel |
PSU | Support ATX Power Supply |
Recommended Exegate PSU | ServerPRO-500ADS, ServerPRO-600ADS, ServerPRO-700ADS, ServerPRO-800ADS |
Chassis material | 1.0 mm steel |
Cases color | Black |
Chassis color | Black |
Dimensions (D x W x H), mm | 450 x 430 x 177 |
Net Weight w/o PSU / with PSU, kg | 10,1/11,4 |
PSU model | w/o PSU | 500W | 600W | 700W | 800W |
P/N | EX244499 | EX251804 | EX251805 | EX251806 | EX251807 |
EAN | 4897040858823 | 4897040859646 | 4897040859653 | 4897040859660 | 4897040859677 |
