SSD adapters

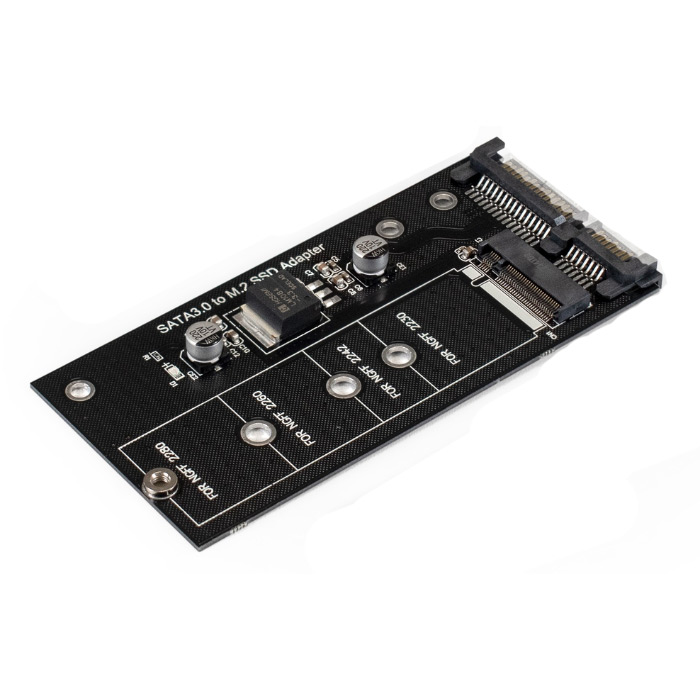

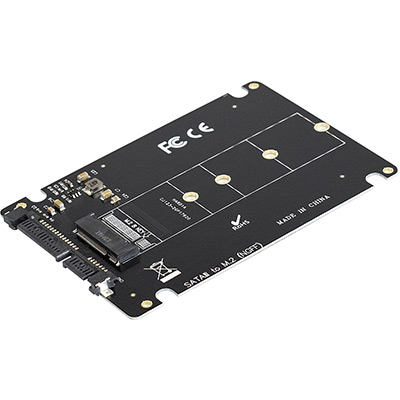

| Model |  EXE-527 M.2 B key -> 2.5" SATA |

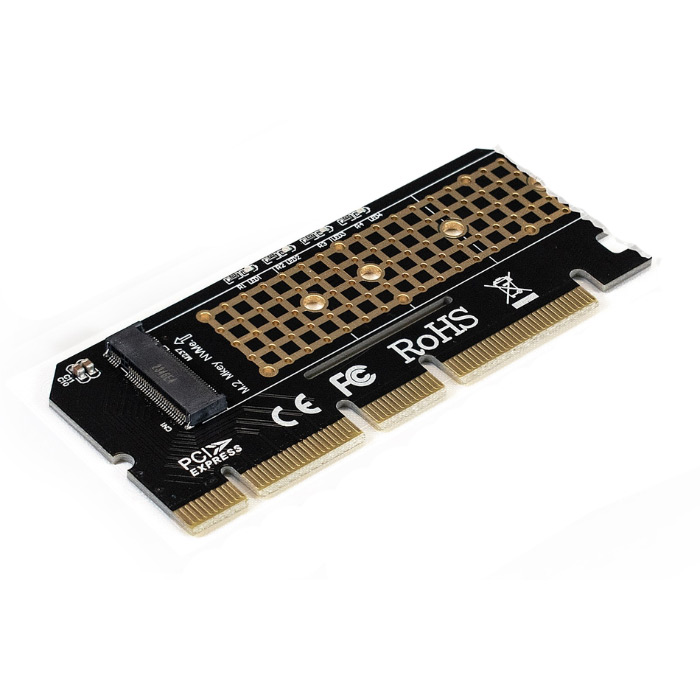

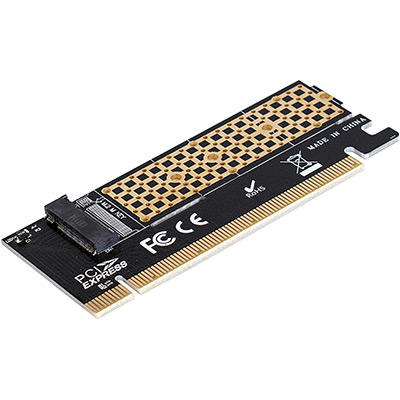

 EXE-529 M.2 M Key -> PCI-Ex16 |

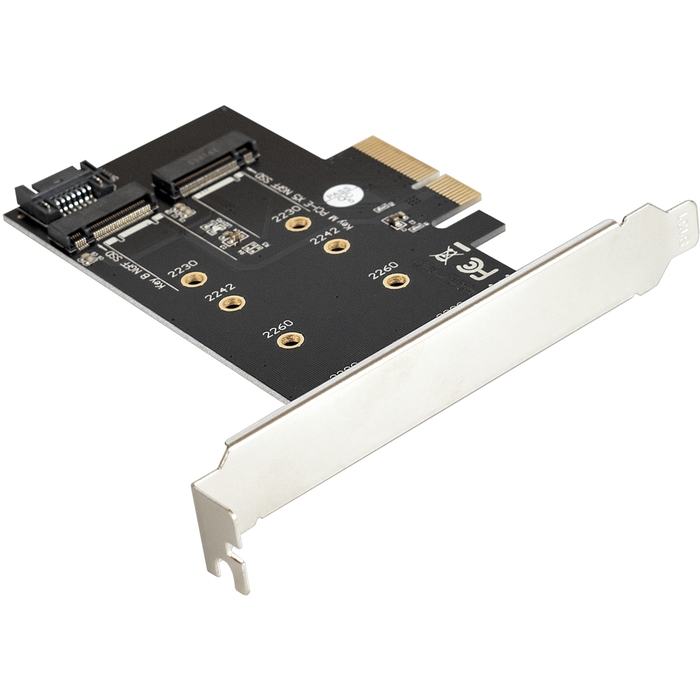

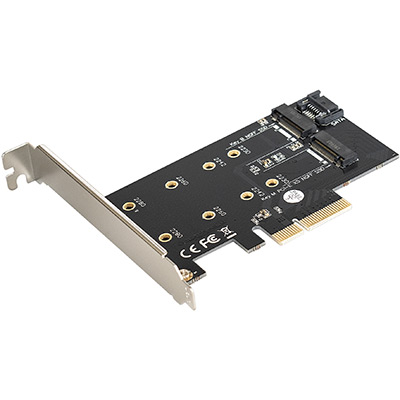

 EXE-509 M.2 B key + M.2 M Key -> PCI-Ex4/SATA |
| Overview | SATA to M.2 Key B is an NVMe adapter card, which can support an M.2 Key B SATA protocol SSD. It complies with the Serial ATA rev3.0 specification, and is backward compatible with SATA-II and SATA-I. The data transmission speed is up to 6Gbps, which can be used in laptops, desktop computers, small computers and other devices. | PCIe X16 M.2 M KEY NVMe SSD Adapter , is a multi-functional NVMe conversion card. It can support the PCIe protocol NVMe SSD to connect directly to the motherboard, or the SATA Protocol NVMe SSD to connect to the motherboard SATA port with SATA cable. | This PCIe x4 M.2 NVMe SSD Adapter is a multi-functional NVMe conversion card, It can support the PCIe protocol NVMe SSD to connect directly to the motherboard, or the SATA Protocol NVMe SSD to connect to the motherboard SATA port with SATA cable. It has support with ultra-fast PCI Express V3.0 X4 lanes transmit bandwidth up to 32GT/S, and it has support with Serial ATA v3.0 transmit speed up to 6Gbps. By this adapter can be improved system speed ,and improve the efficiency of office and entertainment. |
| Bus interface | SATA3.0 | PCI Express V3.0 X16, SATA 3.0 | PCI Exrpess X4 Revision 3.0, Serial ATA 3.0 |
| Compatible | - | SATA 3.0 | SATA 3.0 |
| Interface | 1 x M.2 B KEY 1 x 7 + 15-pin SATA |
1 x M.2 M Key SSD connetors | Support Any "M" Key M.2 SSD , "B" Key and "B+M" Key M.2 SSD B-Key interface can insert SSD of M.2 NGFF SATA Protocol, then insert SATA cable to connect motherboard ,use PCI-E to supply power, without External power supply M-Key interface can insert SSD of M.2 NGFF PCI-E Protocol, and PCI-E transmission data do not need to access SATA cable to connect motherboard |
| Data rate | - | - | up to 6Gbps |
| Drive sizes | - | - | 80, 60, 42, 30 mm |
| Power | - | PCI-E | PCI-E |
| Operating mode | - | Safe Mode: Mirror data from SSDs to mechanical hard drives for optimized data protection; Capacity Mode: Combine the capacity of solid state drives and mechanical hard disks 2-in-1 |
Safe Mode: Mirror data from SSDs to mechanical hard drives for optimized data protection; Capacity Mode: Combine the capacity of solid state drives and mechanical hard disks 2-in-1 |
| Size M.2 | 2230, 2242, 2260, 2280 mm | - | - |
| Support | - | NVMe key B/M m.2 SSD including 2230,2242,2260, and 2280 drives | NVMe key B/M m.2 SSD including 2230,2242,2260, and 2280 drives |
| Packing | Frame,screw, screwdriver, thermal pad | Screwdriver, thermal pad, screw | Low profile plug, screw, screwdriver, thermal pad, SATA |
| System Requirements | Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit/Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2/DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8 | Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit/Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2/DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8 | Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit/Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2/DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8 |
| P/N | EX283708 | EX283709 | EX283713 |
| EAN | 4895205117280 | 4895205117297 | 4895205117327 |
