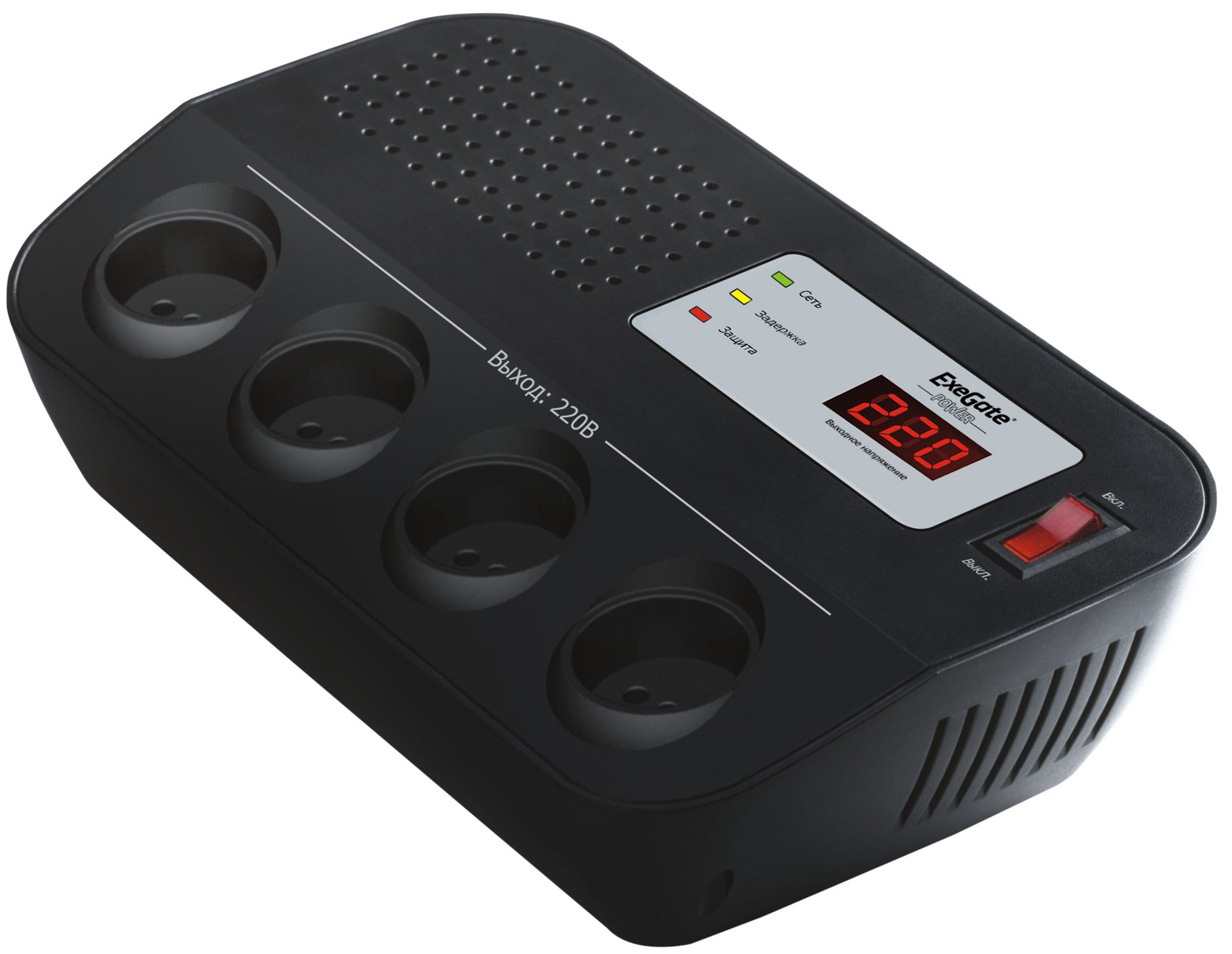

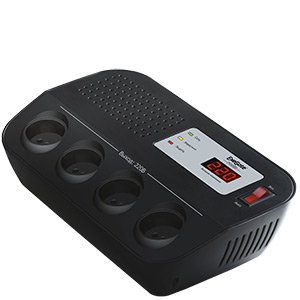

Series RP
 |
|
| RP-500 | RP-1000 |
Specification
| Input Frequency, Hz | 50 |
| Input Voltage, V | 150 - 260 |
| Output Voltage, V | 220±10% |
| Efficiency, % | 98 |
| Indicator Mode | Working - Green LED Overheat - Red LED Delay - Yellow LED Unusual - Red LED |
| Digital display of the input / output parameters | Yes |
| Delay/Undelay selection | Yes |
| Protection | Against Overcharge, Overload, Surges, Lightning, and other power disturbances |
| Circuit Protection | Resettable fuse |
| Socket | Socket CEE 7/3 x 4 |
| Protection FAX/MODEM/TEL Line | Yes |
| Operating Environment, °C | 0-40 |
| Operating Relative Humidity, % | 0-95 |
| Dimensions (L x W x H), mm | 275 x 70 x 180 |
| Model | RP-500 | RP-1000 |
| Output power capacity VA/W | 500/280 | 1000/500 |
| Weight, kgs | 1,9 | 2 |
| P/N | EP259013 | EP259014 |
| EAN | 4895205101951 | 4895205101944 |
