Series EL
 |
Series EL |
| Description | The lead-acid maintenance-free VLRA batteries of the ExeGate EL series are manufactured using GEL technology, are completely sealed and maintenance-free. Due to their design, they are suitable for equipment that requires a reliable power source under high loads and non-standard conditions. With proper operation, gel batteries retain their capacity and functionality for a long time, which makes them in demand among users who need a reliable and durable battery. To extend the service life and maintain the working condition of the battery, it is important to follow the recommendations for chargin |
| Features | The case is made of plastic, which does not support combustion and prevents leakage of electrolyte.Gorenje Double sealing of terminals. The batteries are equipped with an internal gas recombination system, do not require refilling water, are resistant to corrosion and deep discharges, have a long service life and a wide range of operating temperatures. Comply with the requirements of the UL directive. Operation in different positions is acceptable without loss of productivity. |
| Standards and certifications | Declaration of conformity GOST 12.2.007.12-88; GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10; GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4 |
| Battery Life | |
| In buffered mode | 16 years (at 25°C) |
| Cyclic mode | 1200 cycles at 30% depth of discharge |
| Number of charge-discharge cycles in cyclic mode at 100% discharge | 240 |
| Self-discharge | 3% per month at 20°C |
| Charge method | Constant voltage charge (25°C) |
| Cyclic mode | 2.4 - 2.5 V / cell |
| Buffer mode | 2.25 - 2.3 V / cell |
| Cabinet material | ABS plastic |
| Temperature modes | |
| Storage | from -35°C to + 60°C |
| Charge | from -10°C to + 60°C |
| Discharge | from -20°C to + 60°C |
| Warranty | 12 months if operating conditions are observed |
| Model | Weight, kg | Terminal type | Supply voltage, V | Battery capacity, Ah | Maximum discharge current (25°C) | Length, mm | Width, mm | Height, mm | Height with terminal, mm | P/N | EAN |

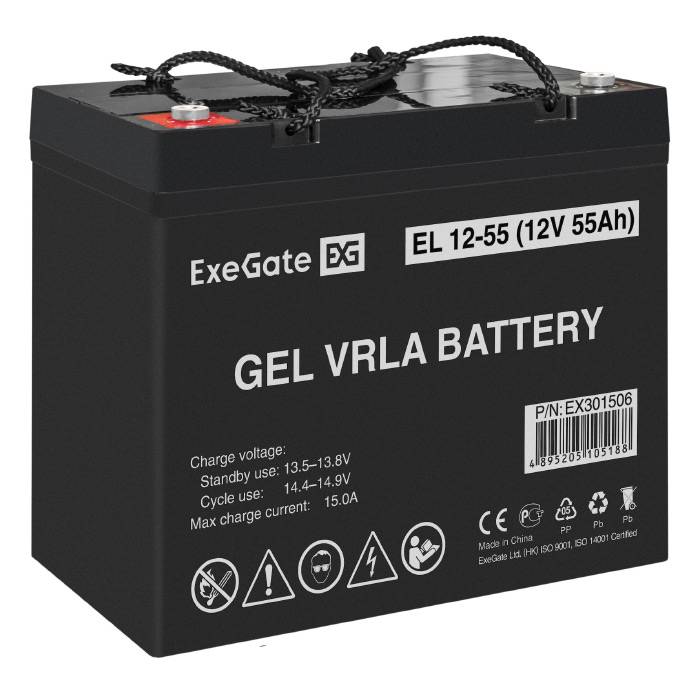

| EL 12-55-M6 (12V 55Ah) | 16,50 | for M6 bolt | 12 | 55 | 165A(5s) | 229 | 132 | 205 | 210 | EX301506 | 4895205105188 |
| EL 12-65-M6 (12V 65Ah) | 20,00 | for M6 bolt | 12 | 65 | 195A(5s) | 350 | 166 | 179 | 179 | EX301507 | 4895205105195 |
| EL 12-80-M6 (12V 80Ah) | 22,40 | for M6 bolt | 12 | 80 | 240A(5s) | 259 | 169 | 208 | 227 | EX301505 | 4895205112322 |
| EL 12-100-M8 (12V 100Ah) | 30,50 | for M8 bolt | 12 | 100 | 200A(5s) | 330 | 171 | 214 | 220 | EX301508 | 4895205112377 |
| EL 12-120-M8 (12V 120Ah) | 34,00 | for M8 bolt | 12 | 120 | 200A(5s) | 410 | 175 | 227 | 227 | EX301509 | 4895205113091 |
| EL 12-150-M8 (12V 150Ah) | 43,00 | for M8 bolt | 12 | 150 | 300A(5s) | 484 | 171 | 241 | 241 | EX301510 | 4895205113107 |
| EL 12-200-M8 (12V 200Ah) | 58,00 | for M8 bolt | 12 | 200 | 400A(5s) | 522 | 238 | 218 | 223 | EX301511 | 4895205113114 |
