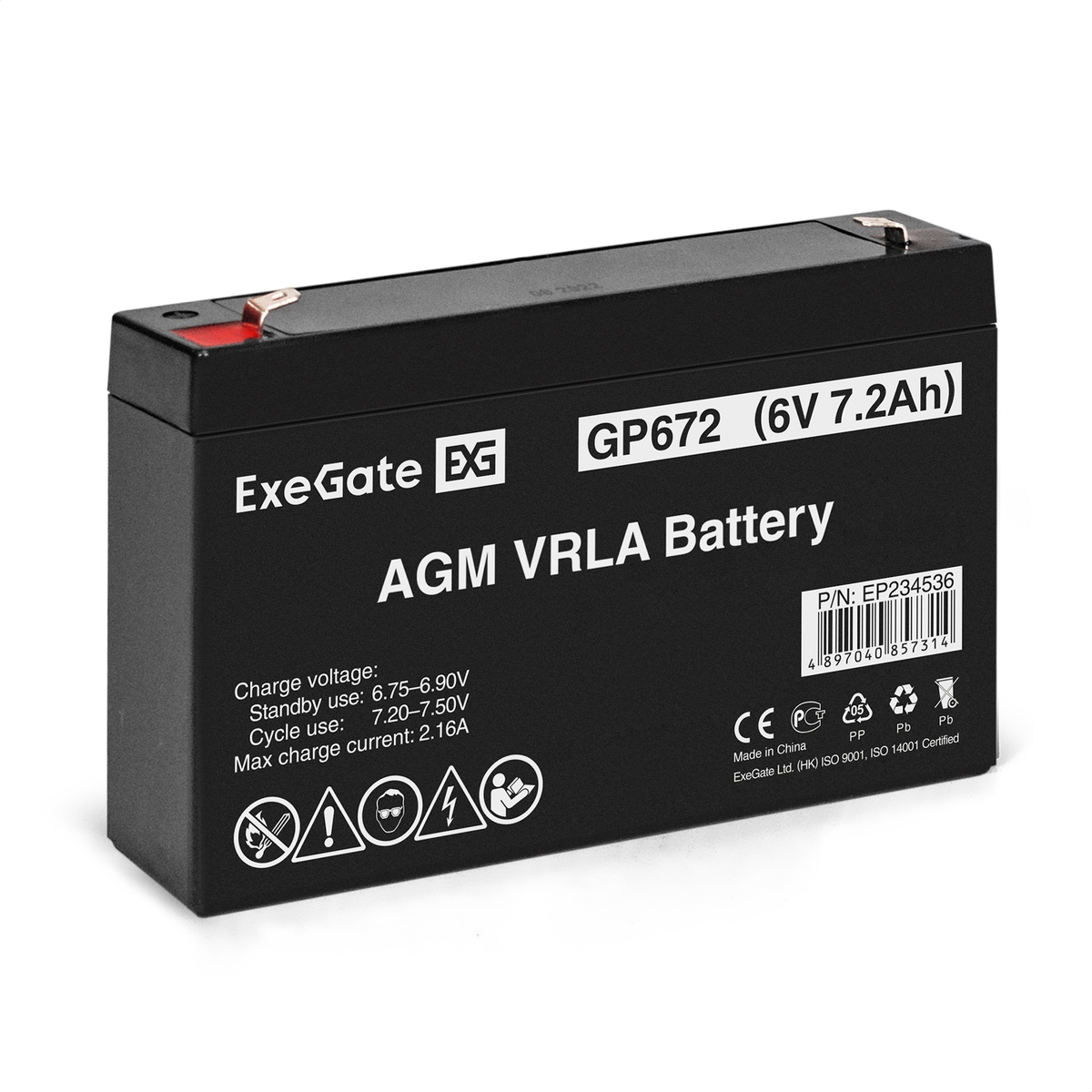

Battery ExeGate GP672

Battery ExeGate GP672
Battery ExeGate GP672
Battery ExeGate GP672
Battery ExeGate GP672
ExeGate GP series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging mode (buffer mode) or discharge-charge mode (cyclic mode).

The case is made of plastic that does not support Gorenje. Internal gas recombination system, does not require adding water. Operation is allowed in any position other than upside down. Calcium-doped lead plates provide high energy density. Double sealing of brands.

Specification

AppointmentFor UPS
Supply voltage, W6
Battery capacity, Ah7,2
Standards and certificationsDeclaration of conformity GOST 12.2.007.12-88;
GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10;
GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4
Battery Life
In buffered mode6 years (at 25C)
In cyclic mode260 cycles at 100% depth of discharge
Number of charge-discharge cycles in cyclic mode at 100% discharge260
Self-discharge3% per month at 20C
Charge methodConstant voltage charge (25C)
Cyclic mode2.4 - 2.5 V / cell
Buffer mode2.27 - 2.3 V / cell
Internal resistance of a fully charged battery (25C), m?20
Cabinet materialABS plastic
Temperature modes
Storagefrom -35C to + 60C
Chargefrom -10C to + 60C
Dischargefrom -20C to + 60C
Warranty12 months if operating conditions are observed
Terminal typeF1
Maximum discharge current (25 C)115A(5c)
Height with terminal, mm100
Delivery setBattery
Product size, mm151x34x94
Weight, kg1,15
P/NEP234536
EAN4897040857314
