Series GP

Series GP

Description ExeGate GP series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging mode (buffer mode) or discharge-charge mode (cyclic mode).
Features The case is made of plastic that does not support Gorenje. Internal gas recombination system, does not require adding water. Operation is allowed in any position other than upside down. Calcium-doped lead plates provide high energy density. Double sealing of brands.
Standards and certifications Declaration of conformity GOST 12.2.007.12-88;
GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10;
GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4
Battery Life
In buffered mode 6 years (at 25C)
In cyclic mode 260 cycles at 100% depth of discharge
Number of charge-discharge cycles in cyclic mode at 100% discharge 260
Self-discharge 3% per month at 20C
Charge method Constant voltage charge (25C)
Cyclic mode 2.4 - 2.5 V / cell
Buffer mode 2.27 - 2.3 V / cell
Cabinet material ABS plastic
Temperature modes
Storage from -35C to + 60C
Charge from -10C to + 60C
Discharge from -20C to + 60C
Warranty 12 months if operating conditions are observed

Model Weight, kg Terminal type Supply voltage, V Battery capacity, Ah Maximum discharge current (25C) Length, mm Width, mm Height, mm Height with terminal, mm P/N EAN
GP645 (6V 4.5Ah) 0,74 F1 6 4,5 90A(5s) 70 48 102 107 EX282948 4895205115361
GP672 (6V 7.2Ah) 1,15 F1 6 7,2 115A(5s) 151 34 94 100 EP234536 4897040857314
GP6120 (6V 12Ah) 1,7 F1 6 12 170A(5s) 151 50 94 100 EX282954 4895205115422
GP12013 (12V 1.3Ah) 0,53 F1 12 1,3 20A(5s) 97 45 50 58 EP269857 4897040857888
GP12045 (12V 4.5Ah) 1,52 F1 12 4,5 73A(5s) 90 70 101 107 EX282960 4895205115484
GP1272 (12V 7.2Ah) 2,24 F2 12 7,2 110A(5s) 151 65 94 100 EX282964 4895205115521
GP12075 (12V 7.5Ah 1227W) 2,26 F2 12 7,5 125A(5s) 151 65 94 100 EP234538 4897040857338
GP12120 (12V 12Ah 1251W) 3,55 F2 12 12 170A(5s) 151 98 95 101 EP160757 4897040852395

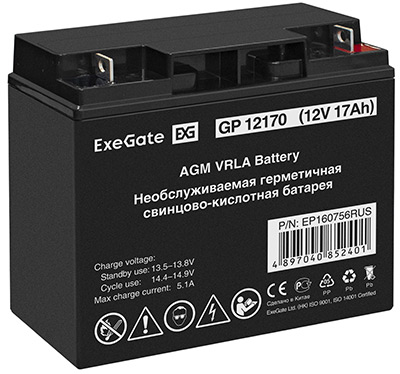

GP12170 (12V 17Ah) 5,46 F3 12 17 245A(5s) 181 77 167 167 EP160756 4897040852401
GP12260 (12V 26Ah) 8,15 for M5 bolt 12 26 330A(5s) 175 166 125 125 EX282972 4895205115606
GP12400 (12V 40Ah) 13,6 for M5 bolt 12 40 545A(5s) 196 166 171 171 EX282978 4895205115668
GP12650 (12V 65Ah) 21,5 for M6 bolt 12 65 700A(5s) 350 167 178 178 EX282981 4895205115699
GP121000 (12V 100Ah) 31 for M6 bolt 12 100 115A(5s) 330 213 173 173 EX282986 4895205115743
