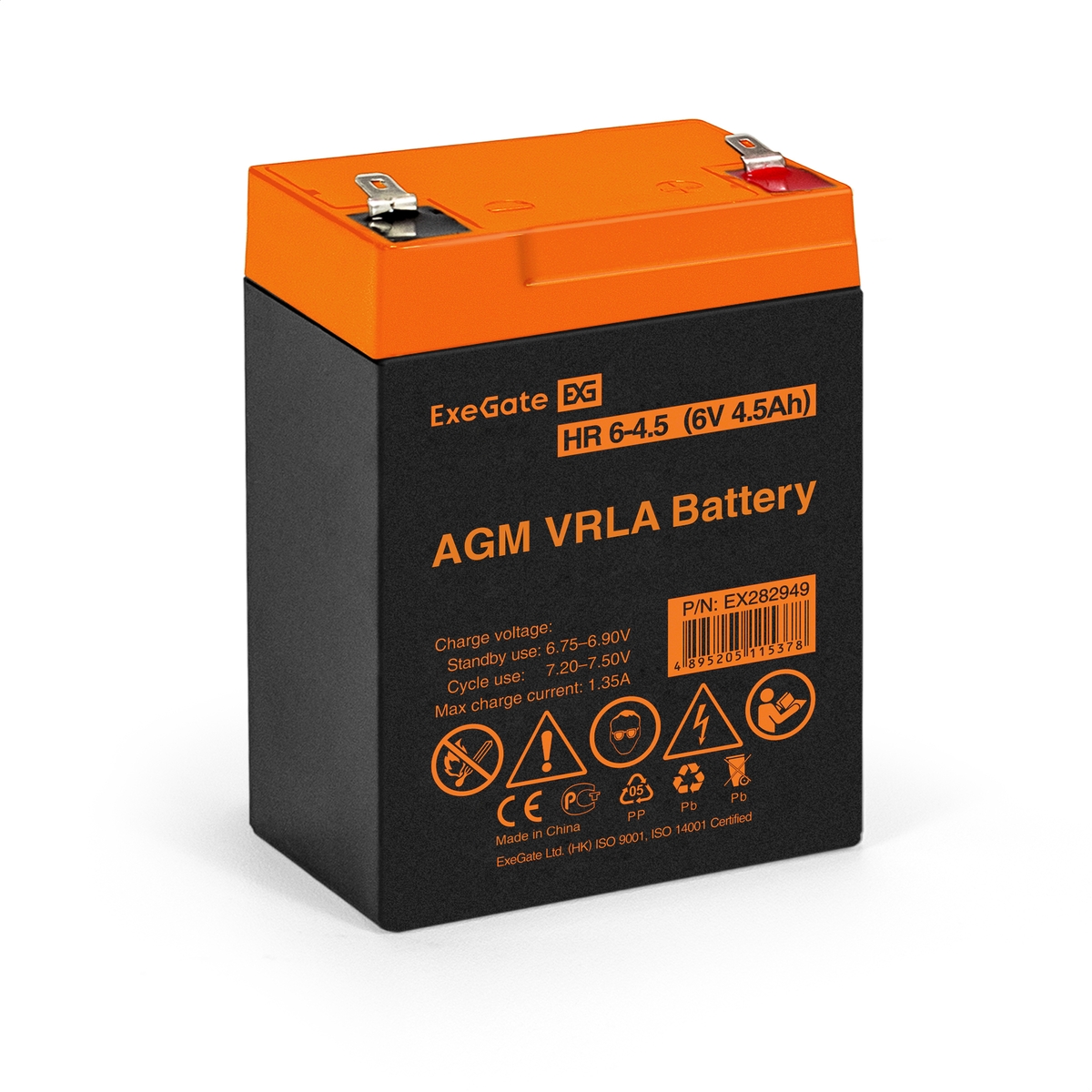

Battery ExeGate HR 6-4.5
ExeGate HR series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging or discharge-charge modes. Excellent discharge characteristics at short discharge times.
The battery case is made of ABS UL94-HB plastic, which does not support Gorenje. Fully sealed design that eliminates electrolyte leakage. Internal gas recombination system, no need to add water.
SpecificationThe battery case is made of ABS UL94-HB plastic, which does not support Gorenje. Fully sealed design that eliminates electrolyte leakage. Internal gas recombination system, no need to add water.
Appointment | For UPS |
Voltage, V | 6 |
Battery capacity, Ah | 4,5 |
Standards and certifications | Declaration of conformity GOST 12.2.007.12-88; GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10; GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4 |
Battery Life | |
In buffered mode | 8 years (at 25°C) |
Number of charge-discharge cycles in cyclic mode at 100% discharge | 260 |
Self-discharge | 3% per month at 20°C |
Charge method | Constant voltage charge (25°C) |
Cyclic mode | 2.35 - 2.4 V / cell |
Buffer mode | 2.25 - 2.3 V / cell |
Internal resistance of a fully charged battery (25°C), m? | 25 |
Cabinet material | ABS plastic |
Temperature modes | |
Storage | from -35°C to + 60°C |
Charge | from -10°Cto + 60°C |
Discharge | from -20°C to + 60°C |
Warranty | 12 months if operating conditions are observed |
Terminal type | F1 |
Maximum discharge current (25 ° C) | 70A(5c) |
Height with terminal, mm | 107 |
Delivery set | Battery |
Product size, mm | 70x47x101 |
Weight, kg | 0,77 |
P/N | EX282949 |
EAN | 4895205115378 |
