Series HR
 |
Series HR |
| Description | ExeGate HR series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging or discharge-charge modes. Excellent discharge characteristics at short discharge times. |
| Features | The battery case is made of ABS UL94-HB plastic, which does not support Gorenje. Fully sealed design that eliminates electrolyte leakage. Internal gas recombination system, no need to add water. |
| Standards and certifications | Declaration of conformity GOST 12.2.007.12-88; GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10; GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4 |
| Battery Life | |
| In buffered mode | 10-12 years (at 25°C) |
| Cyclic mode | - |
| Number of charge-discharge cycles in cyclic mode at 100% discharge | 260 |
| Self-discharge | 3% per month at 20°C |
| Charge method | Constant voltage charge (25°C) |
| Cyclic mode | 2.35 - 2.4 V / cell |
| Buffer mode | 2.25 - 2.3 V / cell |
| Cabinet material | ABS plastic |
| Temperature modes | |
| Storage | from -35°C to + 60°C |
| Charge | from -10°C to + 60°C |
| Discharge | from -20°C to + 60°C |
| Warranty | 12 months if operating conditions are observed |
| Model | Weight, kg | Terminal type | Supply voltage, V | Battery capacity, Ah | Maximum discharge current (25°C) | Length, mm | Width, mm | Height, mm | Height with terminal, mm | P/N | EAN |
| HR 6-4.5 (6V 4.5Ah) | 0,77 | F1 | 6 | 4,5 | 70A(5s) | 70 | 47 | 101 | 107 | EX282949 | 4895205115378 |
| HR 6-7.2 (6V 7.2Ah) | 1,16 | F1 | 6 | 7,2 | 115A(5s) | 151 | 34 | 94 | 100 | EX285651 | 4895205121874 |
| HR 6-9 (6V 9Ah) | 1,35 | F1 | 6 | 9 | 140A(5s) | 151 | 34 | 94 | 100 | EX285851 | 4895205122000 |
| HR 6-9 (6V 9Ah, 634W) | 1,35 | F2 | 6 | 9 | 140A(5s) | 151 | 34 | 94 | 100 | EX282953 | 4895205115415 |
| HR 6-12 (6V 12Ah) | 1,77 | F1 | 6 | 12 | 180A(5s) | 151 | 50 | 94 | 100 | EX282955 | 4895205115439 |
| HR 6-12 (6V 12Ah) | 1,77 | F2 | 6 | 12 | 180A(5s) | 151 | 50 | 94 | 100 | EX297509 | 4895205174818 |
| HR 12-4.5 (12V 4.5Ah) | 1,64 | F1 | 12 | 4,5 | 70A(5s) | 90 | 70 | 101 | 107 | EX282961 | 4895205115491 |
| HR 12-4.5 (12V 4.5Ah) | 1,64 | F2 | 12 | 4,5 | 70A(5s) | 90 | 70 | 101 | 107 | EX285637 | 4895205121713 |
| HR 12-5 (12V 5Ah 1221W) | 1,72 | F1 | 12 | 5 | 80A(5s) | 90 | 70 | 101 | 107 | EX285949 | 4895205122888 |
| HR 12-5 (12V 5Ah 1221W) | 1,72 | F2 | 12 | 5 | 80A(5s) | 90 | 70 | 101 | 107 | EP211732 | 4897040854894 |
| HR 1221W (12V 5Ah) | 1,76 | F2 | 12 | 5 | 80A(5s) | 90 | 70 | 101 | 107 | EX285950 | 4895205122895 |
| HR 12-5.8 (12V 5.8Ah 1223W) | 1,77 | F1 | 12 | 5,8 | 80A(5s) | 90 | 70 | 101 | 107 | EX282962 | 4895205115507 |
| HR 12-5.8 (12V 5.8Ah 1223W) | 1,76 | F2 | 12 | 5,8 | 80A(5s) | 90 | 70 | 101 | 107 | EX285951 | 4895205122901 |
| HR 12-6 (12V 6Ah 1224W) | 1,75 | F2+F1- | 12 | 6 | 87A(5s) | 151 | 51 | 98 | 100 | EX288653 | 4895205126367 |
| HR 12-7.2 (12V 7.2Ah) | 2,25 | F2 | 12 | 7,2 | 110A(5s) | 151 | 65 | 94 | 100 | EX282965 | 4895205115538 |
| HR 12-7.5 | 2,37 | F2 | 12 | 7,5 | 120A(5s) | 151 | 65 | 94 | 100 | EX285638 | 4895205121720 |
| HR 12-9 (12V 9Ah 1234W) | 2,52 | F2 | 12 | 9 | 140A(5s) | 151 | 65 | 94 | 100 | EP129860 | 4897040852425 |
| HR 1234W (12V 9Ah) | 2,57 | F2 | 12 | 9 | 135A(5s) | 151 | 65 | 94 | 100 | EX285953 | 4895205122925 |
| HR 12-12 (12V 12Ah 1251W) | 3,64 | F2 | 12 | 12 | 185A(5s) | 151 | 98 | 95 | 101 | EX282968 | 4895205115569 |

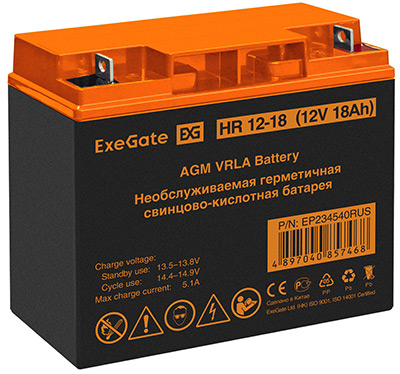

| HR 12-18 (12V 18Ah) | 5,42 | F3 | 12 | 18 | 240A(5s) | 181 | 77 | 167 | 167 | EP234540 | 4897040857468 |
| HR 12-26 (12V 26Ah) | 9,25 | for M5 bolt | 12 | 26 | 330A(5s) | 166 | 125 | 175 | 175 | EX282973 | 4895205115613 |
| HR 12-33 (12V 33Ah) | 11,40 | for M6 bolt | 12 | 33 | 400A(5s) | 195 | 130 | 164 | 178 | EX282975 | 4895205115637 |
| HR 12-40 (12V 40Ah) | 14,5\80 | for M6 bolt | 12 | 40 | 470A(5s) | 198 | 166 | 170 | 170 | EX282979 | 4895205115675 |
| HR 12-65 (12V 65Ah) | 23,20 | for M6 bolt | 12 | 65 | 670A(5s) | 350 | 167 | 179 | 179 | EX282982 | 4895205115705 |
| HR 12-75 (12V 75Ah) | 24,10 | for M6 bolt | 12 | 75 | 890A(5s) | 260 | 168 | 219 | 219 | EX282984 | 4895205115729 |
| HR 12-100 (12V 100Ah) | 33,20 | for M6 bolt | 12 | 100 | 930A(5s) | 333 | 173 | 216 | 222 | EX282987 | 4895205115750 |
| HR 12-120 (12V 120Ah) | 38,30 | for M8 bolt | 12 | 120 | 1100A(5s) | 406 | 172 | 223 | 228 | EX282989 | 4895205115774 |
