Series PS

Case TypeMiditower
Chassis MaterialSteel
PSU TypeATX
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
HDD Enclosure
Accessories

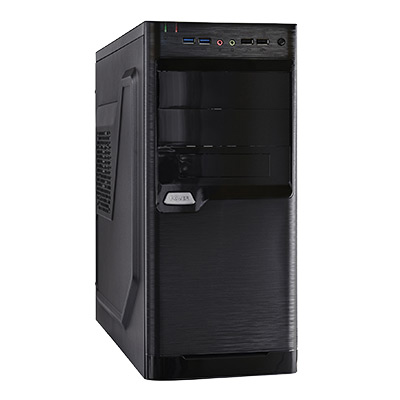

Model PS-115U
PS-115U

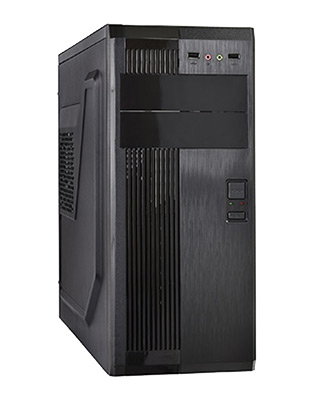

PS-119
PS-119
Cases Features
Material Thickness, mm0.70.7
Motherboard SupportATXATX
Screwless accessYesYes
Number of screws for mounting the side panel, pcs44
Hinge For The LockYesYes
Removable AdaptersYes-
External 5,25" Drive Bay11
External 3,5" Drive Bay11
Internal 3,5" Drive Bay55
Internal 2,5" Drive Bay11
Interfaces
Front I/O PortsAudio 2 x 3.5mm (AC97)Audio 2 x 3.5mm (AC97)
USB22
Interface locationAt the top of the front panelAt the top of the front panel
Expansion Slots66
Fan Support:
Rear Panel8 cm x 2 or 9,2 cm x 18 cm x 2 or 9,2 cm x 1
Side Panel8 cm x 1 or 12 cm x 18 cm x 1 or 12 cm x 1
PSU models*UN400, UN450, UN500UN400, UN450, UN500
Power supply locationAt the top of the rear sideAt the top of the rear side
Fan of PSU1212
Max. motherboard length, mm244244
Max. height of the CPU fan, mm140140
Max. PSU length, mm240240
Max. PSU length with drive opposite, mm210210
Max. SVGA length, mm242242
Max. SVGA length with drive opposite, mm200200
Case ColorBlackBlack
Chassis ColorBlackBlack
Chassis dimensions
Width, mm175175
Height, mm408408
Depth, mm380380
Case Dimensions
Width, mm180180
Height, mm410410
Depth, mm420420
Carton Dimensions
Width, mm210210
Height, mm450450
Depth, mm460460
Net Weight , kg5.15.1
PSU models, PN/EAN
w/o PSUEX282187
4895205115095
EX282191
4895205115101
400WEX282188
4895205114975
EX282192
4895205115002
450WEX282189
4895205114982
EX282193
4895205115019
500WEX282190
4895205114999
EX282194
4895205115026
* At a customer's request Computer Cases can be completed with any PSU
