USB Controllers

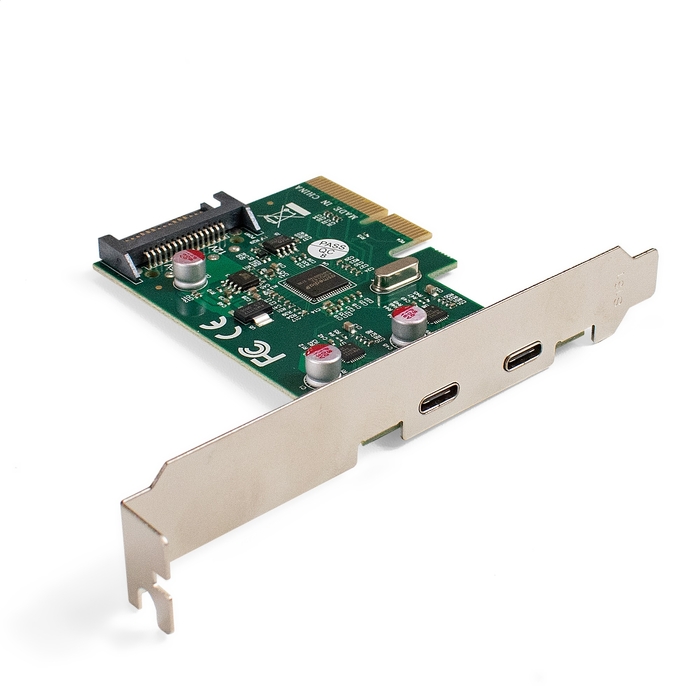

Model | ![]() EXE-313 |

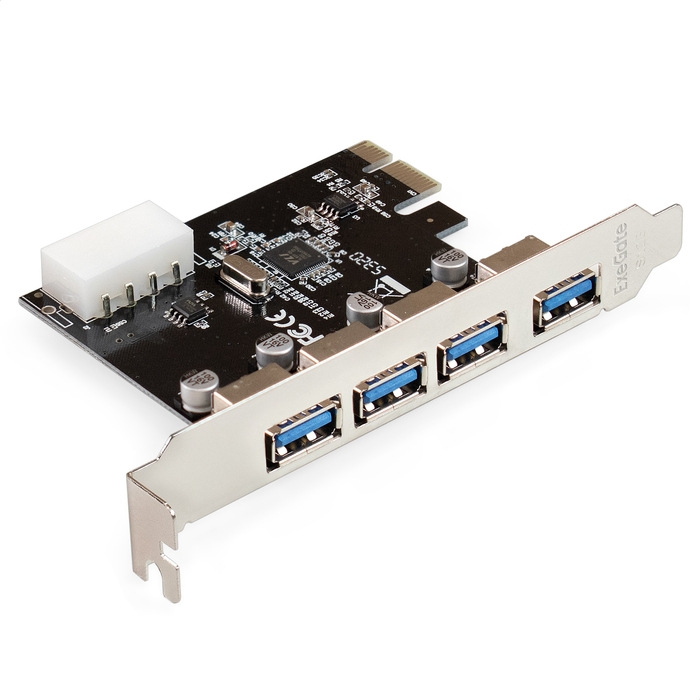

![]() EXE-314 |

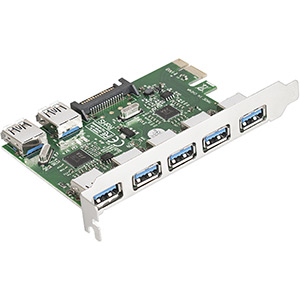

![]() EXE-317 |

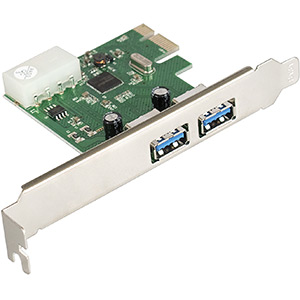

![]() EXE-319 |

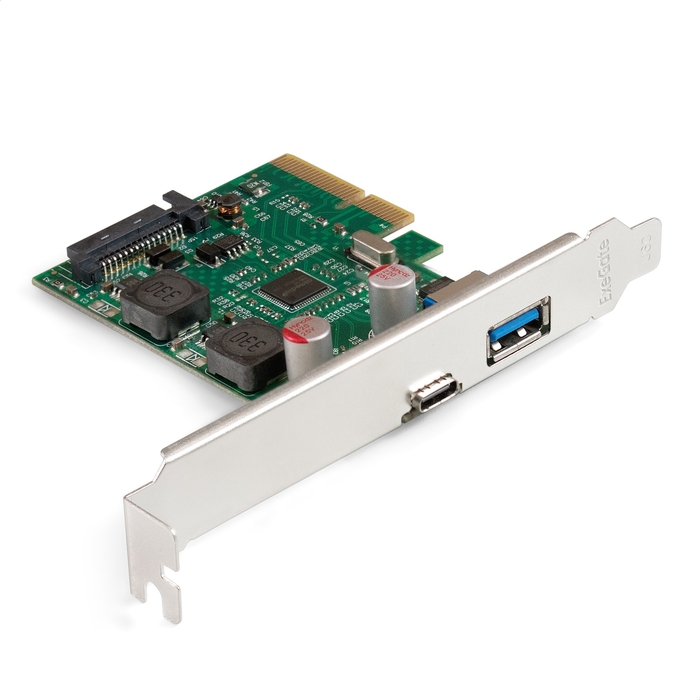

![]() EXE-323 |

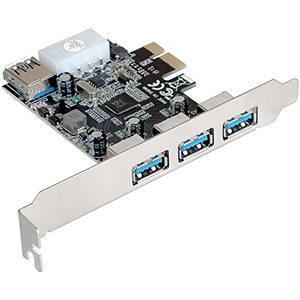

![]() EXE-367 |

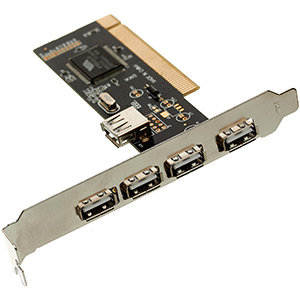

![]() EXE-352 |
Overview | ASM1142 USB3.1 Type C + A expansion card converts the computer's PCIe high-speed data transfer interface into USB 3.1 Type-A and USB 3.1 USB-C high-speed data transfer interface, and is backward compatible with USB 3.0, USB 2.0 and The USB 1.1 device, with a maximum transfer speed of 10 Gbps, supports the hot-swap function of USB devices and is designed to provide faster and higher speeds for personal computers, consumer electronics and communication devices. | Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. | Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. | Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. | Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. | Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. | Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. |
Controller | ASM1142 | VL805 | VL805+VL812 | ASM1042 | VL805 | VL805 | VT6212L |
Bus interface | PCI-Express 2.0 | PCI-Express 2.0 | PCI-Express 2.0 | PCI-Express 2.0 | PCI-Express 2.0 | PCI-Express 2.0 | PCI 2.2 |
External Connector | USB 3.1 USB Type-A port + 2 x Type-C port | USB 3.0 USB x 4 | USB 3.0 x 5 | USB 3.0 x 2 | USB 3.0 x 2 pcs. + USB 3.1 Type-C x 1 pcs | USB 3.0 x 3 | USB 2.0 x 4 |
Internal Connector | No | No | USB 3.0 x 2 | No | No | USB 3.0 x 1 | USB 2.0x 1 |
Supports USB data transfer rate | Super Speed+ (10Gpbs), Super Speed(5Gpbs), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) | Super Speed(5Gpbs), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) | Super Speed(5Gpbs), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) | Super Speed(5Gpbs), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) | Super Speed+ (10Gpbs), Super Speed(5Gpbs), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) | Super Speed(5Gpbs), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps)" | High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) |
Plug&Play | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Power | SATA 15PIN | SATA 15PIN | SATA 15PIN | SATA 15PIN | SATA 15PIN | SATA 15PIN | No |
Support device remote wakeup function from USB keyboard or mouse | Yes | No | No | No | Yes | No | No |
Support device remote wakeup function from USB keyboard or mouse. | Yes | No | No | No | Yes | No | No |
Hot-swapping feature allows connect/disconnect device without powering down the system. | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
System | Windows 10, Windows 8, Windows 7, Windows XP, Windows 2000, Windows Server 2008, Windows Server 2003, Windows ME, Windows 98, Windows NT, Linux, DOS | ||||||
Packing size, mm | 110x20x80 | 120x20x70 | 120x20x80 | 120x20x70 | 120x20x70 | 120x20x80 | 120x20x120 |
Weight, g | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
P/N | EX283715 | EX283716 | EX283717 | EX283718 | EX283719 | EX283720 | EX281227 |
EAN | 4895205117341 | 4895205117358 | 4895205117365 | 4895205117372 | 4895205117389 | 4895205117396 | 4895205111899 |
