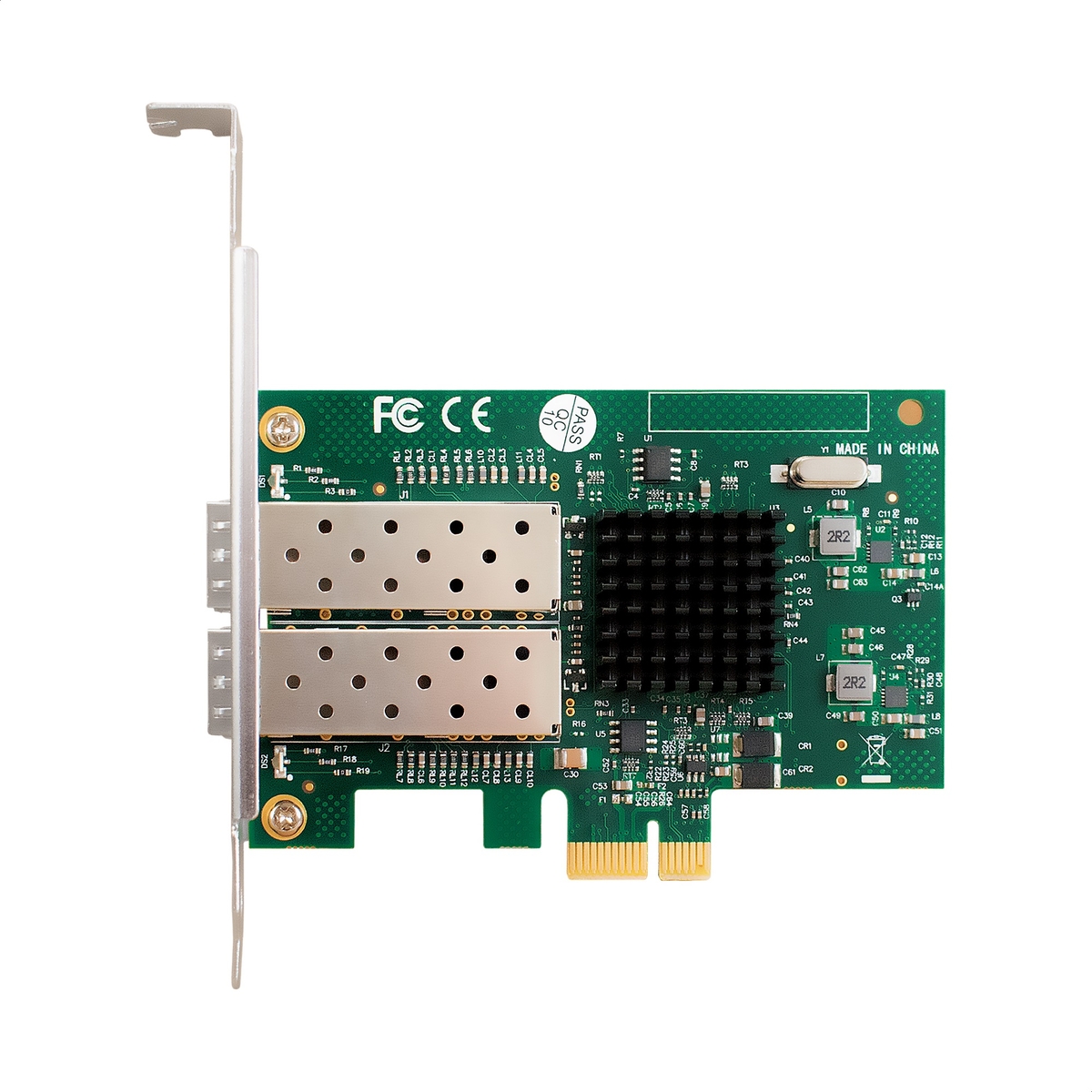

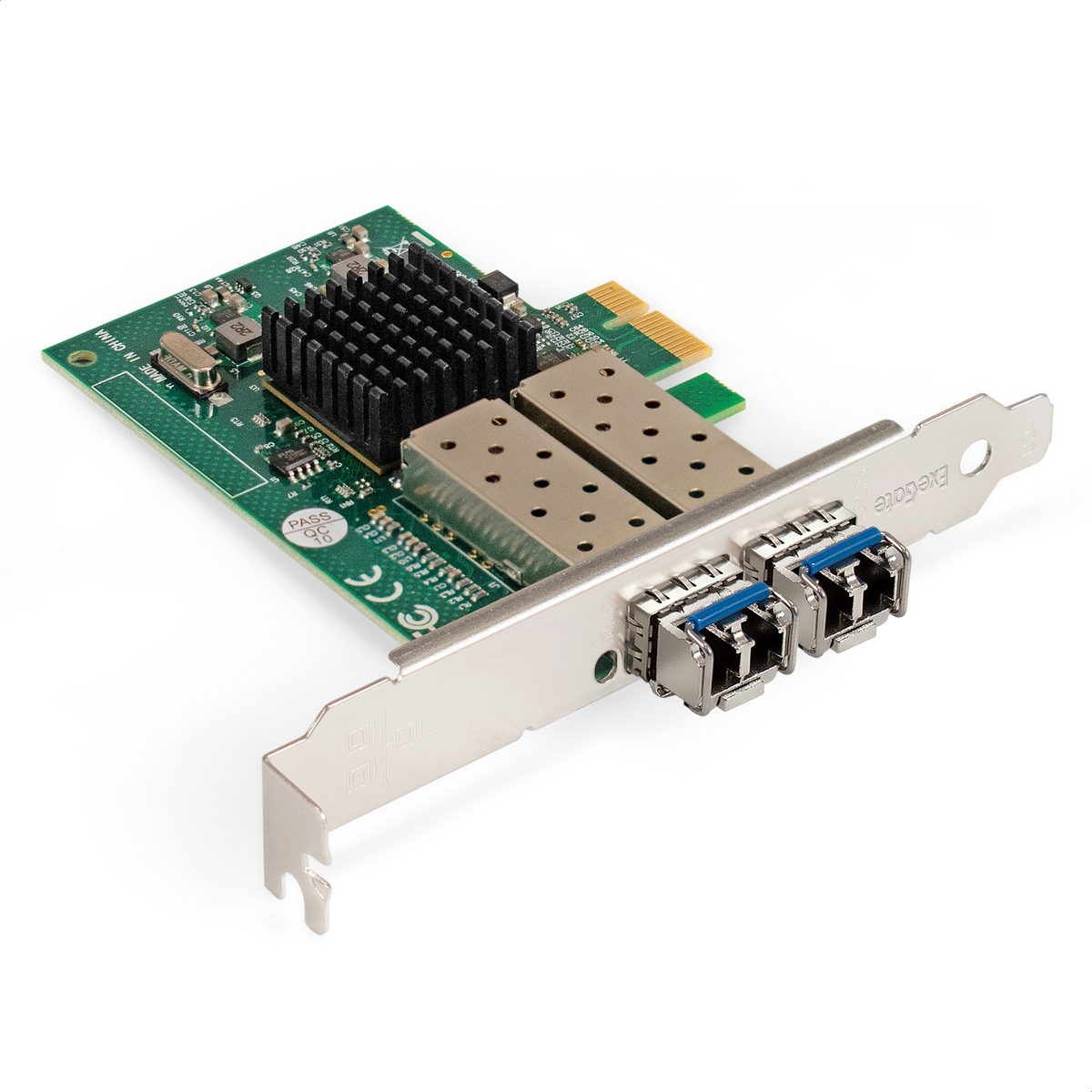

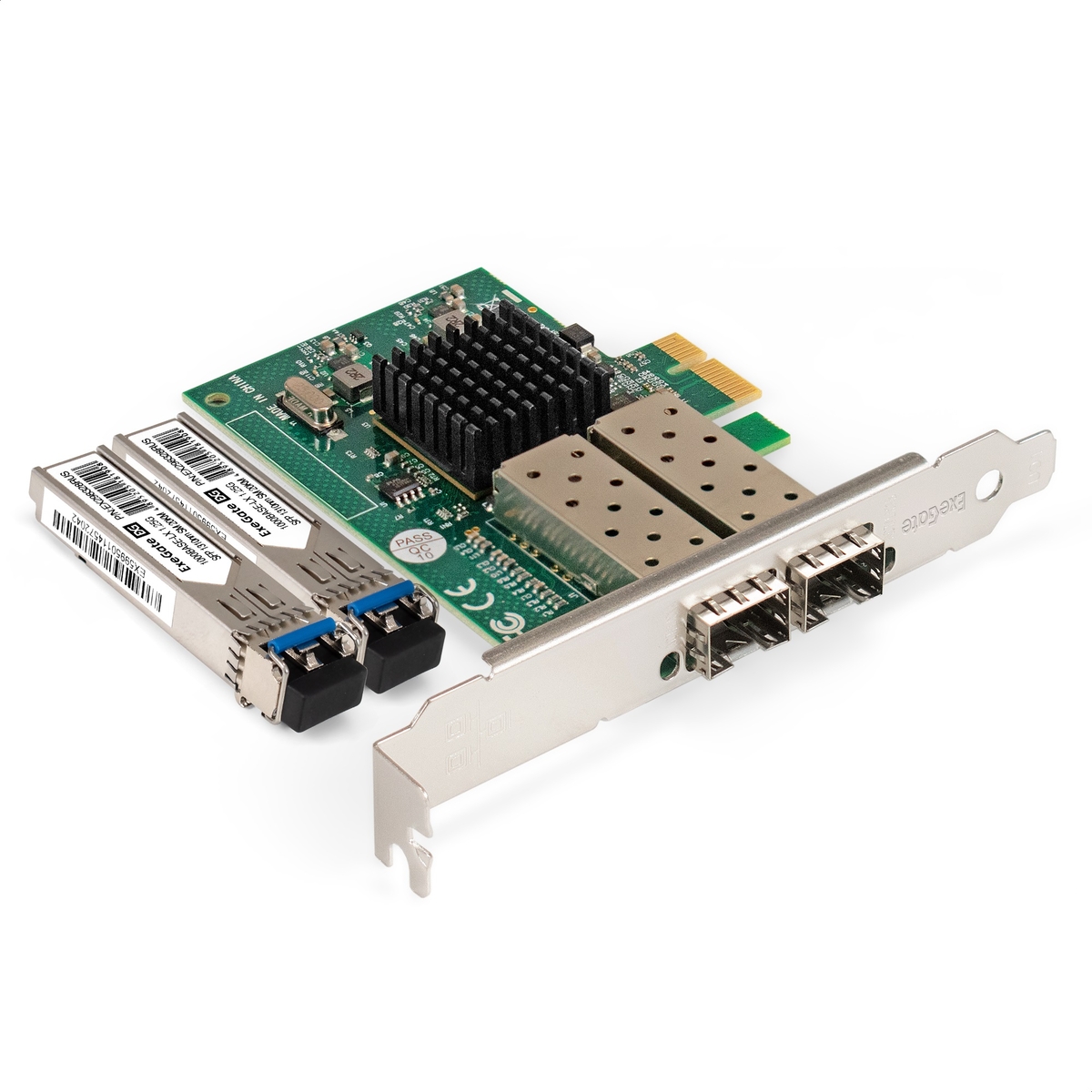

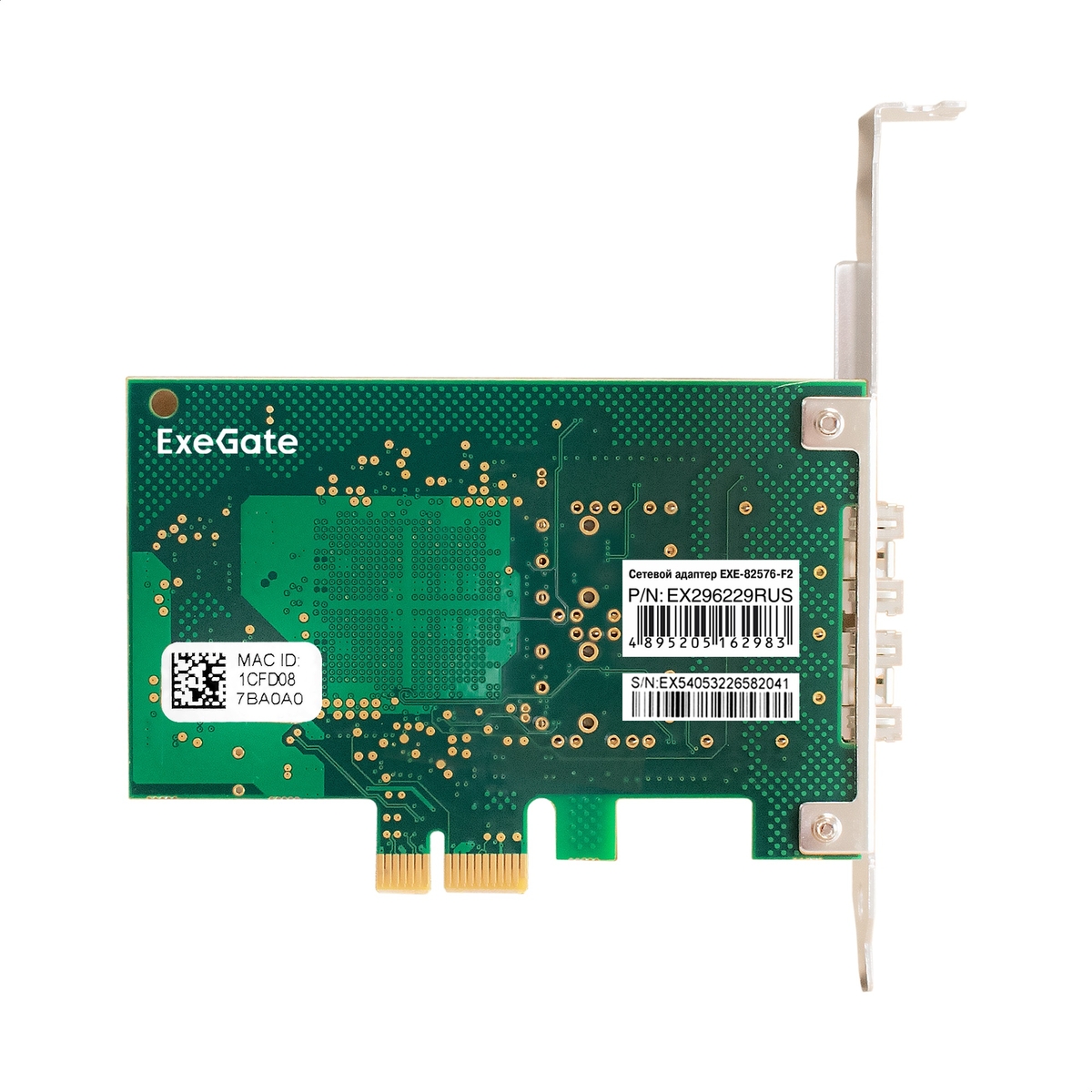

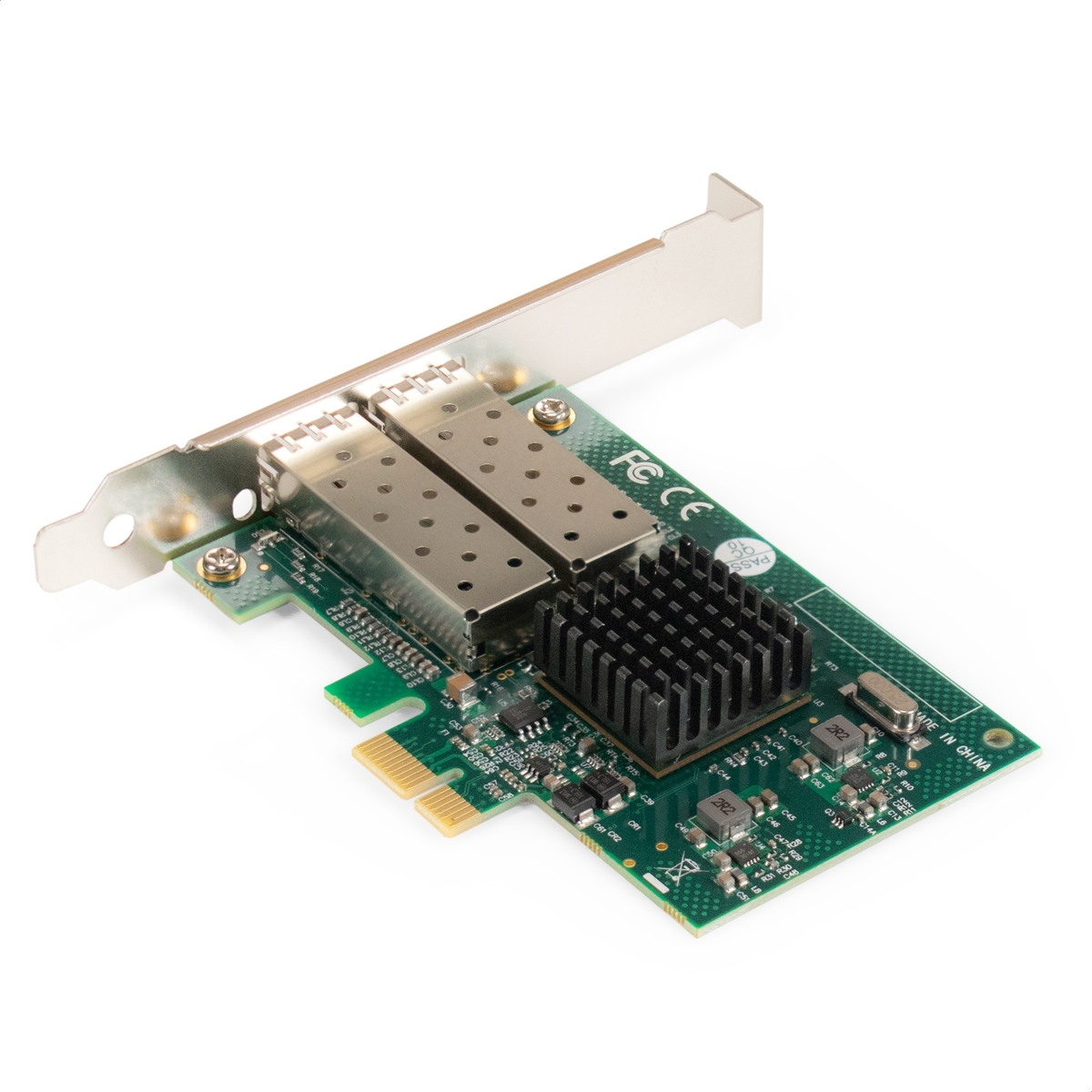

Set ExeGate EXE-82576-F2 + 2xTransceiver EXT-1G-SM1310-LC2-20KM
| Modification | P/N | EAN |
| EX296229 | 4895205162983 | |
| EX298937 | 4895205185333 | |
| EX299088 | ||
| EX298938 | 4895205185340 | |
| EX299087 |
Specification
| Gigabit NIC | |
| Type | Ethernet NIC |
| Chipset | Intel JL82576EB |
| Interface | PCIe x1 v2.0 |
| External Interface | SFP |
| Number of connectors | 2 |
| IEEE Standards | Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Transmission rate | 1000/100/10M |
| Support Wake-on-LAN | Yes |
| Storage Ethernet | iSCSI, NFS |
| System | Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, Windows Server 2022, Linux |
| Sertification | FCC, CE, RoHS |

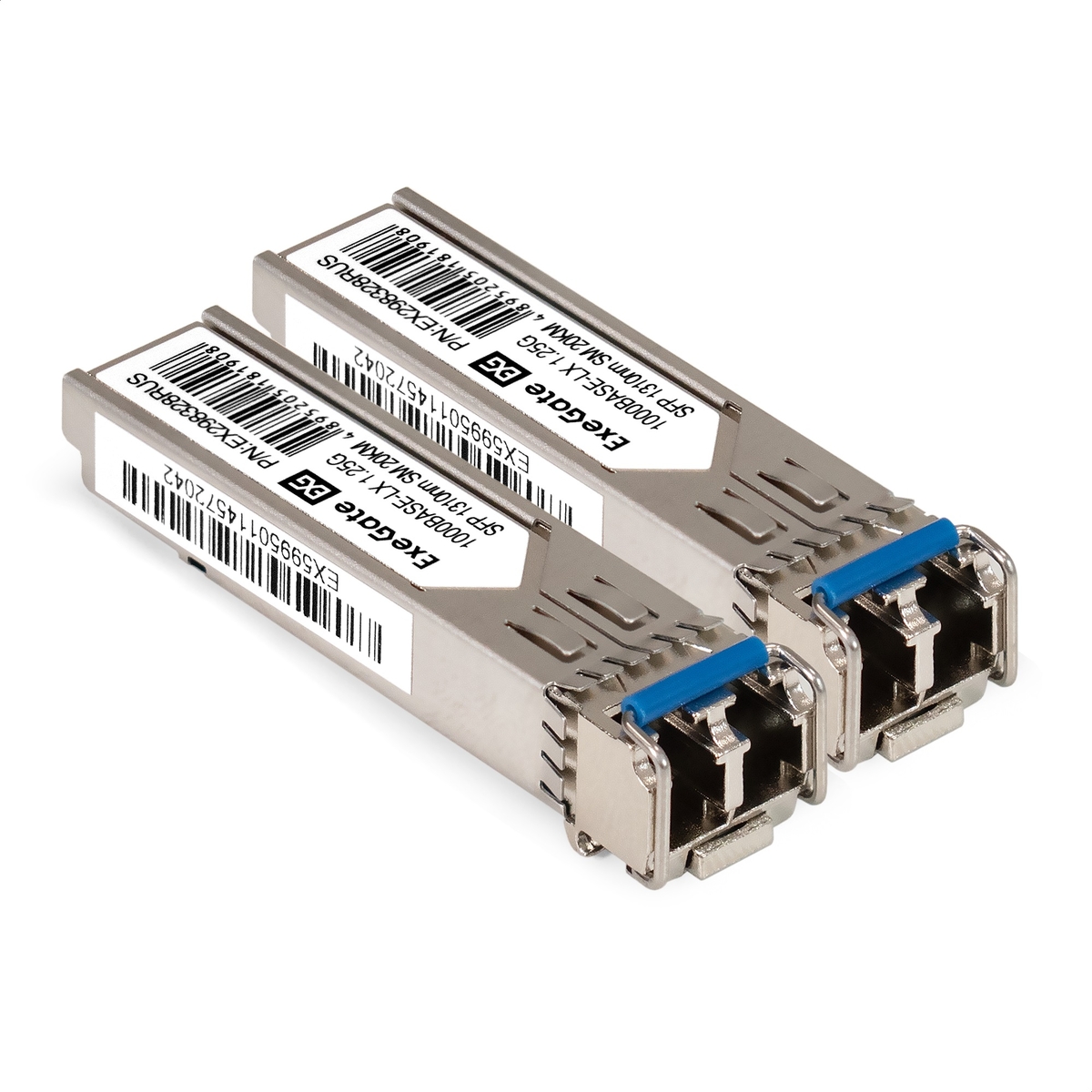

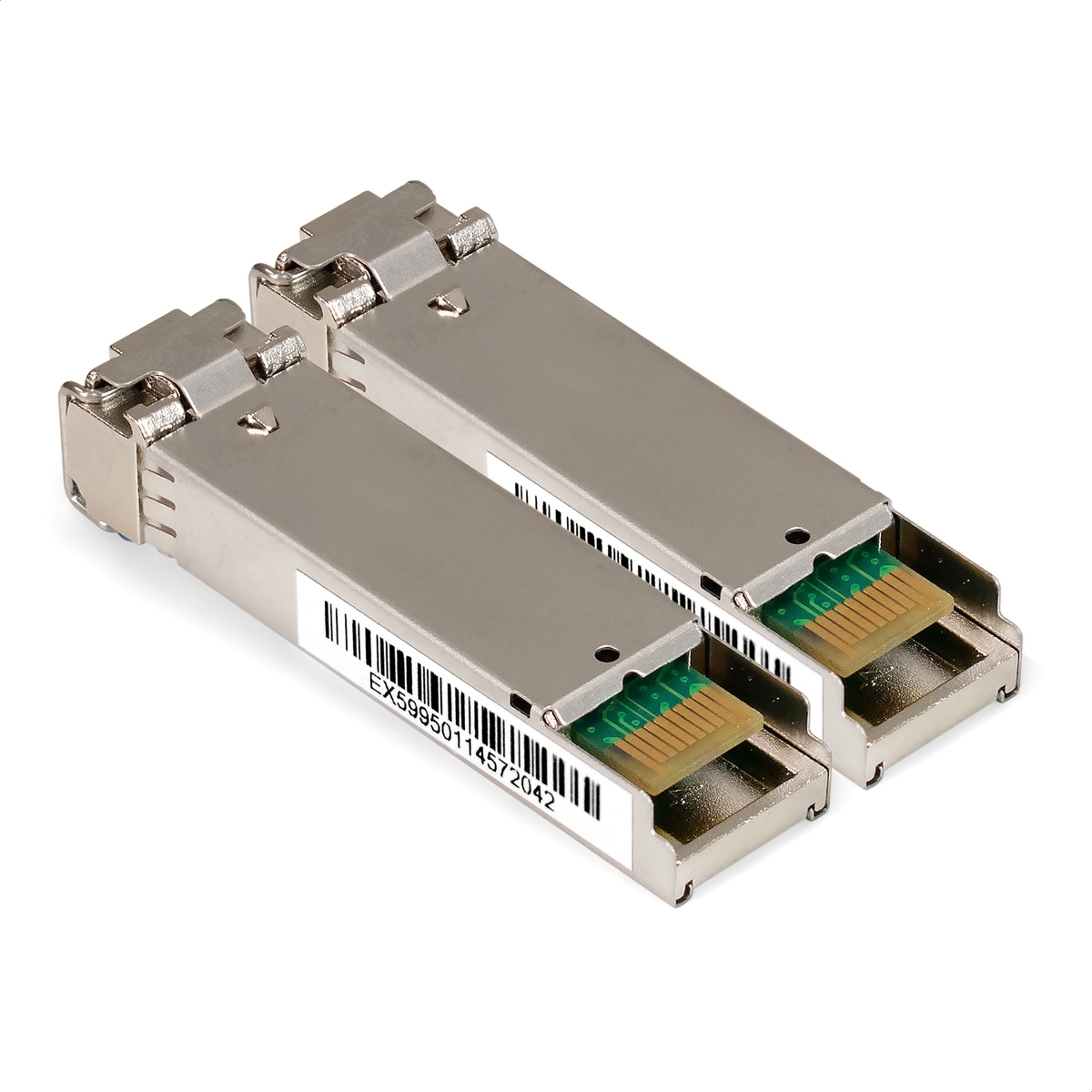

| Transceiver | |
| Fiber Media Support | Single-Mode |
| Maximum Distance Capacity | 20km |
| Hot Pluggable | Yes |
| DDM (Digital Diagnostics Monitoring) | Yes |
| MSA Compliant | Yes |
| Speed | 1.25 Gbps |
| Connector | Duplex LC/UPC connector |
| Single/Bi Direction | Single-direction |
| Wavelength | 1310 nm |
| Output Optical Power (TX Optical Power) | -9~-3dBm |
| Input Optical Power (RX Optical Power) | -17~-3dBm |
| Sensitivity | -17dBm |
| Cable Type | Single-mode optical cable 9/125 microns |
| Power / Maximum Input Current | 3.3 V: 300 mA |
| EMI | CE, FCC, VCCI, UL, TUV, CDRH |
| Other | |
| Operating Temperature | 0~+75 °C |
| Storage Temperature | -40~+85 °C |
| Storage humidity | 5 ~ 95 % |

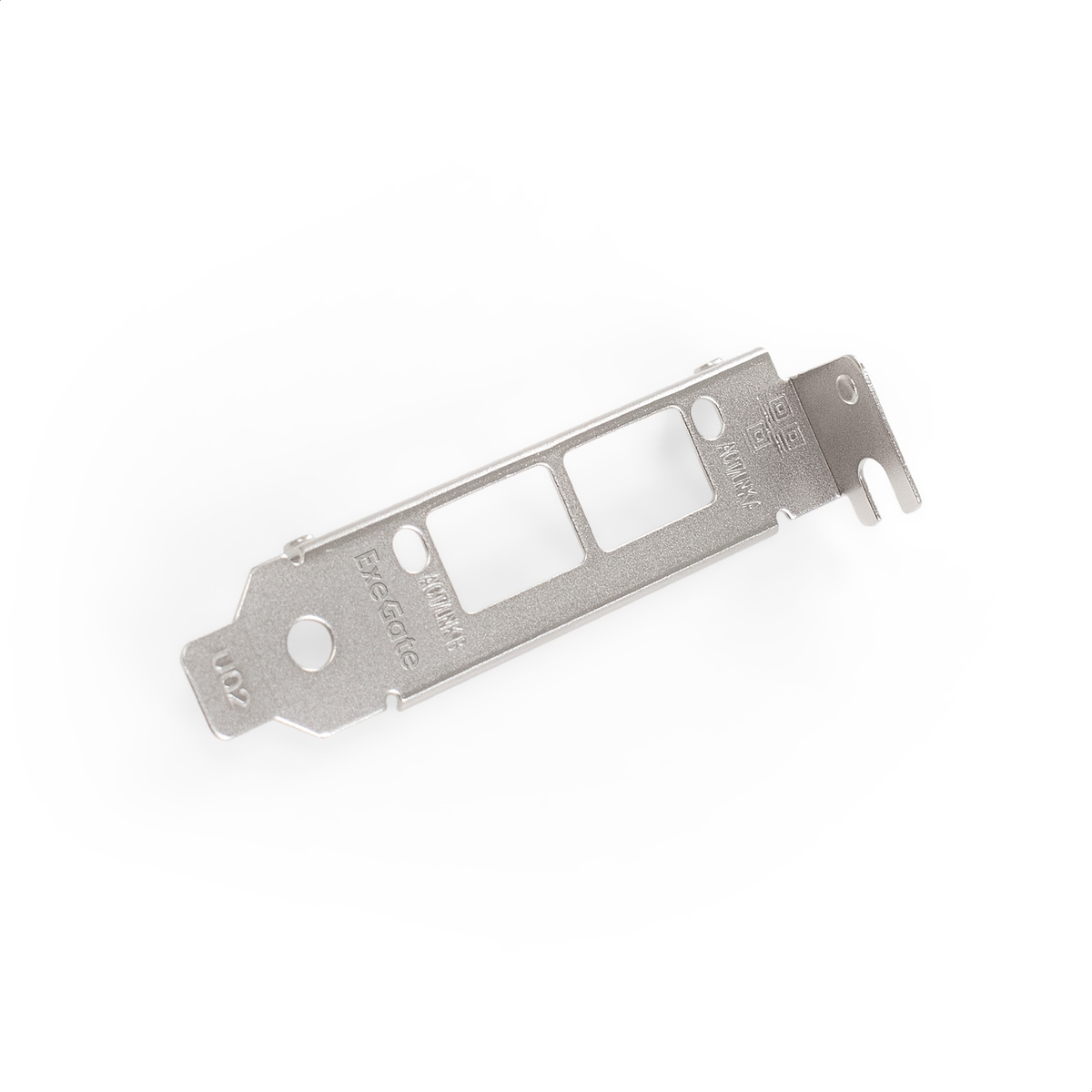

| Delivery set | Network card, Low-Profile strip, transceivers |
| Driver |  Download |
