LAN adapters

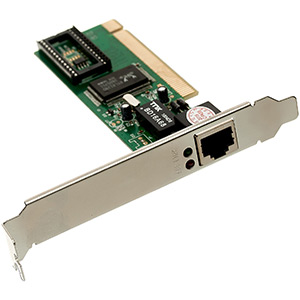

| Model |  LAN adapter EXE-520 PCI 10/100Mbps |
 LAN adapter EXE-560 PCI Express 10/100/1000Mbps |

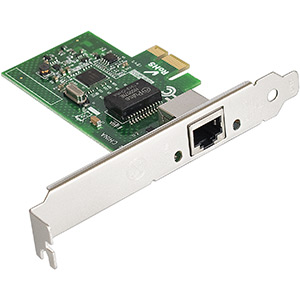

 LAN adapter EXE-i210AT PCI Express 2.0 10/100/1000Mbps |
| Overview | Network Card provide Internet access through an Ethernet cable with an RJ-45 connector. | Network Card provide Internet access through an Ethernet cable with an RJ-45 connector | Network Card provide Internet access through an Ethernet cable with an RJ-45 connector. Integrates into the motherboard . Provides high-speed data transfer up to 1 Gbit / s. in single-duplex mode. |
| Interface | PCI | PCI Express | PCI Express 2.1 (2.5GT/s) |
| Chip | Realtek RTL8139D | Realtek RTL8111C | Intel(R) I210AT |
| Data Rate, Mbps | 10/100 | 10/100/1000 | 10/100/1000 |
| RJ-45 connector | 1 | 1 | 1 |
| Support | IEEE 802.3x | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3x (Flow Control), IEEE 802.3ab, IEEE 802.3az-2010, IEEE 802.1P, 802.1Q VLAN, MSI, MSI-X, RSS | IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T, IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az |
| Support Wake-on-LAN/td> | Yes | Yes | Yes |
| Supports LED pins for various network activity indications | Yes | Yes | Yes |
| P/N | EX281223 | EX281224 | EX283723 |
| EAN | 4895205111868 | 4895205111875 | 4895205117402 |
| Model |  Cotroller EXE-361 PCI-E 2.0, 3*USB3.0ext + LAN UTP 1000Mbps (OEM) |
 Cotroller EXE-362 PCI-E 2.0, 2*USB3.0ext + 1*USB3.0int + LAN UTP 1000Mbps (OEM) |
| Overview | PCIE USB3.0 &Gigabit Network LAN adapter adopts high-performance Dual-chip (VL805+RTL8153) control processor, which can expand 2 USB 3.0 and 1 Gigabit Ethernet interface. Built-in SATA 15PIN Dual power supply makes it run more stable and compatible. USB3.0 bandwidth up to 5Gbps,Users can through the RJ45 interface to enjoy the Gigabit Network | |
| Chipset | VL805+RTL8153 | |
| Bus Type | PCI Expresss Rev2.0 | |
| External Interface | USB 3.0 x 3 | USB 3.0 x 2 + USB 3.0 x 1 int |
| Gigabit Ethernet (RJ45) x 1 | ||
| Power | 1 x Internal 4-PIN power, 1 x Internal SATA 15-PIN power | |
| Data rate | Low-speed: 1.5Mbps / Full-speed: 12Mbps/High-speed : 480Mbps / Super-speed: 5Gbps | |
| IEEE Standard | 10/100/1000BASE-T, IEEE 802.3, IEEE 802.3u. IEEE 802.3az | |
| Support | Plug-play, Hot-plug, Wake-On-Lan | |
| System Requirements | Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit/Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2/DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8 | |
| P/N | EX283714 | EX290278 |
| EAN | 4895205117334 | 4895205128668 |

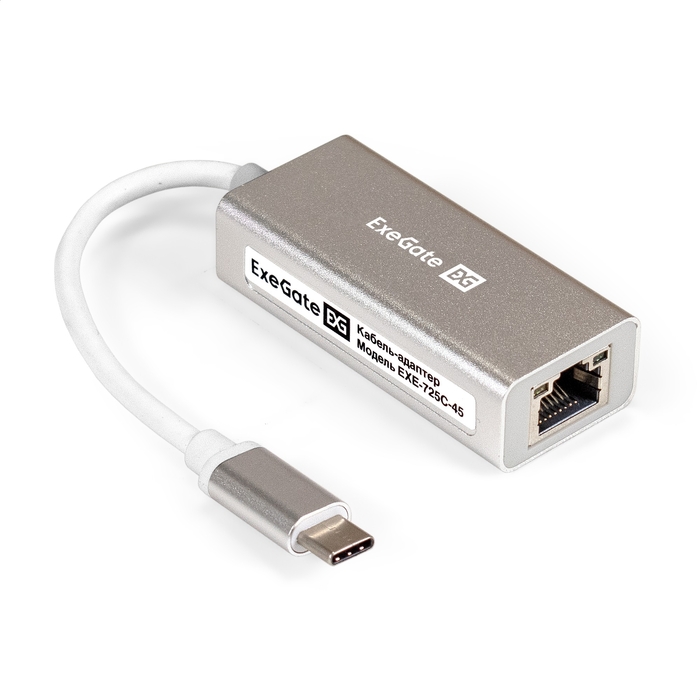

| Model |  Cable-adapter EXE-UA2-45 USB2.0 --> UTP 10/100Mbps |
 Cable-adapter ExeGate EXE-730-45 USB3.0 Type C -> UTP 1000Mbps |
 Cable-adapter ExeGate EXE-730U3-45 USB3.0 -> UTP 1000Mbps |
 Cable-adapter EXE-735 USB3.0 --> UTP 1000Mbps AX88179 |
 Cable-adapter EXE-736 USB3.0 Type C --> UTP 1000Mbps AX88179 |
| Overview | Simple Plug-and-Play Ethernet network connection capability for Desktops, Notebook PCs, ultrabooks, cradles/port replicators/docking stations, game consoles, digital-home appliances, and any embedded system using a standard USB port. | ||||
| Chipset | RTL8152B | RTL8153 | AX88179 | ||
| Interface | USB 2.0 | USB 3.0 Type C | USB 3.0 | USB 3.0 | USB 3.1 Type C positive and negative interpolation support |
| External Interface | RJ45 (Copper cable) | ||||
| Power | 5V, USB bus | ||||
| Data rate | 10/100Mbps | 10/100/1000Mbps | |||
| IEEE Standard | 10BASE-T ,100BASE-TX | 10BASE-T ,100BASE-TX ,1000BASE-T, IEEE 802.1Q VLAN, IEEE 802.3x flow control; IEEE 802.3, 802.3u and 802.3ab compatible, IEEE 802.3az |
|||
| LED Indicators | - | Green: Power LED; Yellow : Link/Act LED |
|||
| Support | - | Full duplex operation with IEEE 802.3x flow control Half duplex operation with back pressure flow control IEEE 802.1q VLAN Tagging 4KB jumbo frames Plug-play and Hot-plug |
|||
| System | Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit/Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2/DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8 | ||||
| Material | White plastic case | Black plastic case | |||
| P/N | EX284936 | EX287862 | EX288739 | EX283722 | EX283721 |
| EAN | 4895205118409 | 4895205126220 | 4895205126596 | 4895205117419 | 4895205117426 |
