EX

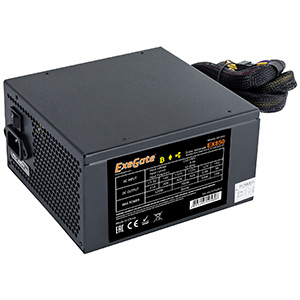

 EX850 |
EX1000 |
EX1200 |
Specification
| Features | Intended for round the clock operation. Increased reliability due to the softened thermal conditions of keys and diodes |
| Type | ATX 12V v2.3 |
| PFC | Active |
| AC input, V | 115-253 |
| Input current, A | 8 |
| Input Frequency Range, Hz | 50-60 |
| FAN, cm | 14 |
| Noise Level, dBA | 25 |
| Efficiency | 81 |
| Connectors: | |
| (20+4) pin ATX | 1 |
| (4+4) pin CPU | 1 |
| SATA | 5 |
| (6+2) pin PCI-E | 4 for EX850 6 for EX1000, EX1200 |
| IDE | 8 for SHP1300, SHP1700 10 for SHP2000 |
| (6+2) pin PCI-E | 6 for SHP1300, SHP1700 8 for SHP2000 |
| Protection | SCP, OVP, UVP, OCP, OPP/OLP, OTP |
| Quality Certificates | CE, FCC, CV, UL, TUV, VSMI, CCC, EPS12V |
| MTVF, HRS | 100000 |
| Storage temperature, °C | 0-40 |
| Storage Humidity, % | 20-90 |
| Color | Black |
| Dimension (W x H x D), mm | 150 x 86 x 160 |
| Weight, kg | 2 |
| Model | EX850 | EX1000 | EX1200 |
| Max. Output Capacity, W | 850 | 1000 | 1200 |
| Input Voltage: | |||
| +3.3B, A | 21 | 24 | 24 |
| +5B, A | 20 | 22 | 22 |
| +12B, A | 42 | 48 | 52 |
| +12B2, A | 42 | 48 | 52 |
| +5Bsb, A | 3 | 3 | 3 |
| -12B, A | 0,3 | 0,3 | 0,3 |
| Max Output Power: | |||
| +3.3B&B, W | 120 | 150 | 150 |
| +12B1&2B2, W | 760 | 890 | 1100 |
| -12B, W | 3,6 | 3,6 | 3,6 |
| +5Bsb, W | 15 | 15 | 15 |
| P/N | EX272352 | EX272353 | EX272354 |
| EAN | 4895205105898 | 4895205105904 | 4895205105911 |
