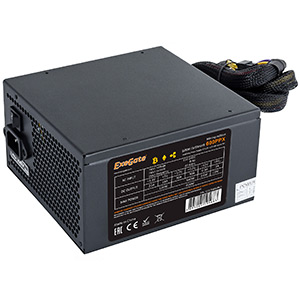

PPX Mining Edition
    |
    |
    |
   |
| 600PPX Mining Edition |
700PPX Mining Edition |

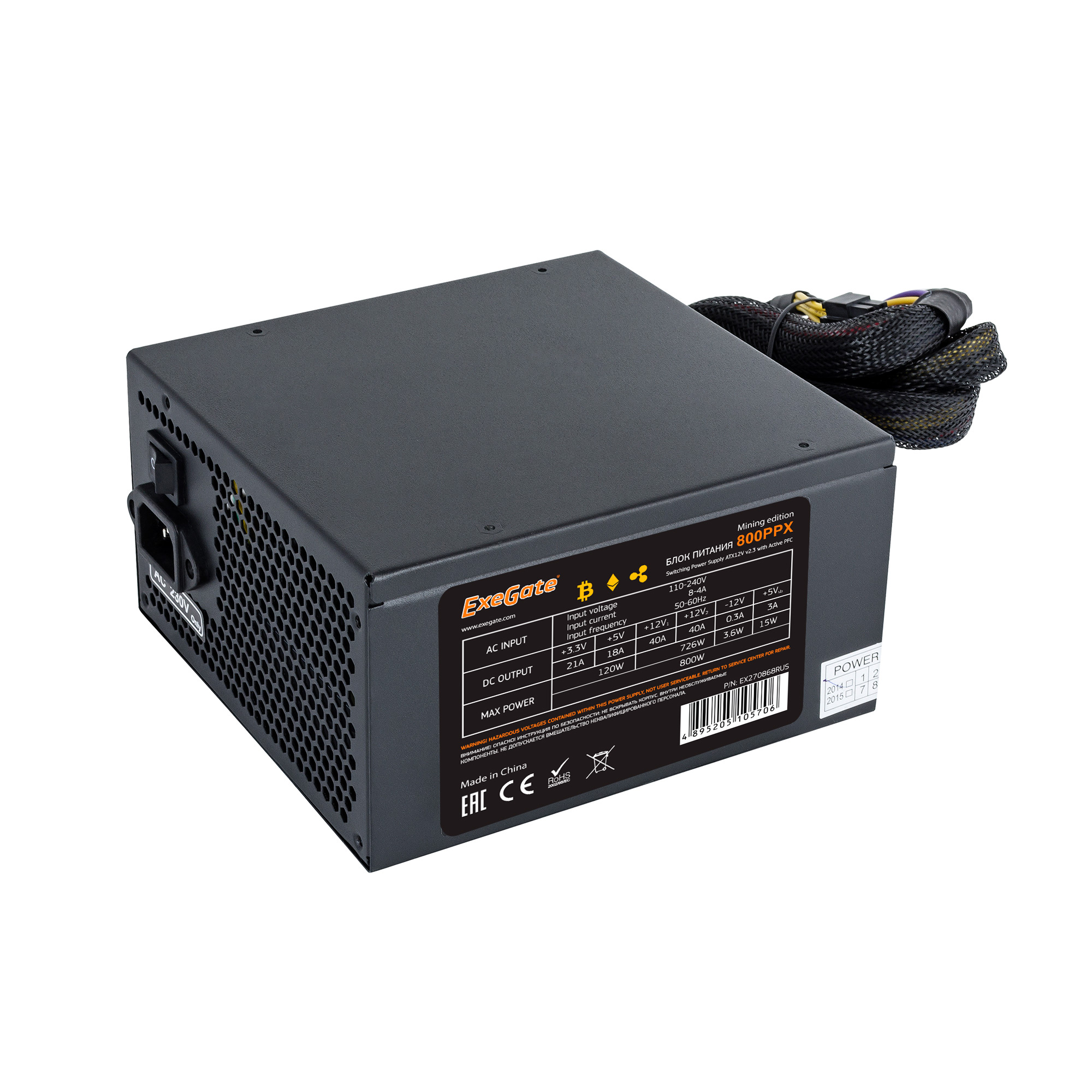

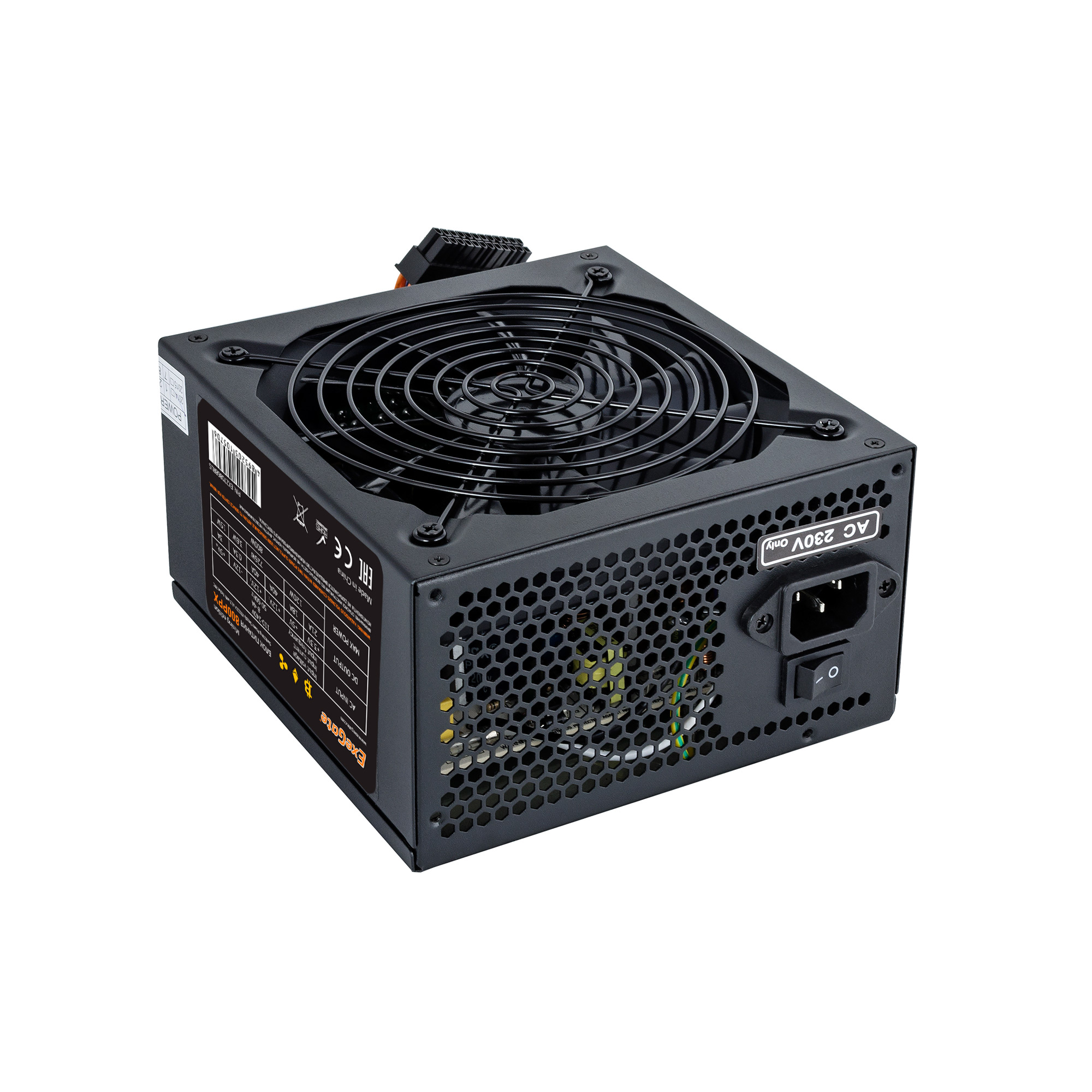

800PPX Mining Edition |

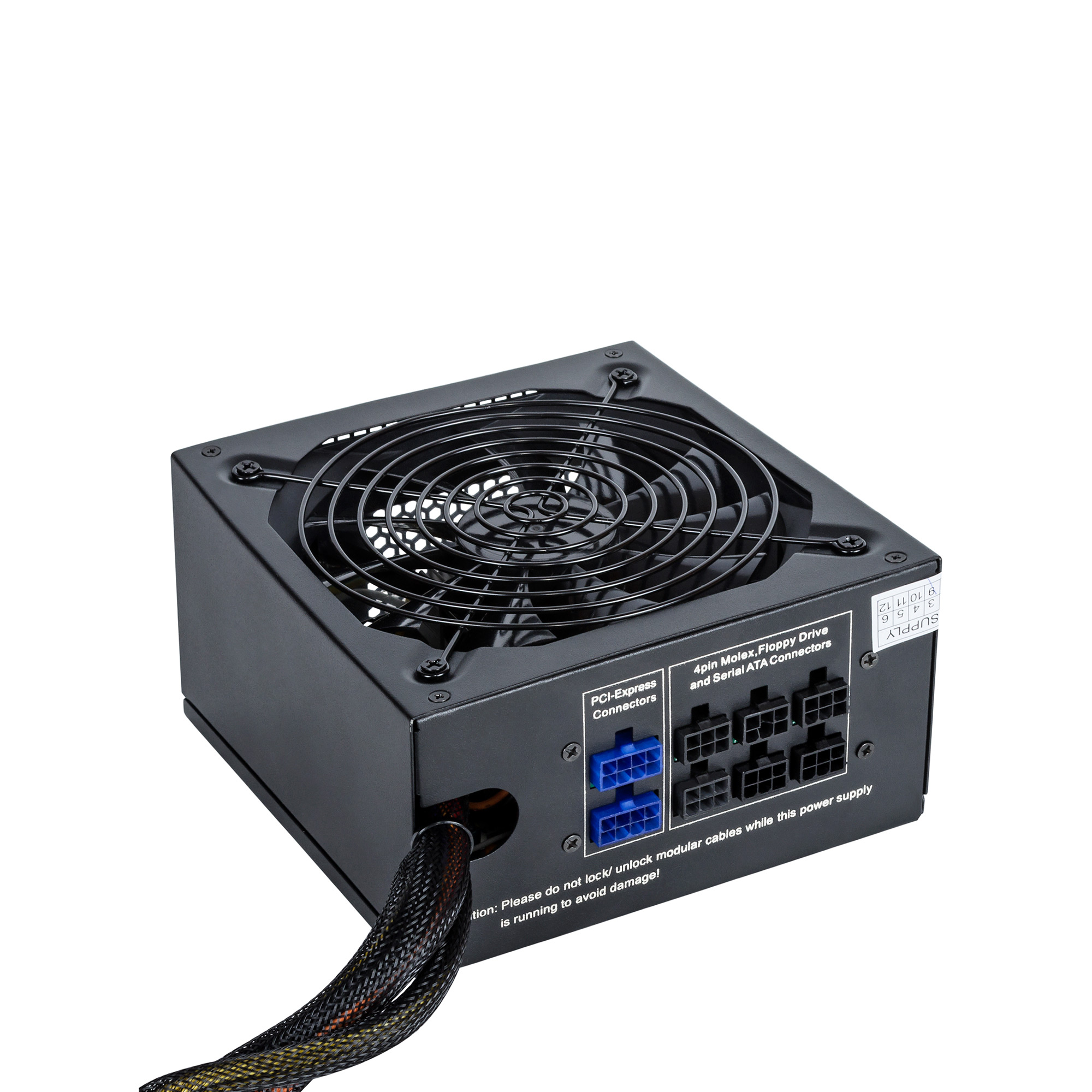

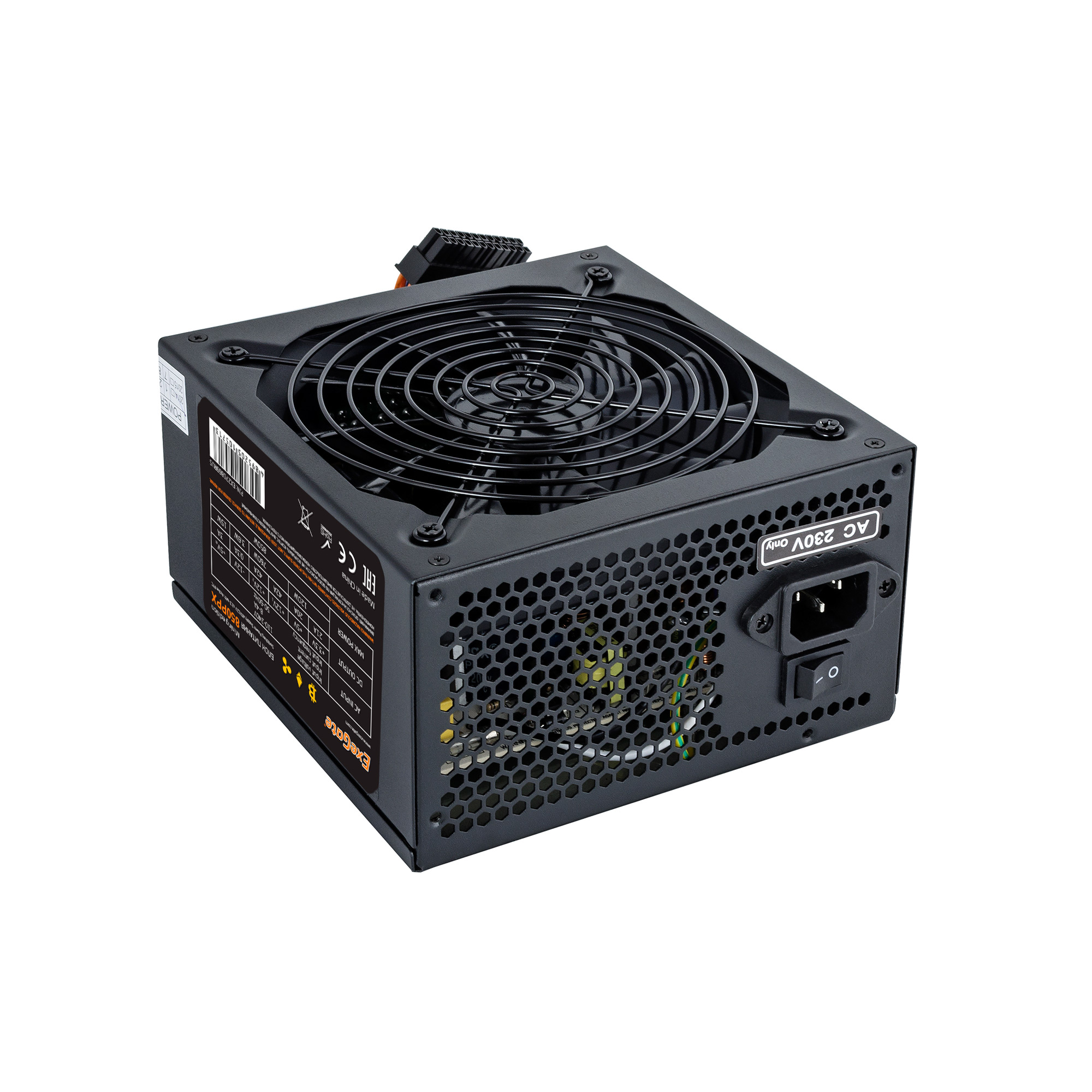

850PPX Mining Edition |
Specification
| Features | Intended for round the clock operation. Increased reliability due to the softened thermal conditions of keys and diodes. |
| Type | ATX 12V v.2.3 |
| PFC | Active |
| AC input, V | 115-253 |
| Input current, A | 8 |
| Input Frequency Range, Hz | 47-63 |
| FAN, cm | 14 |
| Noise Level, dBA | 25 |
| Efficiency | 81% typical load |

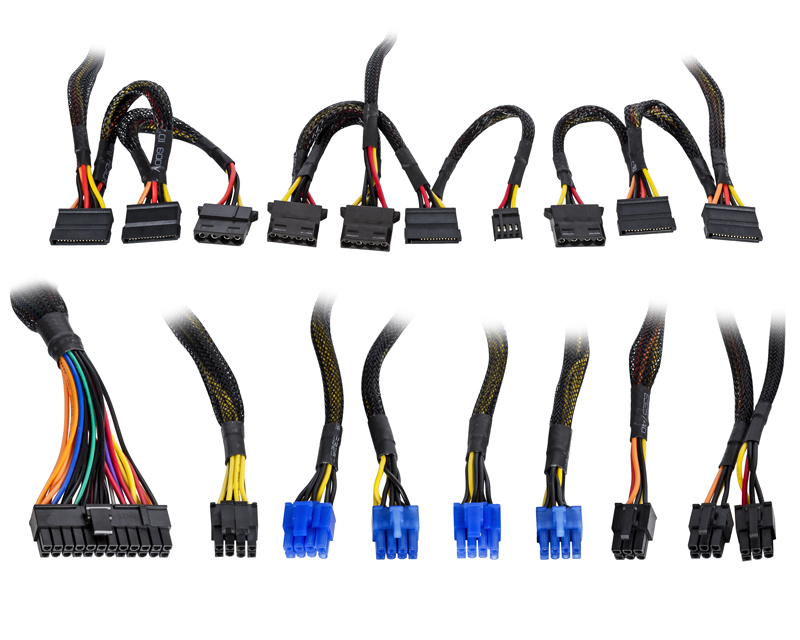

| Connectors: | |
| 20+4 pin ATX | 1 |
| 4+4 pin CPU | 1 2 for 800PPX, 850PPX |
| SATA | 5 |
| Molex | 4 |
| 6+2 pin PCI-E | 2 |
| Protection | SCP, OVP, UVP, OCP, OPP/OLP, OTP |
| Quality Certificates | CE, FCC, CV, UL, TUV, VSMI, CCC, EPS12V |
| MTVF, HRS | 50000 |
| Storage temperature, °C | 0-40 |
| Storage Humidity, % | 20-90 |
| Color | Black |
| Dimension (W x H x D), mm | 150x86x160 |
| Weight, kg | 1,9 |
| Model | 600PPX | 700PPX | 800PPX | 850PPX |
| Max. Output Capacity, W | 600 | 700 | 800 | 850 |
| Input Voltage: | ||||
| +3.3V, A | 21 | 21 | 21 | 21 |
| +5V, A | 18 | 18 | 18 | 20 |
| +12V1, A | 30 | 35 | 40 | 42 |
| +12V2, A | 30 | 35 | 40 | 42 |
| +5Vsb, A | 3 | 3 | 3 | 3 |
| -12V, A | 0.3 | 0.3 | 0.3 | 0.3 |
| Max Output Power: | ||||
| +3.3V&+5V, W | 120 | 120 | 120 | 120 |
| +12V1&+12V2, W | 540 | 636 | 726 | 760 |
| -12V, W | 3.6 | 3.6 | 3.6 | 3.6 |
| +5Vsb, W | 15 | 15 | 15 | 15 |
| P/N | EX270866 | EX270867 | EX270868 | EX270869 |
| EAN | 4895205105683 | 4895205105690 | 4895205105706 | 4895205105713 |
