SHP
 SHP1300 |

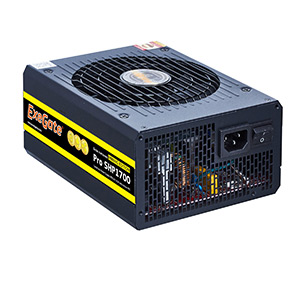

 SHP1700 |

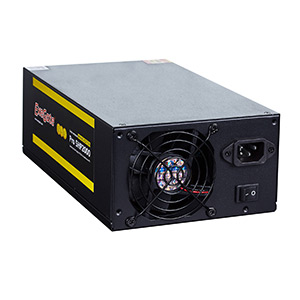

 SHP2000 |
Specification
| Features | Intended for round the clock operation. Increased reliability due to the softened thermal conditions of keys and diodes |
| Type | ATX 12V v2.4 |
| PFC | Active |
| AC input, V | 115-253 |
| Input current, A | 10 |
| Input Frequency Range, Hz | 50-60 |
| Efficiency | 88 |
| Connectors: | |
| (20+4) pin ATX | 1 |
| (4+4) pin CPU | 1 |
| SATA | 7 for SHP1300, SHP1700 9 for SHP2000 |
| IDE | 8 for SHP1300, SHP1700 10 for SHP2000 |
| (6+2) pin PCI-E | 12 for SHP1300, SHP1700 16 for SHP2000 |
| Protection | SCP, OVP, UVP, OCP, OPP/OLP, OTP |
| Quality Certificates | CE, FCC, CV, UL, TUV, VSMI, CCC, EPS12V |
| MTVF, HRS | 100000 |
| Storage temperature, °C | 0-40 |
| Storage Humidity, % | 20-90 |
| Color | Black |
| Model | SHP1300 | SHP1700 | SHP2000 |
| Max. Output Capacity, W | 1300 | 1700 | 2000 |
| FAN, mm | 140 x 140 x 25 | 140 x 140 x 25 | 2 x (80 x 80 x 38) |
| Air Flow, CFM | 65 | 65 | 69,4 |
| RPM | 2500±10%RPM | 2500±10%RPM | 4600±10%RPM |
| Bearing Type | Two Ball Bearing | ||
| Input Voltage: | |||
| +3.3B, A | 12 | 12 | 12 |
| +5B, A | 12 | 12 | 12 |
| +12B, A | 106 | 135 | 165 |
| +5Bsb, A | 2 | 2 | 2 |
| -12B, A | 0,3 | 0,3 | 0,3 |
| Max Output Power: | |||
| +3.3B&B, W | 100 | 100 | 100 |
| +12B, W | 1272 | 1620 | 1980 |
| -12B, W | 3,6 | 3,6 | 3,6 |
| +5Bsb, W | 10 | 10 | 10 |
| Dimension (W x H x D), mm | 150 x 86 x 185 | 150 x 86 x 185 | 150 x 86 x 230 |
| Weight, kg | 2,4 | 2,6 | 2,6 |
| P/N | EX270870 | EX270871 | EX270872 |
| EAN | 4895205105652 | 4895205105652 | 4895205105652 |
