6 sockets

Model Maximum load current, A Input information Control Functions Standard Compliance Dimension, mm P/N EAN
Type of outlet Input socket Power Cable LED indication Overload button Protection filter with indicator Protection filter with 3 indicators Switcher with light and cover   Circuit breaker Weight, kg Size, mm Packing dimension, mm
Type of plug Specification Length, m

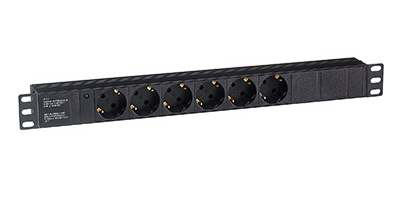

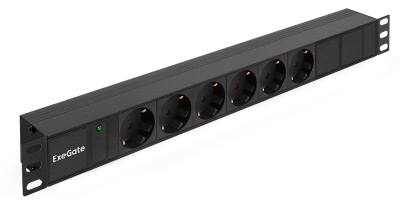

PDU-19H601 PDU-19H601 10 Schuko IEC 320 C14 No Without power cable No Yes No No No No No EAC 0,64 No No EX280825 4895205111363

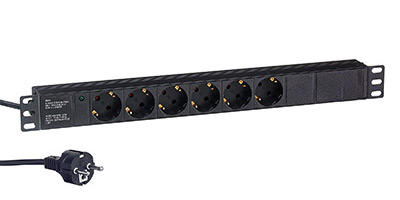

PDU-19H602 PDU-19H602 16 Schuko No Schuko plug (CEE 7/4) Wire section: 3 x 1,5 mm2 2 Yes No No No No No VDE, EAC 0,92 No No EX280827 4895205111370

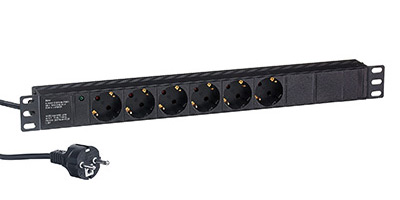

PDU-19H603 PDU-19H603 16 Schuko No Schuko plug (CEE 7/4) Wire section: 3 x 1,5 mm2 2,5 Yes No No No No No VDE, EAC 0,96 No No EX280828 4895205111387

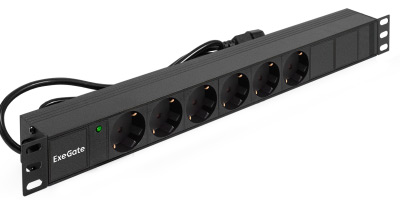

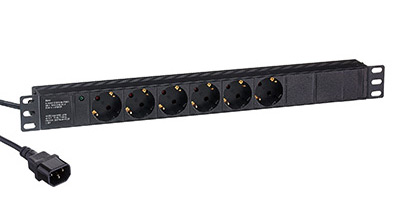

PDU-19H604 PDU-19H604 10 Schuko No IEC 320 C14; Wire section: 3 x 1,5 mm2 2,5 Yes No No No No No VDE, EAC 0,96 No No EX280829 4895205111394

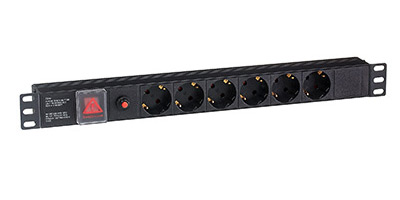

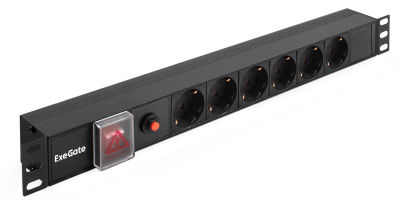

PDU-19H605 PDU-19H605 10 Schuko IEC 320 C14 No Without power cable No No Yes No No Yes No EAC 0,64 No No EX280830 4895205111400
PDU-19H606 PDU-19H606 16 Schuko No Schuko plug (CEE 7/4) Wire section: 3 x 1,5 mm2 2 No Yes No No Yes No VDE, EAC 0,92 No No EX280831 4895205111417

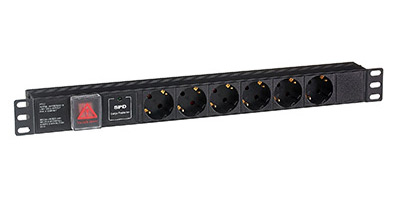

PDU-19H607 PDU-19H607 10 Schuko IEC 320 C14 No Without power cable No No No Yes No Yes No EAC 0,64 No No EX280832 4895205111424

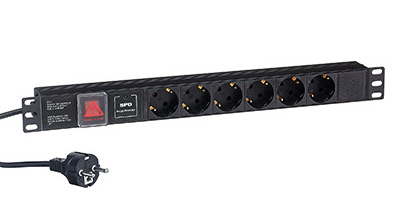

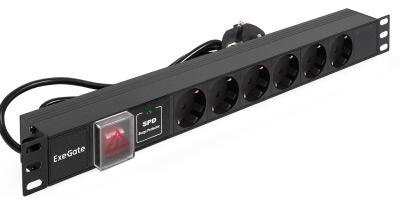

PDU-19H608 PDU-19H608 16 Schuko No Schuko plug (CEE 7/4) Wire section: 3 x 1,5 mm2 2 No No Yes No Yes No VDE, EAC 0,92 No No EX280833 4895205111431

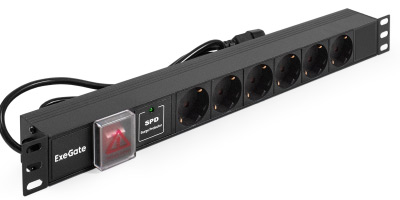

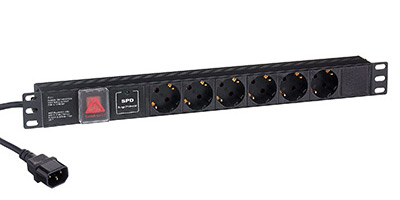

PDU-19H609 PDU-19H609 10 Schuko No IEC 320 C14; Wire section: 3 x 1,0 mm2 2 No No Yes No Yes No VDE, EAC 0,88 No No EX280834 4895205111448

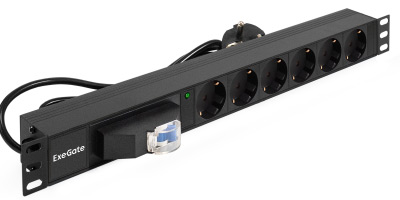

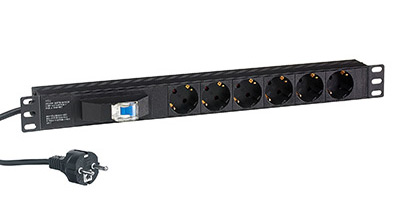

PDU-19H610 PDU-19H610 16 Schuko No Schuko plug (CEE 7/4) Wire section: 3 x 1,5 mm2 2,5 No No No No No Yes VDE, EAC 0,96 No No EX280835 4895205111455

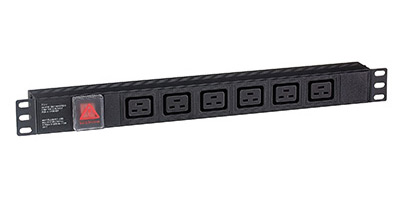

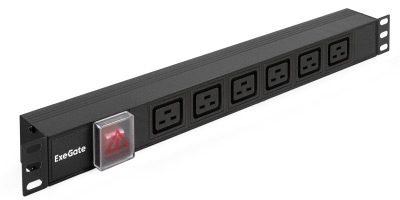

PDU-19H012 PDU-19H012 16 IEC 320 C19 IEC 320 C20 No Without power cable No No No No No Yes No EAC 0,64 No No EX280870 4895205111325

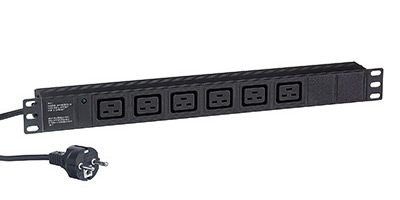

PDU-19H013 PDU-19H013 16 IEC 320 C19 No Schuko plug (CEE 7/4) Wire section: 3 x 1,5 mm2 3 No No No No Yes No VDE, EAC 1 No No EX280871 4895205111332
