Specification

Common parameter
Full output power, VA1500
Form FactorFloor and desktop installation
TypeRelay voltage regulator
Operating mode indication
Indication of input/output parametersLED
The input voltage is below the permissible rangeOutput Cutoff + "L" symbol + Red LED
The input voltage is above the permissible range, the stabilizer works to lower the input voltageOutput Cutoff + "H" symbol + Red LED
The stabilizer is in mains modeThe green LED is on
The mains voltage is within the permissible voltage rangeThe green LED is on
Delaying (Output is being suppressed)The yellow LED is on
Overheating of the stabilizer Output Cutoff + "C" symbol + Red LED
Input and output parameters
Input Voltage, V110-265
Output Voltage, V220
Response time, ms5-7
Efficiency98%
Load connection2*Schuko
Location of outletsIn the rear panel
Child protectionYes
Input Frequency, Hz50
Maximum input current, A7,5
Other parameters

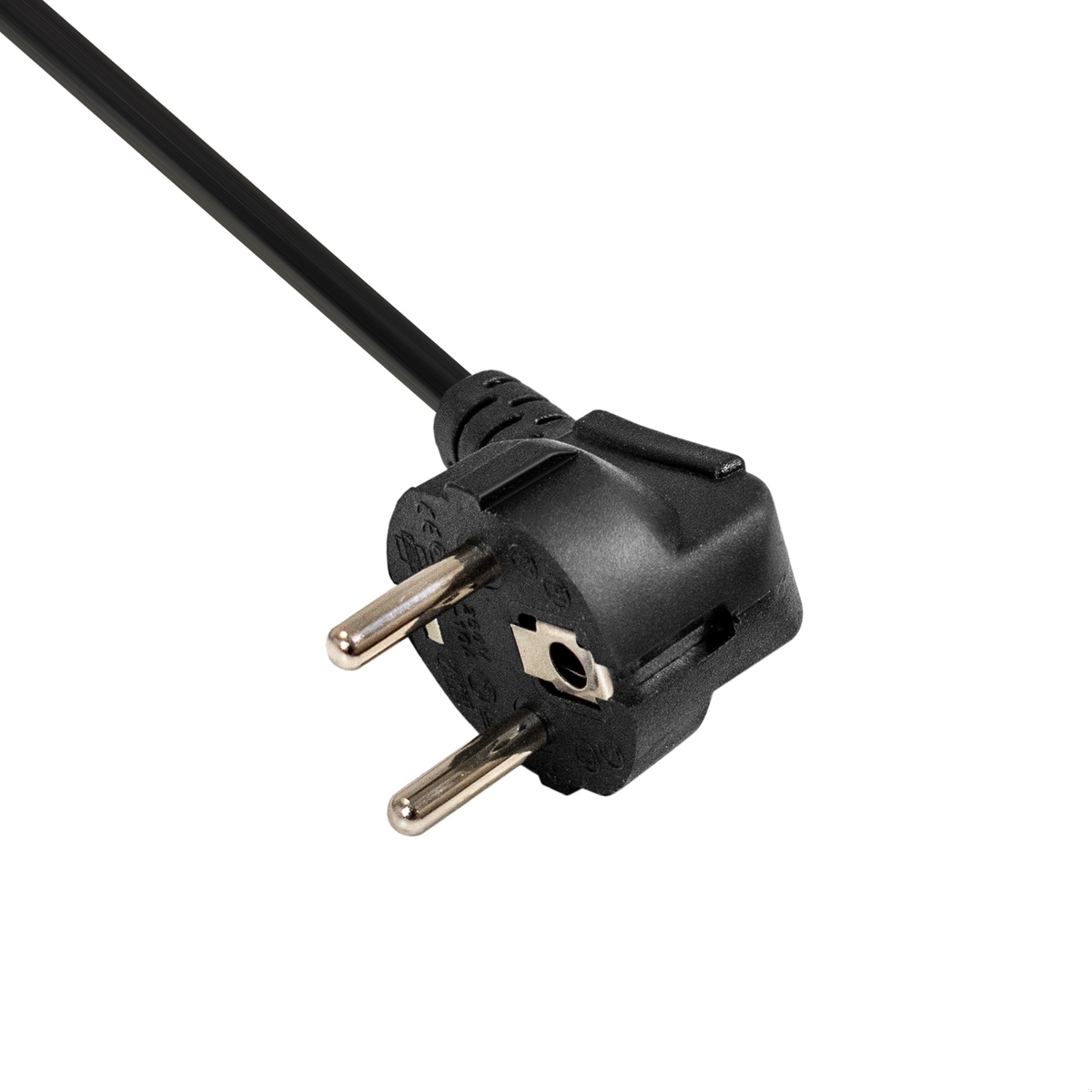

PowerSchuko power cord 1,3m
Surge ProtectionOvervoltage / undervoltage, high voltage impulse, short circuit, overload and overheat protection.
EnironmentalOperating Environment, °C, operating Relative Humidity, %
Delivery setAVR, manual
Product size, mm240x140x170
Net weight, kg4,3
Gross weight, kg4,63
P/NEX291730
EAN4895205129252
