AVR ExeGate Expert Turbo AST-2000
Specification
| Common parameter | |
| Full output power, VA | 2000 |
| Active output power, W | 1200 |
| Form Factor | Floor and desktop installation |
| Type | Relay voltage regulator |
| Operating mode indication | |
| Indication of input/output parameters | LED |
| The input voltage is below the permissible range | Output Cutoff + "L" symbol + Red LED |
| The input voltage is above the permissible range, the stabilizer works to lower the input voltage | Output Cutoff + "H" symbol + Red LED |
| The stabilizer is in mains mode | The green LED is on |
| The mains voltage is within the permissible voltage range | The green LED is on |
| Delaying (Output is being suppressed) | The yellow LED is on |
| Overheating of the stabilizer | Output Cutoff + "C" symbol + Red LED |
| Input and output parameters | |
| Input Voltage, V | 110-265 |
| Output Voltage, V | 220±10% |
| Response time, ms | 5-7 |
| Efficiency | 98% |
| Load connection | 2*Schuko |
| Location of outlets | In the rear panel |
| Child protection | Yes |
| Input Frequency, Hz | 50 |
| Maximum input current, A | 10 |
| Other parameters | |

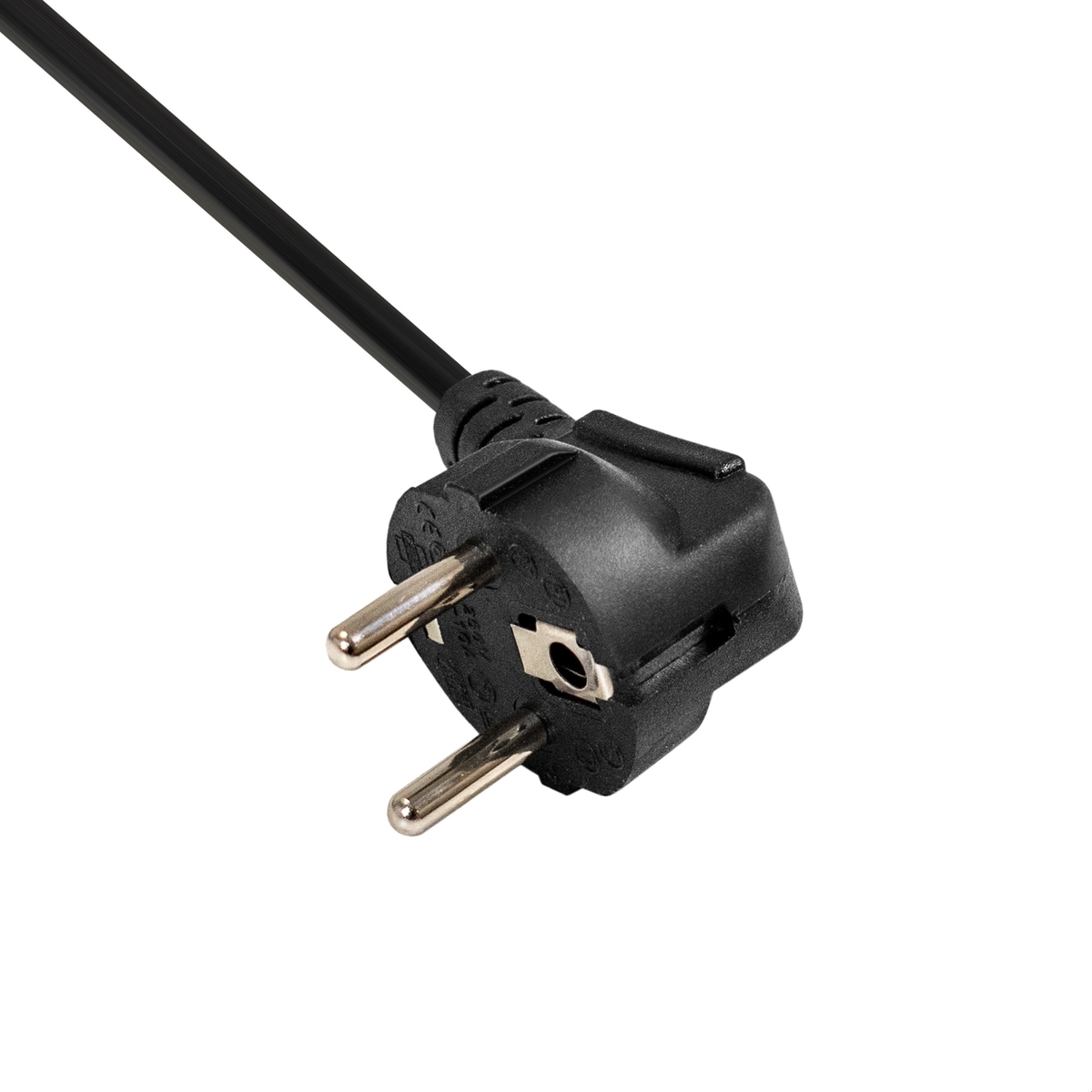

| Power | Schuko power cord 1,3m |
| Surge Protection | Overvoltage / undervoltage, high voltage impulse, short circuit, overload and overheat protection. |
| Enironmental | Operating Environment, °C, operating Relative Humidity, % |
| Delivery set | AVR, manual |
| Product size, mm | 240x140x170 |
| Net weight, kg | 4,9 |
| Gross weight, kg | 5,13 |
| P/N | EX291731 |
| EAN | 4895205129290 |
