Series AB
| Series | AB |
| Case Type | Miditower |
| Chassis Material | Steel |
| PSU Type | ATX |
| Optional accessories | HDD Adapters Front panel 3,5" Card Reader 3,5" Multifunction panel 5,25" |
| Model |   AB-220 |
AB-220A |
  AB-221 |

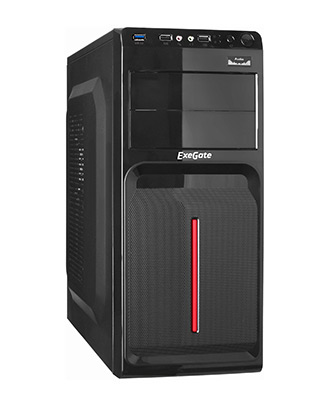

AB-221U |

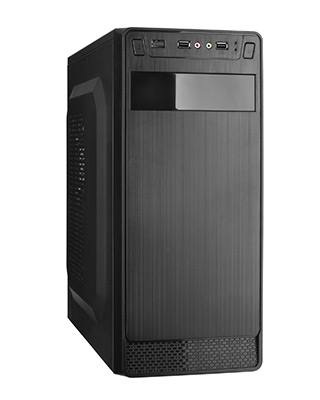

  AB-222 |

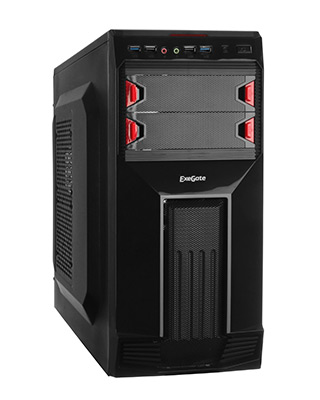

  AB-224U |
| Material Thickness, mm | 0,4 | 0,4 | 0,4 | 0,4 | 0,4 | 0,4 |
| Motherboard Support | mATX, ATX | mATX, ATX | mATX, ATX | mATX, ATX | mATX, ATX | mATX, ATX |
| Cases Features | ||||||
| Screwless access | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of screws for mounting the side panel, pcs | 4 | 4 | 4 | 4 | 4 | 4 |
| Cap for External 5,25" | - | - | - | - | - | Yes |
| Drive Bay: | ||||||
| External 5.25" | 3 (2 of them for devices up to 120 mm deep) | 3 (2 of them for devices up to 120 mm deep) | 2 (1 of them for devices up to 120 mm deep) | 2 (1 of them for devices up to 120 mm deep) | 1 | 2 (1 of them for devices up to 120 mm deep) |
| Internal 3.5" | 6 (2 if used fan on front panel) | 6 (2 if used fan on front panel) | 6 (2 if used fan on front panel) | 6 (2 if used fan on front panel) | 6 (2 if used fan on front panel) | 6 (2 if used fan on front panel) |
| Internal 2.5" | 1 (or 1 x 3,5") | 1 (or 1 x 3,5") | 1 (or 1 x 3,5") | 1 (or 1 x 3,5") | 1 (or 1 x 3,5") | 1 (or 1 x 3,5") |
| Interfaces | ||||||
| Front I/O Ports | Audio 2 x 3.5mm (AC97) | Audio 2 x 3.5mm (AC97) | Audio 2 x 3.5mm (AC97) | Audio 2 x 3.5mm (AC97) | Audio 2 x 3.5mm (AC97) | Audio 2 x 3.5mm (AC97) |
| USB 2.0 | 2 | 2 | 2 | 2 | 2 | 2 |
| USB3.0 | - | - | - | 1 | - | 2 |
| Interface location | At the top of the front panel | At the top of the front panel | At the top of the front panel | At the top of the front panel | At the top of the front panel | At the top of the front panel |
| Expansion Slots | 7 | 7 | 7 | 7 | 7 | 7 |
| Fan Support: | ||||||
| Front Panel | 12 sm x 1 | 12 sm x 1 | 12 sm x 1 | 12 sm x 1 | 12 sm x 1 | 12 sm x 1 |
| Rear Panel | 8 sm x 1 or 9,2 sm x 1 | 8 sm x 1 or 9,2 sm x 1 | 8 sm x 1 or 9,2 sm x 1 | 8 sm x 1 or 9,2 sm x 1 | 8 sm x 1 or 9,2 sm x 1 | 8 sm x 1 |
| Side Panel | 12 sm x 2 | 12 sm x 2 | 12 sm x 2 | 12 sm x 2 | 12 sm x 2 | 12 sm x 2 |
| PSU models | AB350, AB400, AB450, AB500, w/o PSU | AAA350, AAA400, AAA450, w/o PSU | AB350, AB400, AB450, AB500, w/o PSU | AB350, AB400, AB450, AB500, w/o PSU | AB350, AB400, AB450, AB500, w/o PSU | AB350, AB400, AB450, AB500, w/o PSU |
| Fan of PSU | 80 | 80 | 80 | 80 | 80 | 80 |
| Power supply location | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side |
| Max. motherboard length, mm | 244 | 244 | 244 | 244 | 244 | 244 |
| Max. height of the CPU fan, mm | 140 | 140 | 140 | 140 | 140 | 140 |
| Max. PSU length, mm | 205 | 205 | 205 | 205 | 205 | 205 |
| Max. PSU length with drive opposite, mm | 140 | 140 | 140 | 140 | 140 | 140 |
| Max. SVGA length, mm | 235 | 235 | 235 | 235 | 235 | 235 |
| Max. SVGA length with drive opposite, mm | 180 | 180 | 180 | 180 | 180 | 180 |
| Case Color | Black | Black | Black | Black | Black | Black |
| Chassis Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Chassis dimensions | ||||||
| Width, mm | 170 | 170 | 170 | 170 | 170 | 170 |
| Height, mm | 405 | 405 | 405 | 405 | 405 | 405 |
| Depth, mm | 335 | 335 | 330 | 330 | 330 | 330 |
| Case Dimensions | ||||||
| Width, mm | 195 | 195 | 195 | 195 | 195 | 195 |
| Height, mm | 405 | 405 | 405 | 405 | 405 | 405 |
| Depth, mm | 380 | 380 | 365 | 365 | 365 | 385 |
| Net Weight w/o PSU / with PSU, kg | 3,30 / 4,10 | 3,10 / 3,73 | 3,30 / 4,10 | 3,30 / 4,10 | 3,30 / 4,10 | 3,30 / 4,00 |
| PSU models, PN/EAN | ||||||
| w/o PSU | EX247928 4897040858816 |
EX247933 4897040858762 |
EX264156 4895205103214 |
EX247938 4897040858717 |
EX261424 4895205102910 |
|
| 350W | EX247929 4897040858809 |
EX267181 4895205104686 |
EX247934 4897040858755 |
EX264157 4895205103177 |
EX247939 4897040858700 |
EX261425 4895205102903 |
| 400W | EX247930 4897040858793 |
EX267184 4895205104693 |
EX247935 4897040858748 |
EX264158 4895205103184 |
EX247940 4897040858694 |
EX261426 4895205102897 |
| 450W | EX247931 4897040858786 |
EX267185 4895205104709 |
EX247936 4897040858731 |
EX263998 4895205103191 |
EX247941 4897040858687 |
EX261427 4895205102880 |
| 500W | EX247932 4897040858779 |
EX247937 4897040858724 |
EX264159 4895205103207 |
EX247942 4897040858670 |
EX261428 4895205102873 |
|
