Home / Products / Computer cases

Computer cases

Series AA AB CP UN XP PS EVO BAA BA MA QA SP mEVO MS MI

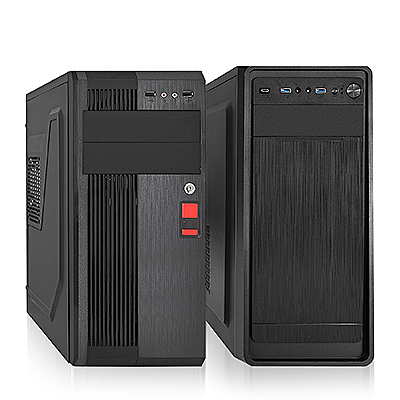

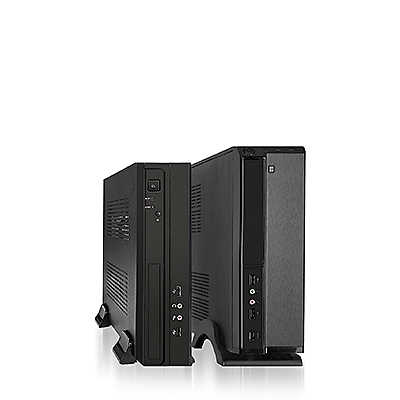

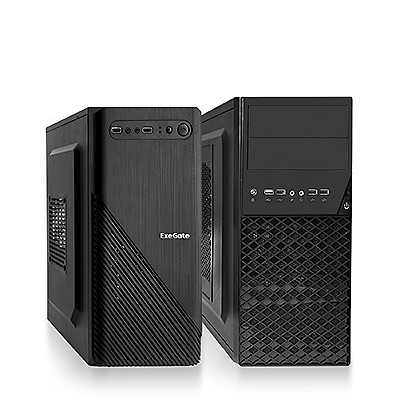

Type Midi Tower Mini Tower Slim Mini Tower
Midi Tower Mini Tower Slim Mini Tower
Motherboard Support Micro-ATX, ATX Micro-ATX Mini-ITX
Mini-DTX
Micro-ATX
Material Thickness, mm 0.45 0.4 0.5 0.5 0.45-0.5 0.7 0.5 0.45 0.45 0.45 0.45 0.6-0.7 0.4 0.45 0.6
Chassis color Silver Silver Silver Silver Black Silver Black Silver Silver Silver Black Silver Black Silver Silver
Ext. 5,25" 2 1-3 1-4 2 3 1-2 0-2 0-2 1 2-3 2 1-2 - 1 1
Ext. 3,5" - - 1-2 1 1 0-1 0-1 0-1 0-1 0-1 0-1 2 - - -
Int. 5,25" - 1-3 0-2 - 1-3 - 0-3 - - 0-1 0-2 - - - -
Int. 3,5" 2 4 4-5 5 4-5 5-6 2-5 2-5 2-5 3-4 2 3 2 1 1
Int. 2,5" - 1 0-1 1 1 1 1-4 - 1 0-1 1-2 1 1 3 -
PSU located At the top At the top At the top At the top At the top At the top At the top At the top At the top At the top At the top At the top At the top At the top In the center
Dimensions (W x H x D), mm 185x410x380 190x410x385 179x411x425 179x411x422 185x412x435 180x410x420 200x424x414 175x345x360 170x347x375 177x346x403 175x365x325 180x365x430 180x360x320 133x330x400 96x285x400
Pre-Installed PSU
*At a customer's request Computer Cases can be completed with any PSU
Series AA AB CP UN XP/UN UN NPX AAA AA CP/UN XP UN XP M M
Output Capacity, W 350-500 350-500 350-500 350-500 350-600 400-500 500-700 350-450 350-500 350-600 350-600 450-600 500-700 300-450 300-450
Fan, cm 8 8 8 12 12 12 12 8 8 8 12 12 12 8 8
Color Silver Silver Silver Silver Black Silver Black Silver Silver Silver Black Silver Black Silver Silver

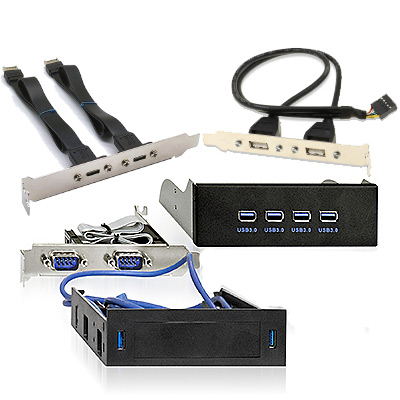

Optional accessories
Accessories HDD Adapters
Front panel
Card Reader 3,5"
Multifunction panel 5,25"
