Series CP

Optional accessories Accessories

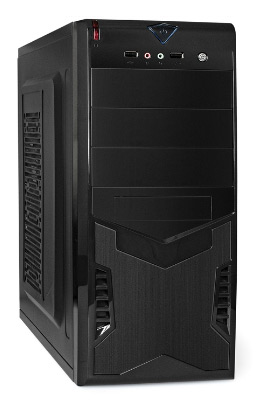

Model CP-601
CP-601

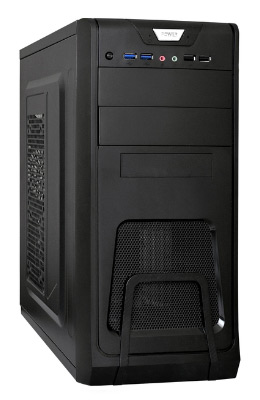

CP-603
CP-603

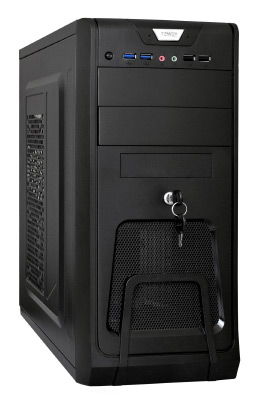

CP-603UB
CP-603UB

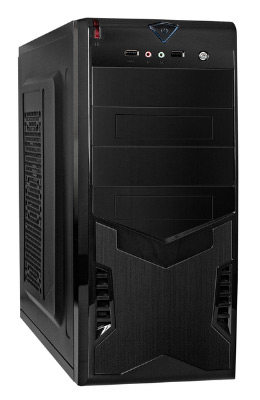

CP-604
CP-604

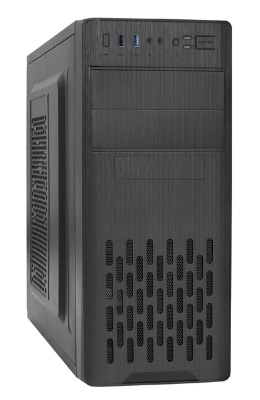

CP-606U
CP-606U
Cases Features
Case TypeMidiTowerMidiTowerMidiTowerMidiTowerMidiTower
Motherboard SupportATXATXATXATXATX
Chassis MaterialSteelSteelSteelSteelSteel
Material Thickness, mm0,50,50,50,50,45
Material of front and side panels----Plastic / Steel
Screwless AccessYesYesYesYesYes
Number of screws for mounting the side panel, pcs44444
Hinge For The LockYesYesYesYesYes
Power Button Lock--Yes--
Case ColorBlackBlackBlackBlackBlack
Chassis ColorSilverSilverSilverSilverSilver
Power
PSU TypeATXATXATXATXATX
Power supply locationAt the top of the rear sideAt the top of the rear sideAt the top of the rear sideAt the top of the rear sideAt the top of the rear side
PSU models*CP350, CP400, CP450, CP500CP350, CP400, CP450, CP500CP350, CP400, CP450, CP500CP350, CP400, CP450, CP500AB350, AB400, AB450, AB500, AB550, AB600
Recommended ExeGate PSUSeries CPSeries CPSeries CPSeries CPSeries AB
Construction
External 5,25" Drive Bay22222
External 3,5" Drive Bay11121
Internal Drive Bay 5,25"1--11
Internal 3,5" Drive Bay22222
Internal 2,5" Drive Bay33333
Expansion Slots66666
Cooling System
Places for installation on the front panel-12 cm x 112 cm x 1--
Places for installation on the rear panel8 cm x 1 or 9,2 cm x 19 cm x 1 or 9,2 cm x 18 cm x 1 or 9,2 cm x 18 cm x 1 or 9,2 cm x 11 x 8 or 1 x 9,2 cm
Places to install on the side panel8 cm x 2 or 12 cm x 29 cm x 2 or 12 cm x 28 cm x 2 or 12 cm x 212 cm x 22 x 12 cm
Recommended ExeGate fans----8 cm, 9 cm, 12 cm
Interfaces
Interface locationAt the top of the front panelAt the top of the front panelAt the top of the front panelAt the top of the front panelAt the top of the front panel
USB 2.0 Type-A22221
USB 3.2 Gen1 Type-A-22-1
Audio I/O PortsAudio 2 x 3.5mm (AC97)HD Audio 2 x 3.5mmHD Audio 2 x 3.5mmAudio 2 x 3.5mm (AC97)2 x 3.5mm
Other parameters
Max. motherboard length, mm244244244244244
Max. height of the CPU fan, mm140140140130140
Max. PSU length, mm210210210230180
Max. PSU length with drive opposite, mm200195195230160
Max. SVGA length, mm210210210320215
Max. SVGA length with drive opposite, mm200200200230185
Chassis dimensions
Width, mm175175175175175
Height, mm410410410410410
Depth, mm350350350350350
Case Dimensions
Width, mm185185185184185
Height, mm410410410410413
Depth, mm405400400400400
Carton Dimensions
Width, mm210210210220210
Height, mm450450450445430
Depth, mm430430430435450
Net Weight , kg46,22,532,3
PSU models, PN/EAN
w/o PSUEX261447
4895205102699
EX278394
4895205108196
EX283214
4895205117075
EX280385
4895205109988
EX292993
4895205132863
350WEX261448
4895205102682
EX278390
4895205108233
EX283215
4895205117037
EX280386
4895205109940
EX292994
4895205136984
400WEX261449
4895205102675
EX278391
4895205108226
EX283216
4895205117044
EX280387
4895205109957
EX292995
4895205136991
450WEX261450
4895205102668
EX278392
4895205108219
EX283217
4895205117051
EX280388
4895205109964
EX292996
4895205132870
500WEX261451
4895205102651
EX278393
4895205108202
EX283218
4895205117068
EX280389
4895205109971
EX292997
4895205132887
550WEX292998
4895205137004
600WEX292999
4895205137011
* At a customer's request Computer Cases can be completed with any PSU
