SATA Controllers
| Model |  EXE-501 |
 EXE-502 |
 EXE-503 |
 EXE-504 |
| Overview | This board is a single-chip, PCI Express to two SATA Gen III 6Gb/s channels host controller that brings server-class features to the desktop. This board enables the use of the industry’s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Besides, PCI Express 2.0 double | Marvell 88SE9230 SATA Raid card, Adoption PCI Express 2.0 x2 Bus interface, supports up to four SATA 6Gbps interfaces and can be flexibly converted to external eSATA, can use up to three SSDs and one mechanical hard disk at the same time, supports hardware RAID in disk array 0/1/10, in addition, also supports AHCI original driver, 128/256-bit AES encryption, 32 NCQ commands per port, port multiplexing, FIS-based switching, and more. | Marvell 88SE9215 SATA Raid card, Adoption PCI Express 2.0 x2 Bus interface, supports up to four SATA 6Gbps interfaces and can be flexibly converted to external eSATA, can use up to three SSDs and one mechanical hard disk at the same time, supports hardware RAID in disk array 0/1/10, in addition, also supports AHCI original driver, 128/256-bit AES encryption, 32 NCQ commands per port, port multiplexing, FIS-based switching, and more. | Marvell 88SE9230 SATA Raid card, Adoption PCI Express 2.0 x2 bus interface, supports up to four SATA 6Gbps interfaces and can be flexibly converted to external eSATA, can use up to three SSDs and one mechanical hard disk at the same time, supports hardware RAID in disk array 0/1/10, in addition, also supports AHCI original driver, 128/256-bit AES encryption, 32 NCQ commands per port, port multiplexing, FIS-based switching, and more. |
| Chipset | ASM1061 / ASMedia | Marvell 88SE9230 | Marvell 88SE9215 | Marvell 88SE9230 |
| Bus interface | PCIe v2.0a, Serial ATA 3.0 | PCIe v2.0a, Serial ATA 3.0 | PCIe v2.0a, Serial ATA 3.0 | PCI Exrpess 2.0 x2, Serial ATA 3.0 |
| Interface | 2 x internal SATA connectors; 2 x external eSATA connectors |
4 x internal SATA connectors | 4 x internal SATA connectors | 4 x Internal SATA connector; 2 x External eSATA connector |
| Transfer rate | eSATA / SATA up to 6.0 GB/s | eSATA / SATA up to 6.0 GB/s | eSATA / SATA up to 6.0 GB/s | Compatible with SATA 6G, 3G, 1.5G Hard drives |
| Raid array | Non-Raid | Non-Raid | Non-Raid | RAID 0, RAID 1, RAID 10, HyperDuo |
| Raide operating mode | No | No | No | |
| Safe Mode | No | No | No | Mirror data from SSDs to mechanical hard drives for optimized data protection |
| Capacity Mode | No | No | No | Combine the capacity of solid state drives and mechanical hard disks 2-in-1 |
| Plug &Play | Yes | Yes | Yes | Yes |
| Property | Native Command Queuing (NCQ), Port Multiplier | Native Command Queuing (NCQ), Port Multiplier | Native Command Queuing (NCQ), Port Multiplier | Native Command Queuing (NCQ), Port Multiplier |
| Supports communication speeds | 6.0Gbps, 3.0Gbps and 1.5Gbps | 6.0Gbps, 3.0Gbps and 1.5Gbps | 6.0Gbps, 3.0Gbps and 1.5Gbps | 6.0Gbps, 3.0Gbps and 1.5Gbps |
| System | Windows 10, Windows 8, Windows 7, Windows XP, Windows 2000, Windows Server 2008, Windows Server 2003, Windows ME, Windows 98, Windows NT, Linux, DOS | |||
| Packing size, mm | 120x20x75 | 120x20x100 | 120x20x100 | 120x20x120 |
| Weight, g | 30 | 40 | 40 | 50 |

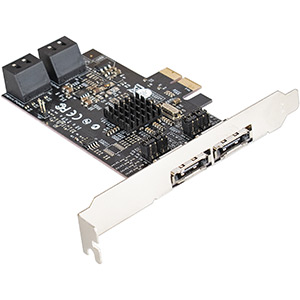

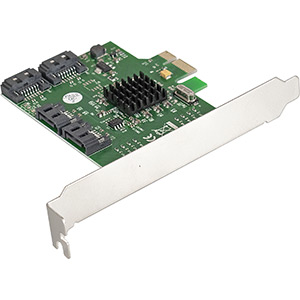

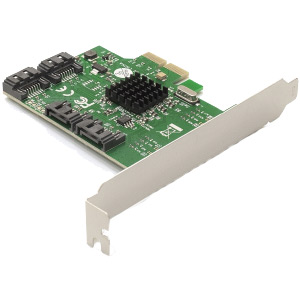

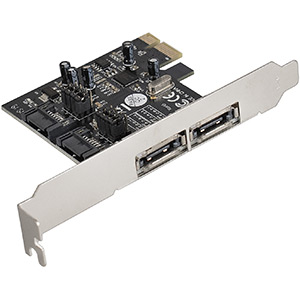

| P/N | EX283707 | EX290924 | EX283710 | EX283711 |
| EAN | 4895205117273 | 4895205128743 | 4895205117303 | 4895205117310 |
