Series MI

Optional accessories Accessories

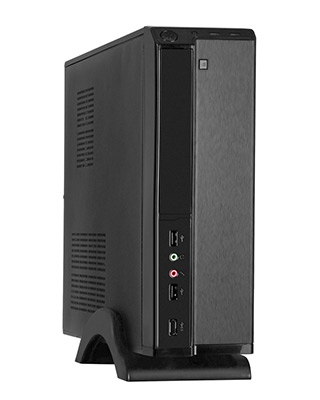

Model MI-207
MI-207

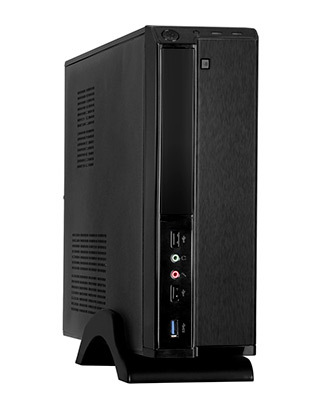

MI-207U
MI-207U
MI-208
MI-208

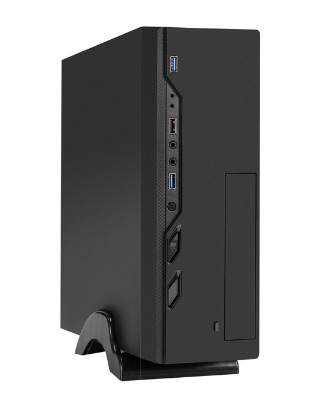

MI-208U2
MI-208U2

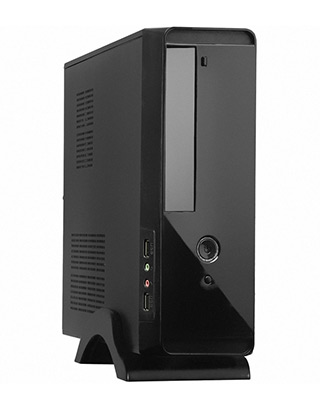

MI-209
MI-209

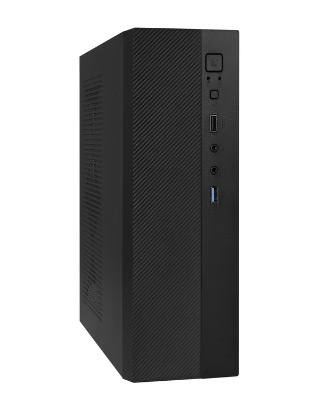

MI-301U
MI-301U

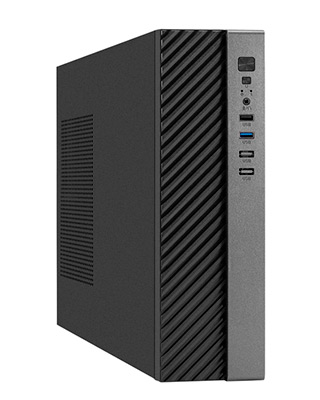

MI-302U
MI-302U

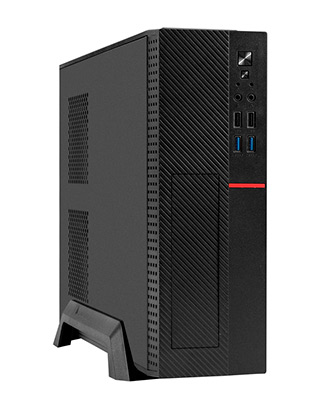

MI-307U2
MI-307U2
Case TypeDesktopDesktopDesktopDesktopDesktopDesktopDesktopDesktop
Motherboard SupportmATXmATXmATXmATXmATXmATXmATXmATX
Chassis MaterialSteelSteelSteelSteelSteelSteelSteelSteel
Material Thickness, mm0,60,60,60,60,60,70,60,6
Material of front panelPlasticPlasticPlasticPlasticPlasticPlasticPlasticPlastic
Material of left(top) panelSteelSteelSteelSteelSteelSteelSteelSteel
Material of right panel------SteelSteel
Screwless AccessYesYesYesYesYesYesYesYes
Number of screws for mounting the side panel, pcs11111144
Hinge For The Lock------YesYes
Case ColorBlackBlackBlackBlackBlackBlackBlackBlack
Chassis ColorSilverSilverSilverBlackSilverBlackBlackBlack
Power
PSU TypeSFXSFXSFXSFXSFXFlex ATXTFXSFX
PSU modelsM300, M350, M400, M450,M300, M350, M400, M450,M300, M350, M400, M450,M300, M350, M400, M450,M300, M350, M400, M450,1U-F200S, 1U-F250S, 1U-F300STPS300, TPS350, TPS400, TPS450M300, M350, M400, M450,
Recommended ExeGate PSUSeries MSeries MSeries MSeries MSeries M1U-F200S, 1U-F250S, 1U-F300SSeries Special TPSSeries M
Construction
External 5,25" Drive Bay11111--1
Internal 3,5" Drive Bay11111112 (1 instead 1 x 5.25")
Internal 2,5" Drive Bay1111-4 (1 instead 1 x 3.5")4 (1 instead 1 x 3.5", 1 FAN 80x80 mm)3 (1 instead 1 x 5.25")
Expansion Slots4, low profile4, low profile4, low profile4, low profile4, low profile1, low profile4, low profile4, low profile
Cooling System------
Places for installation on the front panel-----1 x 8 cm (instead 1 SSD 2.5")1 x 8 cm (instead 1 SSD 2.5")-
Places to install on the side panel-----2 x 6 cm-1 x 80x25mm, 1 x 80x15mm
Recommended ExeGate fans-----6 cm, 8 cm8 cm80x25 mm, 80x15 mm
Interfaces
Interface locationOn the front panelOn the front panelOn the front panelOn the front panelOn the front panelOn the front panelOn the front panelOn the front panel
USB 2.0 Type-A22212112
USB 3.2 Gen1 Type-A-1-2-112
Audio I/O Ports2 x 3.5mm2 x 3.5mm2 x 3.5mm2 x 3.5mm2 x 3.5mmHD Audio 2 x 3.5mm1 x HD Audio 3.5mm 4pin Combo (Line+Mic)HD Audio 2 x 3.5mm
Other parameters
Max. motherboard length, mm220220220220220192244244
Max. height of the CPU fan, mm7070707070707070
Max. PSU length, mm130 (SFX-L) instead 5.25" and 3.5"130 (SFX-L) instead 5.25" and 3.5"130 (SFX-L) instead 5.25" and 3.5"130 (SFX-L) instead 5.25" and 3.5"130 (SFX-L) instead 5.25" and 3.5"225230100 (SFX)
Max. PSU length with drive opposite, mm100 (SFX)100 (SFX)100 (SFX)100 (SFX)100 (SFX)---
Max. SVGA length, mm220 (low profile only)220 (low profile only)220 (low profile only)220 (low profile only)220 (low profile only)225 (low profile only)250 (low profile only)240 (low profile only)
Max. SVGA length with drive opposite, mm-------220 (low profile only)
Foot standYesYesYesYesYes4-Yes
Chassis dimensions
Width, mm95959595959598100
Height, mm285285285285285290330305
Depth, mm355355355355355260270380
Case Dimensions
Width, mm95959595959598102
Height, mm285285285285285290330310
Depth, mm400400400400400295300418
Carton Dimensions
Width, mm140140140140140140140160
Height, mm440440440440440340335375
Depth, mm450450450450450330380465
Net Weight , kg2,22,22,22,22,221,72,85
Gross Weight , kg------23,4
PSU models, PN/EAN
w/o PSUEX268692
4895205104969
EX288779
4895205126602
EX268697
4895205104976
EX296292
4895205162792
EX268702
4895205104983
EX291267
4895205128996
EX298790
4895205185104
EX298770
4895205184985
200WEX291268
4895205129009
250WEX291269
4895205129016
300WEX268688
4895205104846
EX288780
4895205126619
EX268693
4895205104884
EX296294
4895205162808
EX268698
4895205104921
EX291270
4895205129023
EX298792
4895205185111
EX298775
4895205184992
350WEX268689
4895205104853
EX288781
4895205126626
EX268694
4895205104891
EX296295
4895205168077
EX268699
4895205104938
EX298793
4895205185128
EX298776
4895205185005
400WEX268690
4895205104860
EX288782
4895205126633
EX268695
4895205104907
EX296296
4895205162815
EX268700
4895205104945
EX298794
4895205185135
EX298777
4895205185012
450WEX268691
4895205104877
EX288783
4895205126640
EX268696
4895205104914
EX296297
4895205172579
EX268701
4895205104952
EX298795
4895205185142
EX298778
4895205185029
