Series UN

Optional accessories Accessories

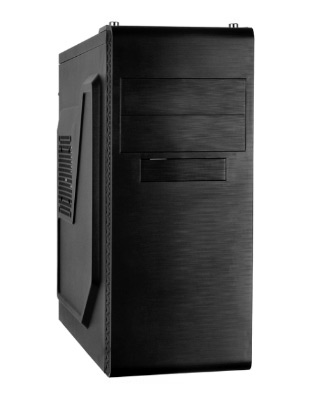

Model UN-603
UN-603

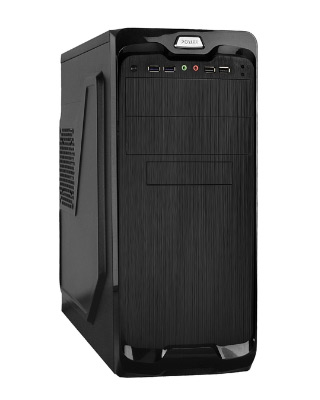

UN-604
UN-604

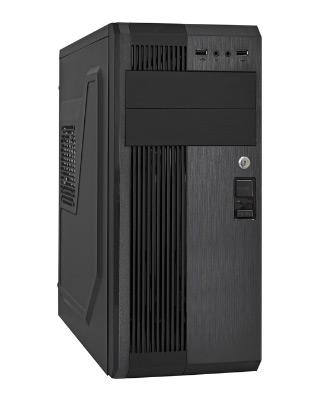

UN-605B
UN-605B
Cases Features
Case TypeMidiTowerMidiTowerMidiTower
Motherboard SupportATXATXATX
Chassis MaterialSteelSteelSteel
Material Thickness, mm0,50,50,5
Screwless AccessYesYesYes
Number of screws for mounting the side panel, pcs4-4
Hinge For The LockYesYesYes
Case ColorBlackBlackBlack
Chassis ColorSilverSilverSilver
Power
PSU TypeATXATXATX
Power supply locationAt the top of the rear sideAt the top of the rear sideAt the top of the rear side
PSU models*UN350, UN400, UN450, UN500, UN600UN350, UN400, UN450, UN500, UN600UN350, UN400, UN450, UN500, UN600
Recommended ExeGate PSUSeries UNSeries UNSeries UN
Construction
External 5,25" Drive Bay1 (2 if the length of the mat. boards - more than 220 mm)22
External 3,5" Drive Bay1--
Internal Drive Bay 5,25"--2
Internal 3,5" Drive Bay555
Internal 2,5" Drive Bay111
Expansion Slots666
Cooling System
Places for installation on the rear panel8 cm x 1 or 9,2 cm x 18 cm x 1 or 9,2 cm x 18 cm x 1 or 9,2 cm x 1
Places to install on the side panel8 cm x 1 or 12 cm x 1-8 cm x 1 or 12 cm x 1
Interfaces
Interface locationOn the top cover of the caseAt the top of the front panelAt the top of the front panel
USB 2.0 Type-A222
USB 3.2 Gen1 Type-A-2-
Audio I/O PortsAudio 2 x 3.5mm (AC97)Audio 2 x 3.5mm (AC97)Audio 2 x 3.5mm (AC97)
Other parameters
Max. motherboard length, mm244244244
Max. height of the CPU fan, mm140130145
Max. PSU length, mm240210240
Max. PSU length with drive opposite, mm210250220
Max. SVGA length, mm240250240
Max. SVGA length with drive opposite, mm210220205
Chassis dimensions
Width, mm175175175
Height, mm405405405
Depth, mm380380380
Case Dimensions
Width, mm180179180
Height, mm420422410
Depth, mm420422425
Carton Dimensions
Width, mm210213210
Height, mm455445455
Depth, mm460465465
Net Weight , kg4,143,5
PSU models, PN/EAN
w/o PSUEX269434
4895205105041
EX269439
4895205104990
EX283220
4895205117129
350WEX269430
4895205105089
EX269435
4895205105034
EX283222
4895205117082
400WEX269431
4895205105072
EX269436
4895205105027
EX283221
4895205117099
450WEX269432
4895205105065
EX269437
4895205105010
EX283224
4895205117105
500WEX269433
4895205105058
EX269438
4895205105003
EX283225
4895205117112
600WEX294576
4895205138964
EX287030
4895205124646
EX294577
4895205138971
* At a customer's request Computer Cases can be completed with any PSU
