Model |

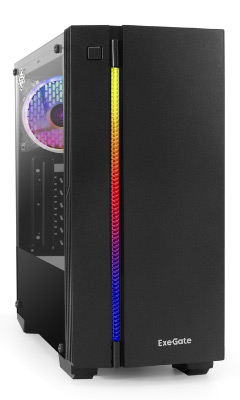

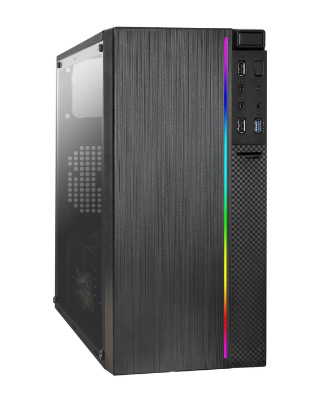

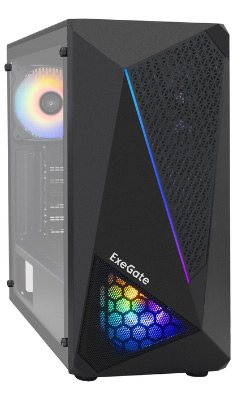

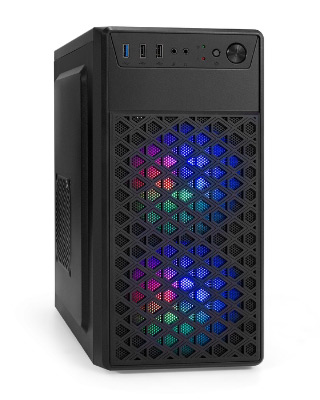

       EVO-9201 |   mEVO-9301 |
Cases Features |
Case Type | Miditower | Minitower |
Material Thickness, mm | 0.5
| 0.4
|
Motherboard Support | ATX
| mATX
|
Screwless access | Yes
| Yes
|
Number of screws for mounting the side panel, pcs | 4
| 4
|
Window on the side panel | Yes
| Yes
|
LED backlight | Yes
| Yes
|
Internal 3,5" Drive Bay | 2
| 2
|
Internal 2,5" Drive Bay | 1
| 1
|
Interfaces |
Front I/O Ports | 2
| 2
|
USB | 1
| 1
|
Interface location | At the top of the front panel
| At the top of the front panel
|
Expansion Slots | 7
| 4
|
Cooling System: |
| - |
Rear Panel | 12 cm x 1, RGB
| - |
Fan Support: |
Front Panel | 12 cm x 2
| 12 cm x 2
|
Rear Panel | - | 8 cm x 1
|
PSU models | 500NPX, 600NPX, 700NPX
| 500NPX, 600NPX, 700NPX
|
Power supply location | At the top of the rear side
| At the top of the rear side
|
Max. motherboard length, mm | 244
| 244
|
Max. height of the CPU fan, mm | 150
| 135
|
Max. PSU length, mm | 260
| 230
|
Max. PSU length with drive opposite, mm | 145
| 230
|
Max. SVGA length, mm | 265
| 240
|
Max. SVGA length with drive opposite, mm | 265
| 240
|
Case Color | Black
| Black
|
Chassis Color | Black
| Black
|
Chassis dimensions |
Width, mm | 180
| 170
|
Height, mm | 410
| 350
|
Depth, mm | 330
| 275
|
Case Dimensions |
Width, mm | 190
| 180
|
Height, mm | 440
| 360
|
Depth, mm | 385
| 320
|
Carton Dimensions |
Width, mm | 240
| 205
|
Height, mm | 460
| 355
|
Depth, mm | 500
| 390
|
Net Weight , kg | 4.3
| 2.8
|
PSU models, PN/EAN |
w/o PSU | EX283741 4895205117556 | EX283754 4895205117624 |
500W | EX283744 4895205117587 | EX283749 4895205117594 |
600W | EX283742 4895205117563 | EX283752 4895205117600 |
700W | EX283743 4895205117570 | EX283753 4895205117617 |
* At a customer's request Computer Cases can be completed with any PSU |
