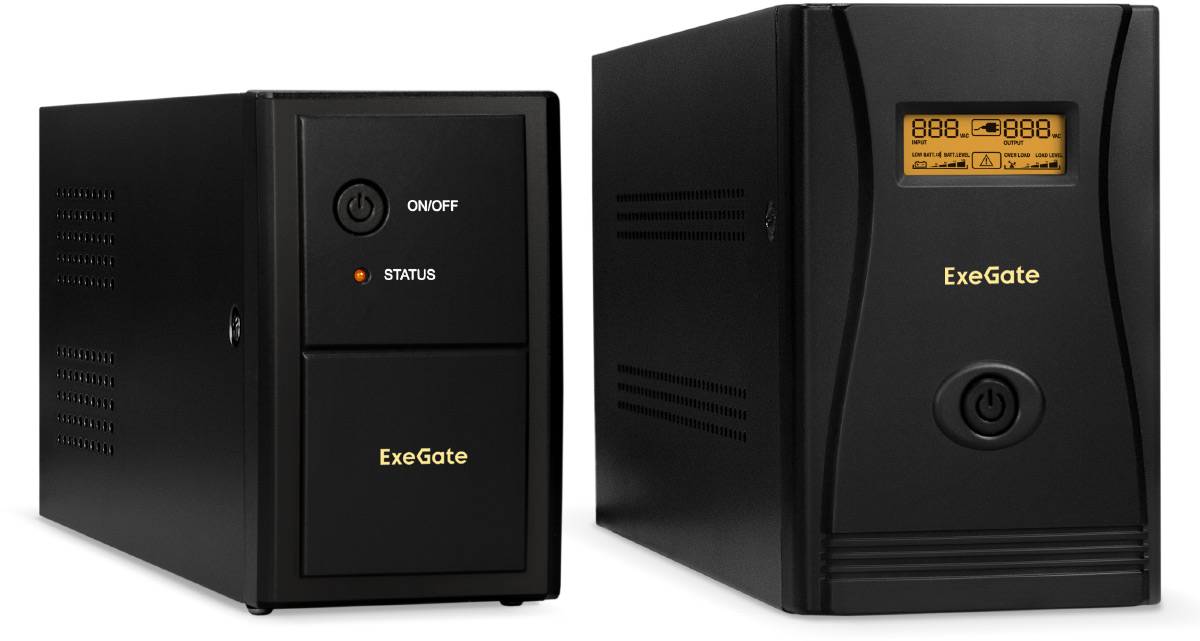

Power Smart

Smart ULB-600 LCD Back NNB-800 Back ULB-1000 Back ULB-1500
Smart ULB-600 Smart ULB-800 Smart ULB-1000 Smart ULB-1500


Input Frequency, Hz 50/60
Input Voltage, V 145-290
Nominal Input Voltage, V 220
Automatic Voltage Regulation (AVR) ±15%
Output Voltage, V 220±10%
Output Frequency, Hz 50/60
Output Waveform Modified Sine wave
Transfer Time 6 ms typical
Batteries & Runtime
Battery Type Maintenance-free sealed lead-acid battery
Recharge Time 6-8 hour(s) to 90% after complete discharge
Protection Against Overcharge, Overload, Surges, Lightning, and other power disturbances.
LCD-display AC Input Voltage
Output Voltage
Battery Capaciti
Load level
UPS is working in battery mode
UPS is working in AC mode
UPS can turn on automaticly
Bazzer is forbided, no sounding, but while over-load and low battery, UPS still with sound indication.
Battery Mode Lights icon "Battery"
Low Battery Lights icon "Battery"
Fault Mode Lights icon "Failure"
Audible Alarm
Battery Mode Sounding every 8 seconds
Low Battery Sounding every 1 second
Fault Mode Continuously sounding
Operating Environment, °C 0-40
Operating Relative Humidity, % 0-95
Software UPSILON v. 2000

Model Smart ULB-600 LCD Smart ULB-800 LCD Smart ULB-1000 LCD Smart ULB-1500 LCD
Output power capacity VA/W 600/360 800/480 1000/600 1500/900
Battery type 12V /7AH x 1 12V /9AH x 1 12V /7AH x 2 12V /9AH x 2
Input Outlets Schuko plug (CEE 7/4); Undetachable Schuko plug (CEE 7/4); Undetachable Schuko plug (CEE 7/4) Schuko plug (CEE 7/4)
Output Outlets Socket CEE 7/3 x 2 Socket CEE 7/3 x 2 Socket CEE 7/3 x 4 Socket CEE 7/3 x 4
Dimensions (LxWxH), mm 300x95x141 314x97x143 345x146x163 345x146x163
Weight, kgs 4,25 4,9 7 9
P/N EP212515 EP212517 EP212519 EP212520
EAN 4897040855044 4897040855051 4897040855013 4897040855020
