Uninterruptible Power Supply (UPS)

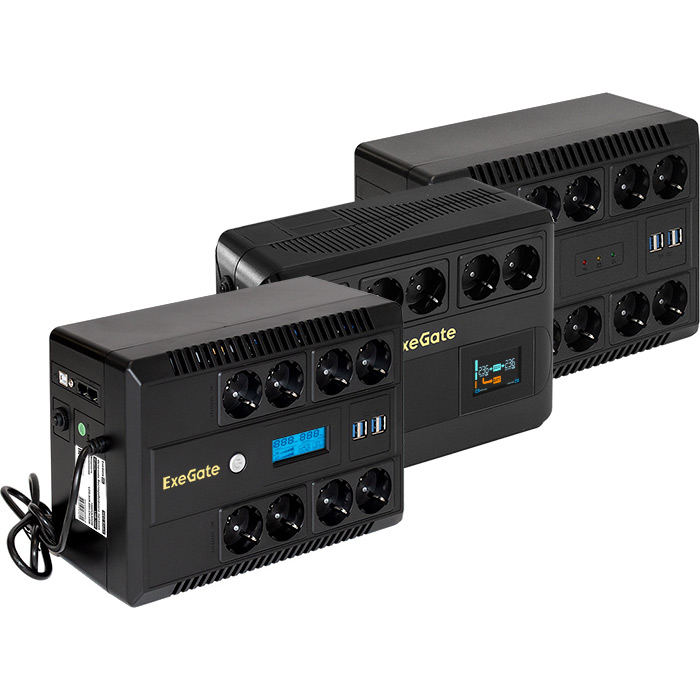

Series Neo
Neo

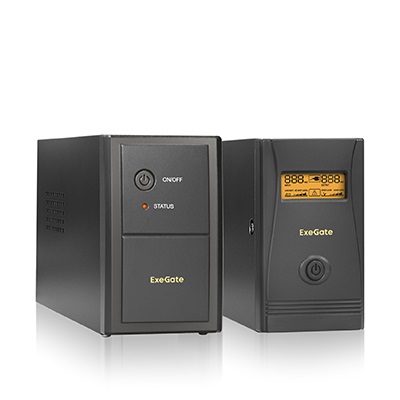

Power Back
Power Back

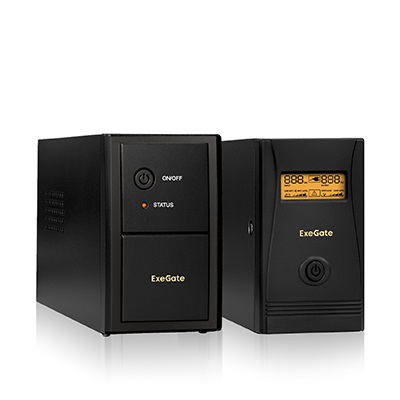

Power Smart
Power Smart
Model LLB-400
LLB-600
BNB-400 Black/Silver/Red Blue/Green/Purple BNB-600 Black/Silver/Red Blue/Green/Purple NNB-800 UNB-1000 UNB-1500 ULB-400 LCD
ULB-600 LCD
ULB-800 LCD
ULB-1000 LCD ULB-1500 LCD
Output power capacity VA/W 400/240
600/360
400/240 600/360 800/480 1000/600 1500/900 400/240
600/360
800/480
1000/600 1500/900
INPUT Nominal Input Voltage, V 220
Input Voltage, V 145-290
OUTPUT Output Voltage, V 220 ± 10%
Output Frequency, Hz 50 ± 2%
Output Wave form PWM (DC Mode)
Protection Battery low voltage protection Yes
Short circuit protection Yes
Overload protection Yes
Automatic Voltage Regulation (AVR) - ±15%
Batteries & Runtime Transfer Time Typical 2~6 ms, Max. 10ms

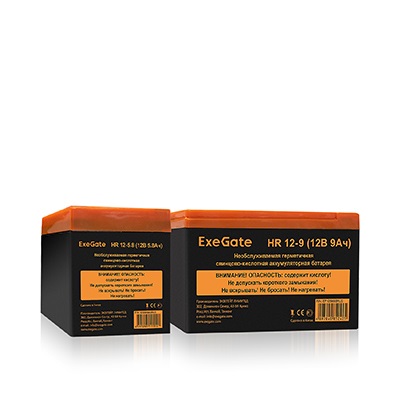

Battery Type Maintenance-free sealed lead-acid battery
Battery and Number of Battery 12V / 4,5Ah x 1
12V / 7Ah x 1
12V / 4,5Ah x 1 12V / 7Ah x 1 12V / 9Ah x 1 12V/ 7Ah x 2 12V / 9Ah x 2 12V / 4,5Ah x 1
12V / 7Ah x 1
12V / 9Ah x 1
12V / 7Ah x 2 12V / 9Ah x 2
Recharge Time 6-8 hours recover to 90% capacity
Indicator and Alarm Indicator LED LCD
Beep Alarm Yes
Mode Battery Mode
Low Battery
Fault Mode
Input/Output voltage
Operation mode UPS
Remaining battery power
Power loading
Failure of UPS
Environment Protection of phone/ Ethernet line - Yes
Input Outlets Schuko plug (CEE 7/4); Undetachable Schuko plug (CEE 7/4) Schuko plug (CEE 7/4); Undetachable Schuko plug (CEE 7/4)
Output Outlets Socket CEE 7/3 x 2 Socket CEE 7/3 x 4 Socket CEE 7/3 x 2 Socket CEE 7/3 x 4
Date Interface - USB
Demension, mm 255x98x140
300x95x141
255x98x140 300x95x141 314x97x143 345x146x163 314x97x143 345x146x163
Weight, kgs 3,6
4,3
3,6 4,3 5,8 9,5 11,5 3,55
4,3
5,8
9,5 11,5
