Sliding Rails

Specification

Applications Sliding Rails for 19" Rackmount Server Cases and other devices


Model Expandable core length
(maximum travel distance)
Mounting clearance P/N EAN
Min, mm Max, mm

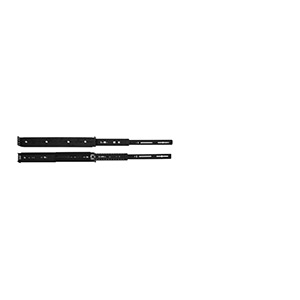

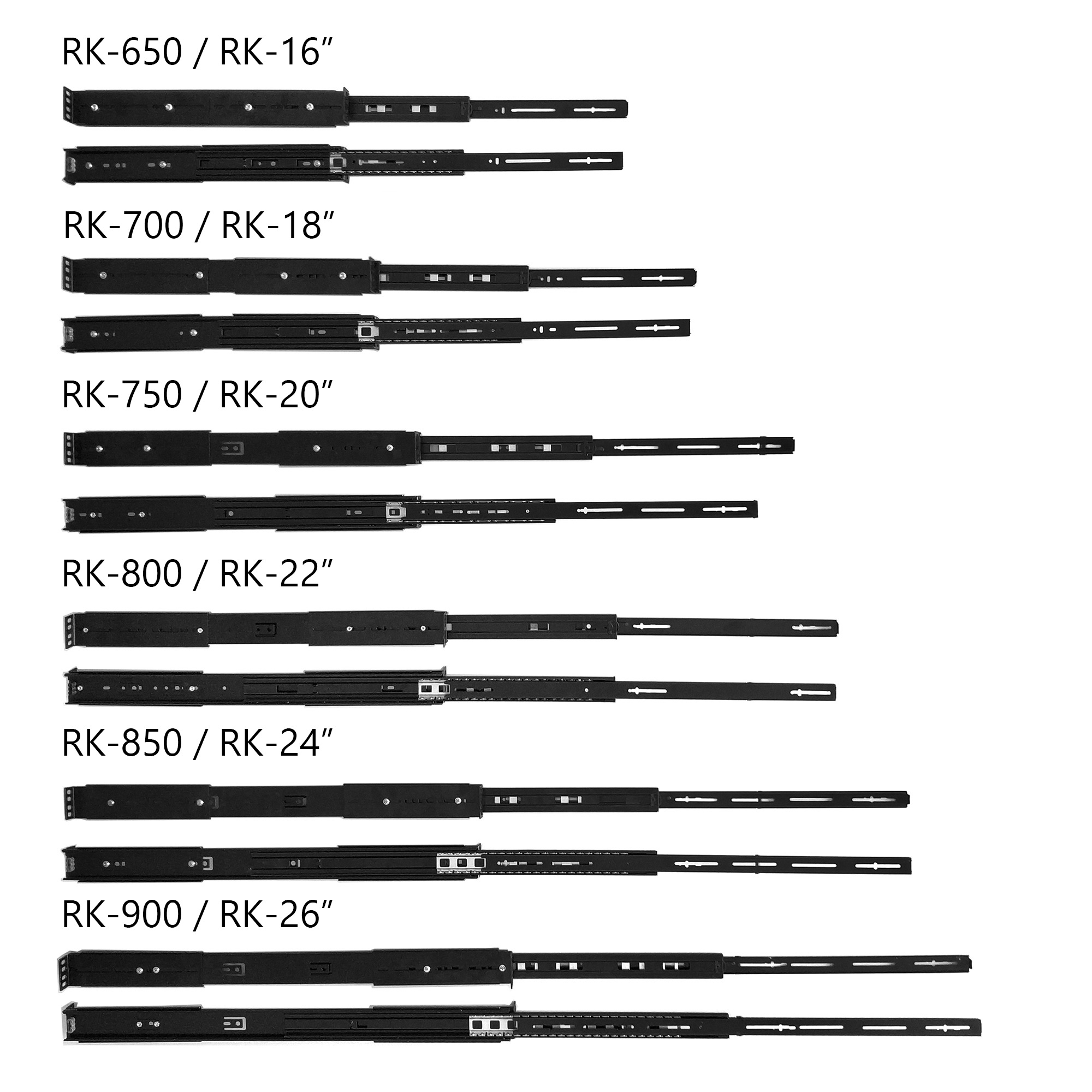

RK-650 16" 400 600 EX251180 4897040859721

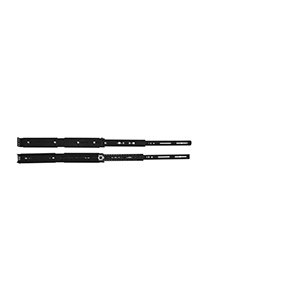

RK-700 18" 450 650 EX251179 4897040859738

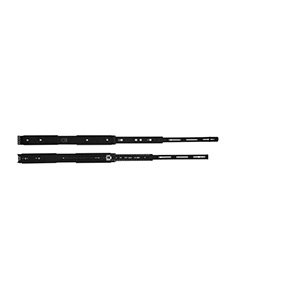

RK-750 20" 500 700 EX174452 4897040859745

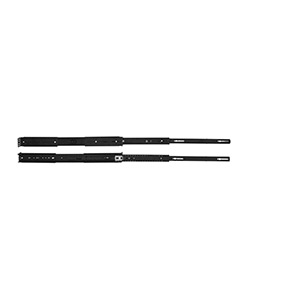

RK-800 22" 550 750 EX194264 4897040854009
RK-801 22" 550 750 EX271829 4895205105645

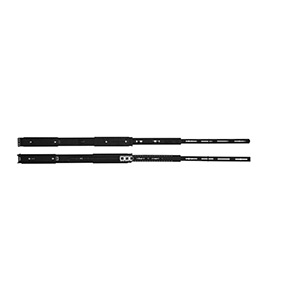

RK-850 24" 600 850 EX261503 4897040855020


Compatibility of rails and rackmounts ExeGate

Model RK-700 RK-750 RK-800 RK-801 RK-850
1U250-01 Need to modify Yes Need to modify Need to modify Need to modify
1U550-04 - Yes Yes Yes Need to modify
1U650-04 - Need to modify Yes Need to modify Yes
1U660-HS04 - - - - -
2U390-04 Yes Need to modify Need to modify Need to modify Need to modify
2U550-06/2U2088 Yes Yes Yes Need to modify Need to modify
2U650-06/2U2098L - Yes Yes Need to modify Yes
2U660-HS06 - Yes Yes Need to modify Yes
3U390-08 Yes Need to modify Need to modify Need to modify Need to modify
4U450-16/4U4019S Yes Yes Need to modify Need to modify Need to modify
4U450-26/4U4020S Yes Yes Need to modify Need to modify Need to modify
4U480-06/4U4021S Yes Yes Need to modify Need to modify Need to modify
4U480-15/4U4132 Yes Need to modify Need to modify Need to modify Need to modify
4U545-07/4U4130 Yes Yes Need to modify Need to modify Need to modify
4U650-010/4U4139L - Yes Yes Need to modify Need to modify
