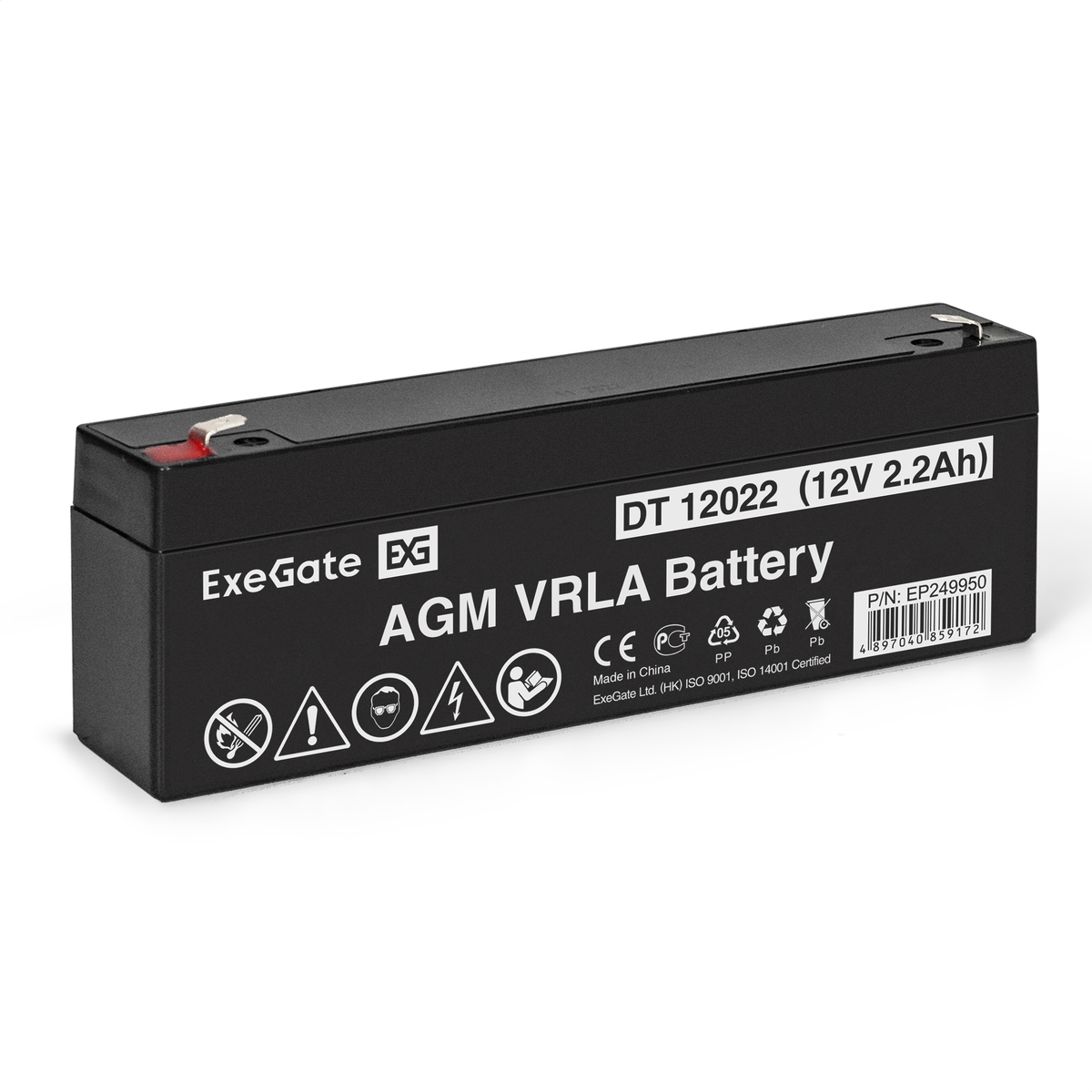

ExeGate dt series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging mode (buffer mode).

The case is made of plastic that does not support Gorenje. Internal gas recombination system, does not require adding water. Operation is allowed in any position other than upside down. Calcium-doped lead plates provide high energy density.

Specification

AppointmentFor UPS
Voltage, V12
Battery capacity, Ah2,2
Standards and certificationsDeclaration of conformity GOST 12.2.007.12-88;
GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10;
GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4
Battery Life
In buffered mode5 years (at 25°C)
In cyclic mode1000 cycles at 30% depth of discharge
Number of charge-discharge cycles in cyclic mode at 100% discharge240
Self-discharge3% per month at 20°C
Charge methodConstant voltage charge (25°C)
Cyclic mode2.4 - 2.5 V / cell
Buffer mode2.27 - 2.3 V / cell
Internal resistance of a fully charged battery (25°C), m?45
Cabinet materialABS plastic
Temperature modes
Storagefrom -15°C to + 50°C
Chargefrom -10°C to + 50°C
Dischargefrom -20°C to + 50°C
Warranty12 months if operating conditions are observed
Terminal typeF1
Maximum discharge current (25 ° C)47A(5c)
Height with terminal, mm66
Delivery setBattery
Product size, mm178x35x60
Weight, kg0,95
P/NEP249950
EAN4897040859172
