Special Appliances (Pure Sine Wave)

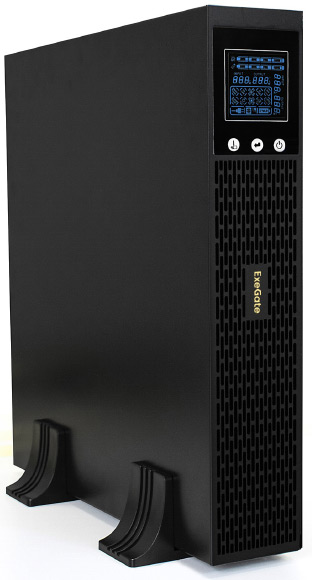

Series SinePower UHBDevices of the UHB series have an output voltage in the form of a pure undistorted sine wave and provide stable power to computer equipment (PCs, servers, network equipment). Horizontal and vertical placement is allowed, as well as installation in a 19"rack. All UPS units are equipped with an LCD display for higher operability and visualization. |
|
Features | UPS of this series have a linear-interactive architecture, a sinusoidal output voltage, and an LCD display that displays information about the parameters of the power supply and the device. Equipped with a built-in voltage stabilizer (AVR). The load is connected to IEC320 C13 output sockets. |
Model | Full power capacity, VA / Active power capacity, W | Batteries type and capacity | Product size, mm | Net weight, kg | P/N | EAN |
SinePower UHB-1000.LCD.AVR.C13.RJ.USB.2U | 1000/800 | ExeGate HR 12-7.2 (12V/7,2Ah) 2pcs. | 455 x 445 x 88 | 19 | EP285642 | 4895205121768 |
SinePower UHB-1000.LCD.AVR.1SH.4C13.RJ.USB.2U | 1000/800 | ExeGate HR 12-7.2 (12V/7,2Ah) 2pcs. | 455 x 445 x 88 | 19 | EX293051 | 4895205133280 |
SinePower UHB-2000.LCD.AVR.C13.RJ.USB.2U | 2000/1600 | ExeGate HR 12-7.2 (12V/7,2Ah) 4pcs. | 535 x 445 x 88 | 29 | EP285644 | 4895205121775 |
SinePower UHB-2000.LCD.AVR.1SH.4C13.RJ.USB.2U | 2000/1600 | ExeGate HR 12-9 (12V/9Ah) 4pcs. | 535 x 445 x 88 | 29 | EX293052 | 4895205133297 |
SinePower UHB-3000.LCD.AVR.C13.RJ.USB.2U | 3000/2400 | ExeGate HR 12-9 (12V/9Ah) 4pcs. | 535 x 445 x 88 | 31,5 | EP285645 | 4895205121782 |
SinePower UHB-3000.LCD.AVR.1SH.4C13.RJ.USB.2U | 3000/2400 | ExeGate HR 12-9 (12V/9Ah) 4pcs. | 535 x 445 x 88 | 31,5 | EX293054 | 4895205133303 |
Input | |
Nominal input voltage | 230V |
Input voltage range for mains operation | 145-275V |
Input frequency | 45-65Hz |
Output, mains mode | |
Output voltage | 220±8% V |
Output frequency | 50±0.5 Hz |
Output, backup mode | |
Output voltage | 220-230V |
Output frequency | 50±0.5 Hz |
Waveform type | Pure sine wave |
Transfer time | 2-6 ms typical, 10 ms maximum |
Protection | |
Surge Protection and Filtering | Full time multi-pole noise filtering, peaks and spikes suppression |
Battery type | Sealed lead-acid battery, maintenance-free |
Connections | |
Input connection | IEC320 C14 |
Output connection | IEC320 C13, 8pcs |
Interface port | USB |
Data Line Protection | Cable modem protection, RJ45 network line |
Environmental | |
Operating Temperature | 0-40 °C |
Operating Relative Humidity | 0-90% |
Front panel color | Black |
Cabinet made | Steel |
Tower location | Yes |
Desktop location | Yes |
19" rack compatibility | Yes |
Rack space height | 2U |
Software compatibility | Windows XP/7/8/8.1/10; Mac OS; Linux |
Delivery set | UPS, power cord, USB communication cable, CD with managing software, manual |
