Server and industrial (RM)
 |

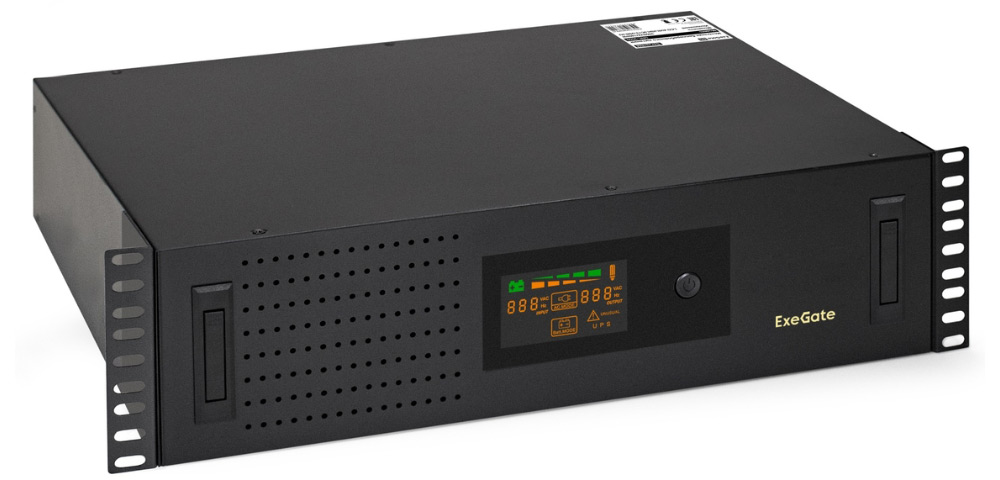

Series ServerRM UNLUNL series battery backup system provides robust and steady electric supplyment safety for appliances like server equipement, active networking devices, personal computers, and other critical electronic and digital units. They can be located as a desktop, as a tower, and mounted to 19" rack, really increasing a usability of a working space. UNL has a multifunction LCD display for operability and visualization. |
| Features | UNL series can be mounted to 19" rack, they are based on line-interactive topology, they have AVR, and are available by 2 variants - with Euro type connections, and with IEC320 C13 connections. |
| Model | Output Outlets | P/N | EAN |
| ExeGate ServerRM UNL-800.LCD.AVR.2SH.3C13.USB.2U | 2xSchuko + 3xC13 | EX293849 | 4895205137523 |
| ExeGate ServerRM UNL-850.LCD.AVR.2SH.3C13.USB.2U | 2xSchuko + 3xC13 | EX297737 | |
| ExeGate ServerRM UNL-1000.LCD.AVR.2SH.3C13.USB.2U | 2xSchuko + 3xC13 | EX293850 | 4895205137530 |
| ExeGate ServerRM UNL-1500.LCD.AVR.EURO.RJ.USB.3U | 3xSchuko | EP270874 | 4895205105720 |
| ExeGate ServerRM UNL-1500.LCD.AVR.C13.RJ.USB.3U | 4xC13 | EP285776 | 4895205121997 |
| ExeGate ServerRM UNL-1500.LCD.AVR.2SH.4C13.RJ.USB.3U | 2xSchuko + 4xC13 | EX293056 | 4895205133464 |
| ExeGate ServerRM UNL-2000.LCD.AVR.2SH.3C13.USB.2U | 2xSchuko + 3xC13 | EX293851 | 4895205137547 |
| ExeGate ServerRM UNL-3000.LCD.AVR.2SH.3C13.USB.3U | 2xSchuko + 3xC13 | EX293852 | 4895205137554 |
| Full power capacity, VA / Active power capacity | 1500/900W |
| Input | |
| Nominal input voltage | 230V |
| Input voltage range for mains operation | 145-290V |
| Input frequency | 50/60±5 Hz |
| Output | |
| Nominal output voltage | 230±10% V |
| Output frequency | 50/60±1 Hz |
| Waveform type | Stepped approximation to a sine wave |
| Protection | |
| Surge Protection and Filtering | Full time multi-pole noise filtering, peaks and spikes suppression |
| AVR | Yes |
| Transfer time | 4-8 ms typical, 13 ms maximum |
| Battery | |
| Battery type | Sealed lead-acid battery, maintaince-free |
| Typical recharge time | 6-8 hours to 90% charge level |
| Batteries type and capacity | ExeGate HR 12-9 (12V/9Ah), 2pcs |
| Connections | |
| Input connection | IEC320 C14 |
| Interface port | USB |
| Data Line Protection | Cable modem protection, RJ45 network line |
| Environmental | |
| Operating Temperature | 0-40 °C |
| Operating Relative Humidity | 0-90% |
| Audible noise at 1 meter from surface of unit | doesn't exceed 40dBa |
| Managibility | |
| LCD signes and simbols | Input/Output voltage UPS status Battery runtime percentage Utility power UPS fault |
| Audible alarms | |
| Backup mode | Every 8s |
| Low battery | Every 1s |
| Fault | Continuously |
| Front panel color | Black |
| Cabinet made | Steel |
| 19" rack compatibility | Yes |
| Rack space height | 3U |
| Product size | 355 x 482 x 129mm |
| Net weight | 14 kg |
| Software compatibility | Windows XP/7/8/8.1/10; Mac OS; Linux |
| Delivery set | UPS, power cord, USB communication cable, CD with managing software, manual |
