Model |

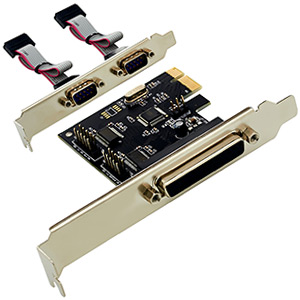

EXE-303 |

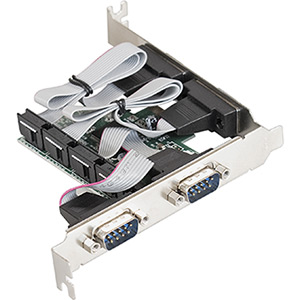

EXE-310 |

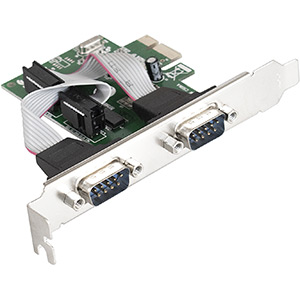

EXE-307 |
Overview |
PCIe Multi-I/O card use the chip of WCH382L, It supports the maximum rate of 2-Mbps and it can be used for PCIe bus DB25+DB9 Serial Parallel Combo expansion, and High speed serial port of PCIe with automatic hardware rate control, Serial port network, RS485 communication, Parallel / Printer port expansion. |
The PCI-Express I/O card uses the latest PCI-Express interface standard for expansion bus , enabling this card to be installed on any PCI-Express capable PC desktop system |
The PCI-Express I/O card uses the latest PCI-Express interface standard for expansion bus , enabling this card to be installed on any PCI-Express capable PC desktop system |
Chipset |
WCH382L |
WCH384L |
WCH382L |
Bus Interface |
PCI-Express with throughput up to 2.5Gbps |
PCI-Express with throughput up to 2.5Gbps |
PCI-Express with throughput up to 2.5Gbps |
Output interface |
|
|
|
RS232 Serial |
2 |
4 |
2 |
IEEE1284 |
1 |
No |
No |
Connectors |
DB9 Serial x 2 + DB25 Parallel x 1 |
DB9 Serial x 2 + DB9 Serial x 2 |
DB9 Serial x 2 |
Data rate |
up to 2M bytes |
up to 2M bytes |
up to 2M bytes |
Function |
16C550 / 16C552 / 16C554 and 16C750 UART, IEEE-1284 (SPP, PS2, EPP, ECP) |
16C450 / 16C550 UART |
16C550 / 16C552 / 16C554 and 16C750 UART |
System |
Windows 10, Windows 8, Windows 7, Windows XP, Windows 2000, Windows Server 2008, Windows Server 2003, Windows ME, Windows 98, Windows NT, Linux, DOS |
Packing size, mm |
120x20x70 |
140x20x120 |
120x20x90 |
Weight, g |
70 |
90 |
40 |
P/N |
EX281226 |
EX283705 |
EX283706 |
EAN |
4895205111882 |
4895205117259 |
4895205117266 |
