Patch Panel

Specification

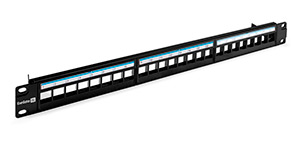

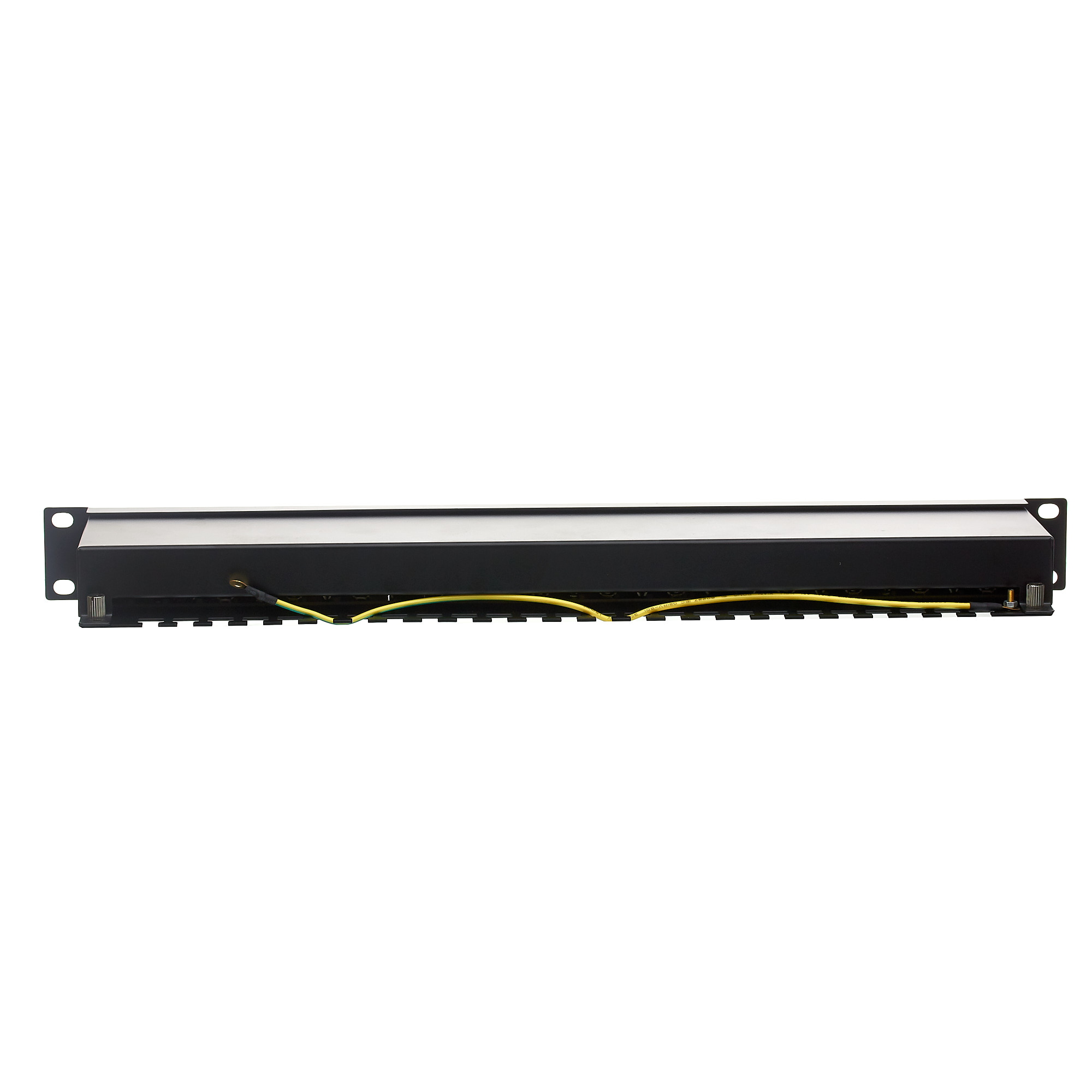

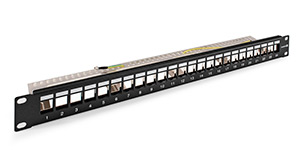

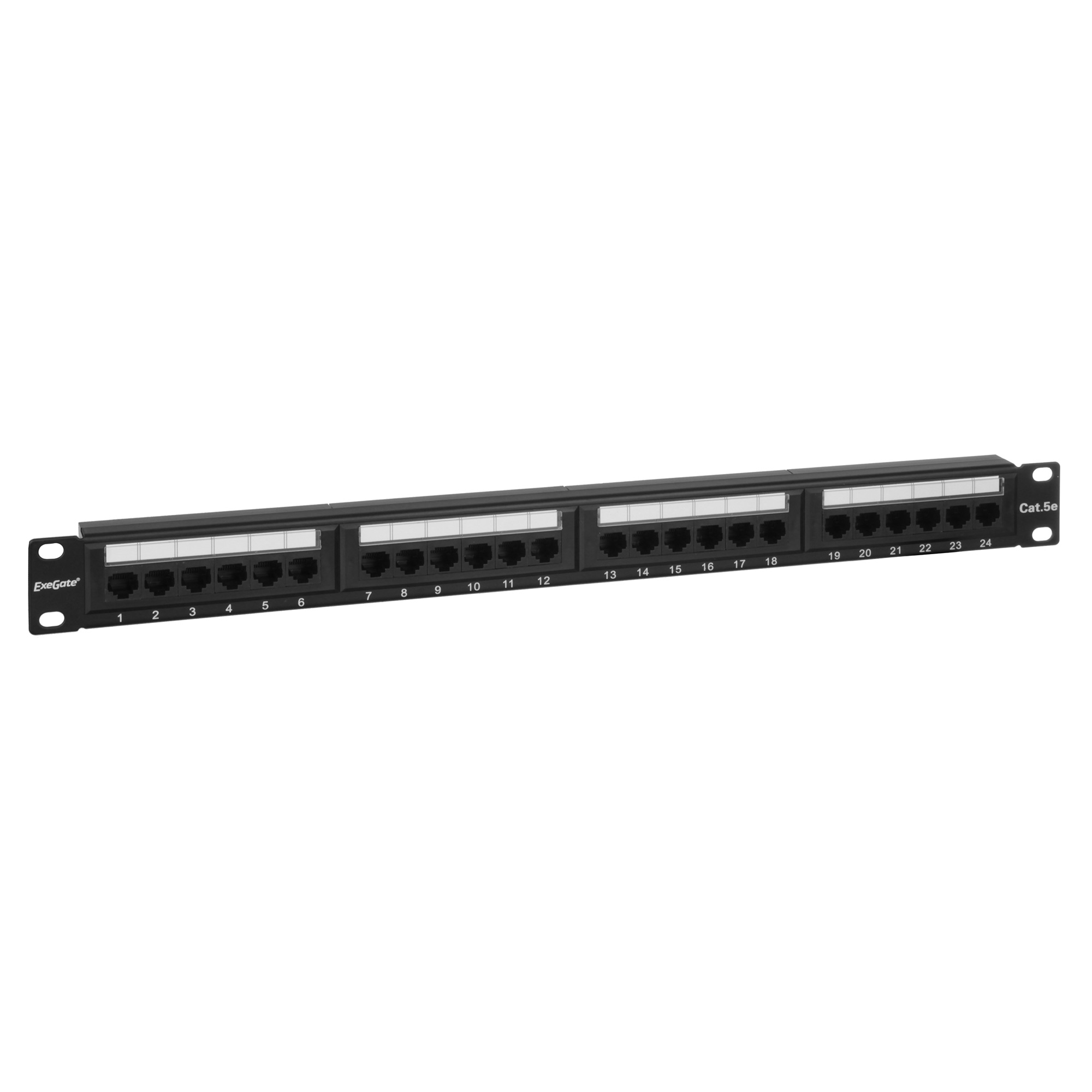

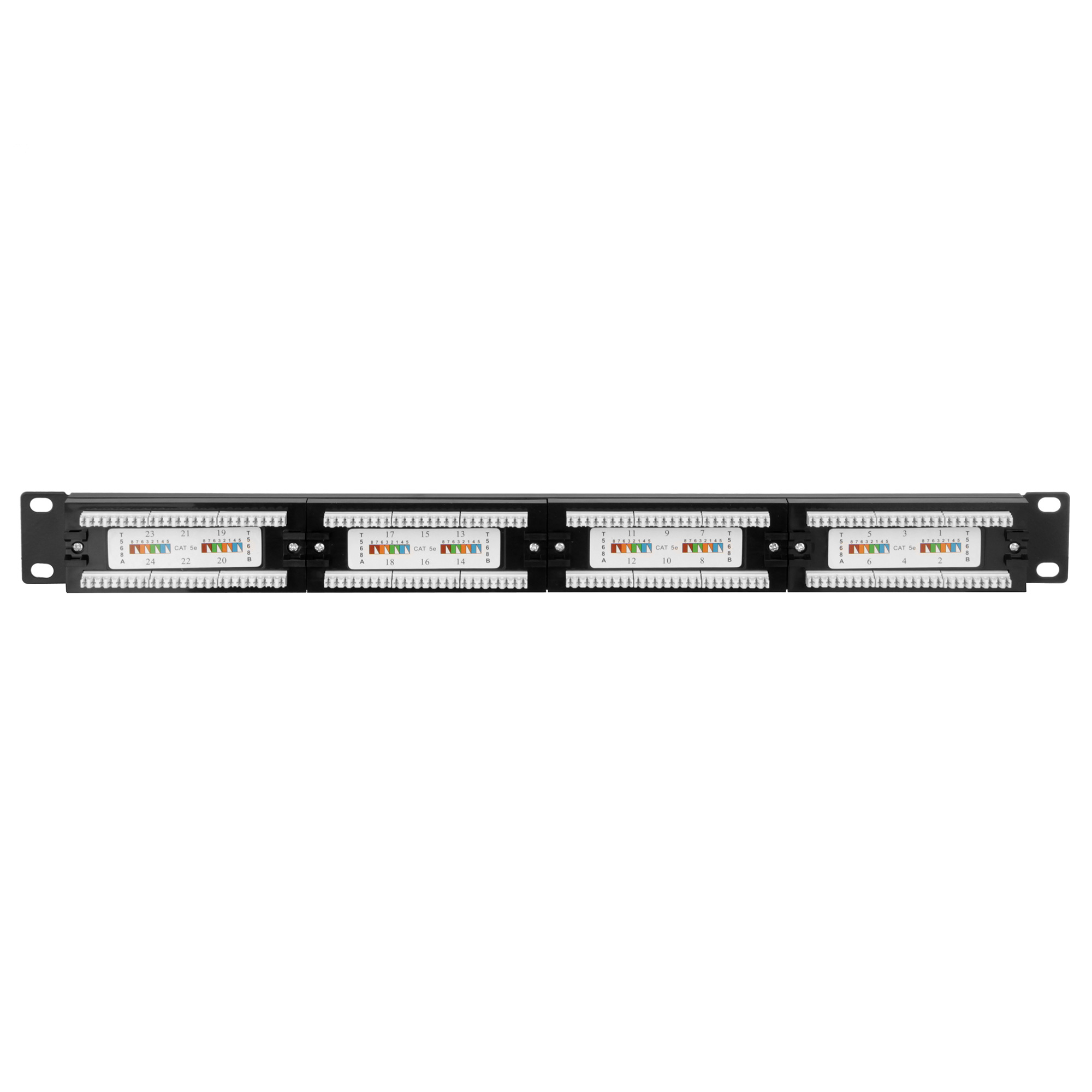

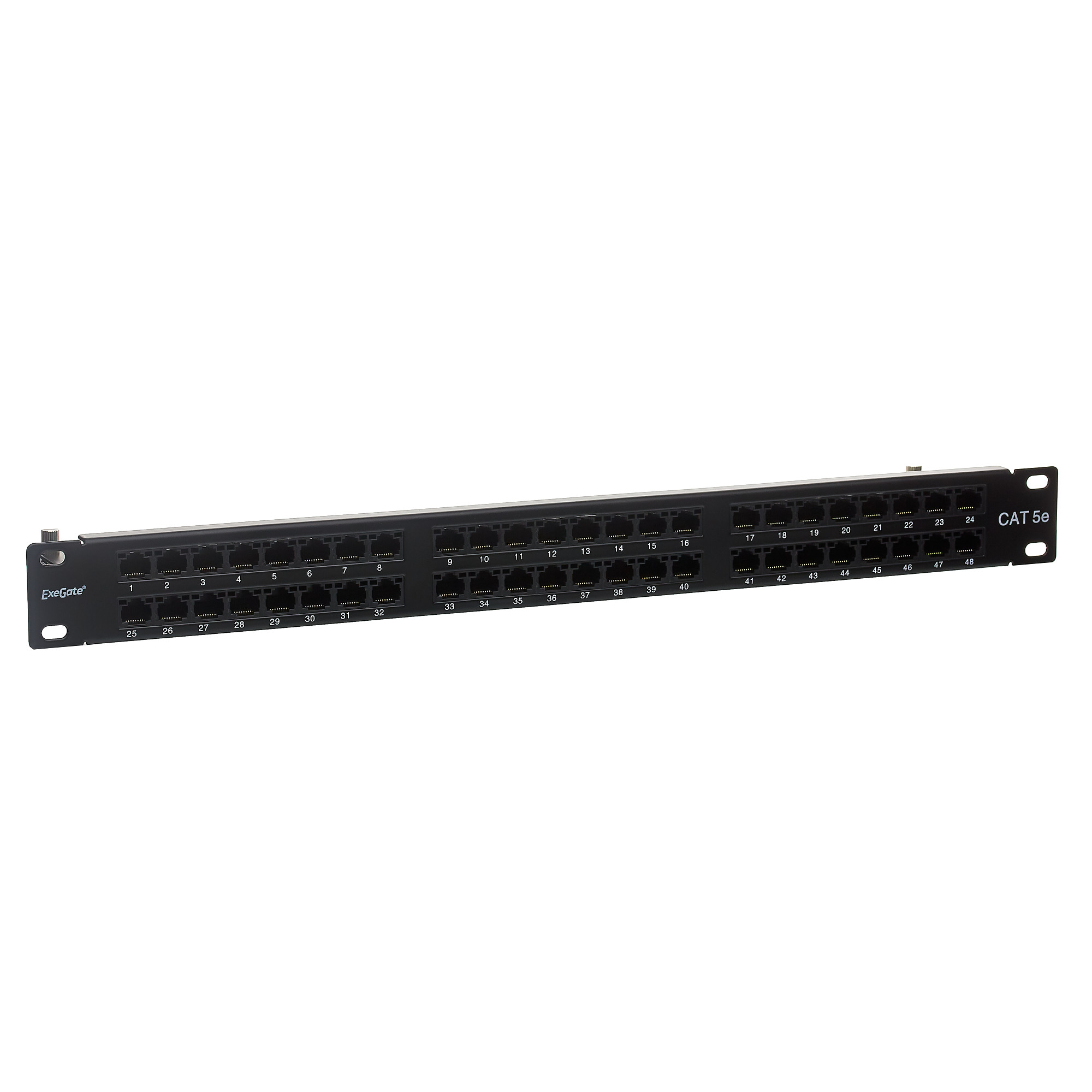

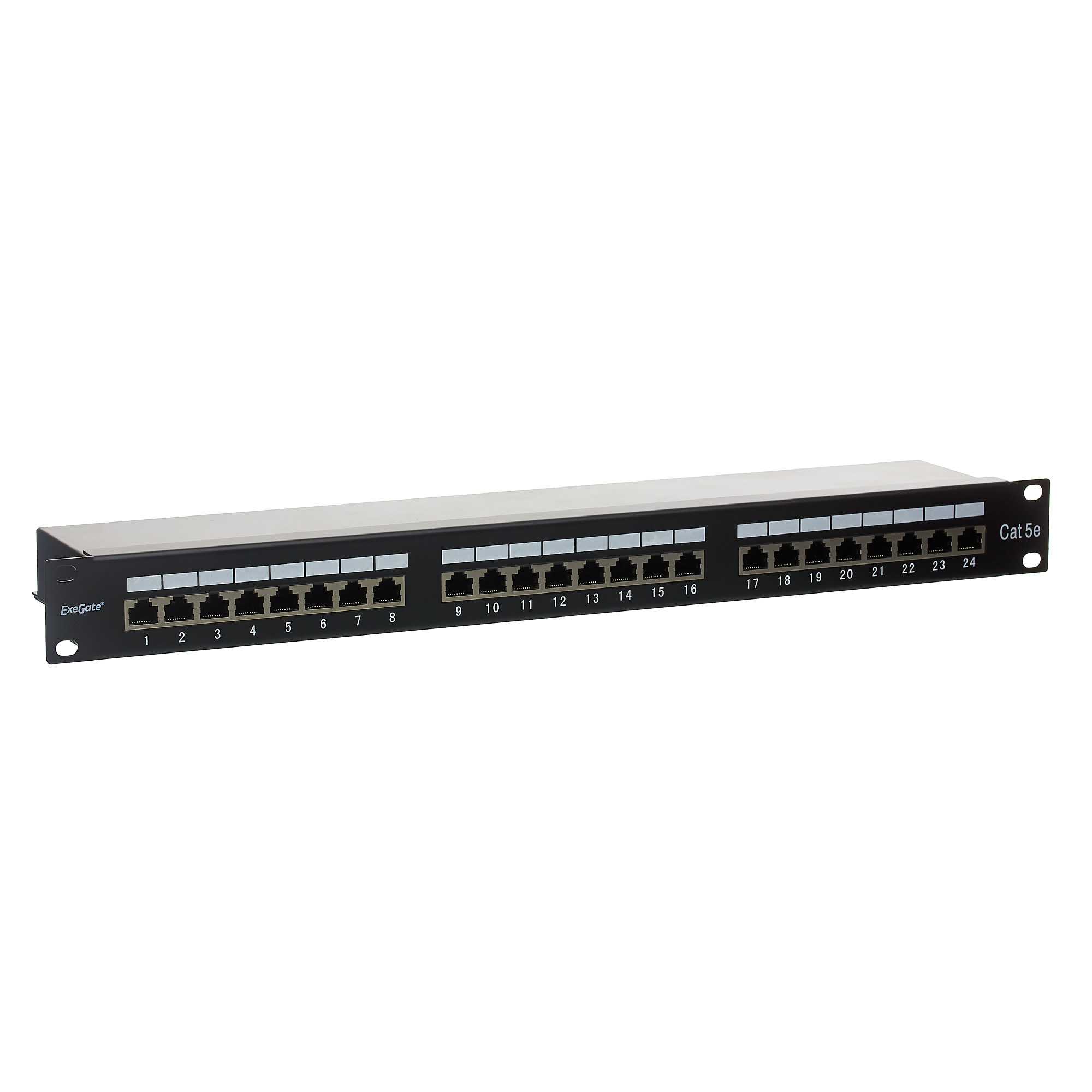

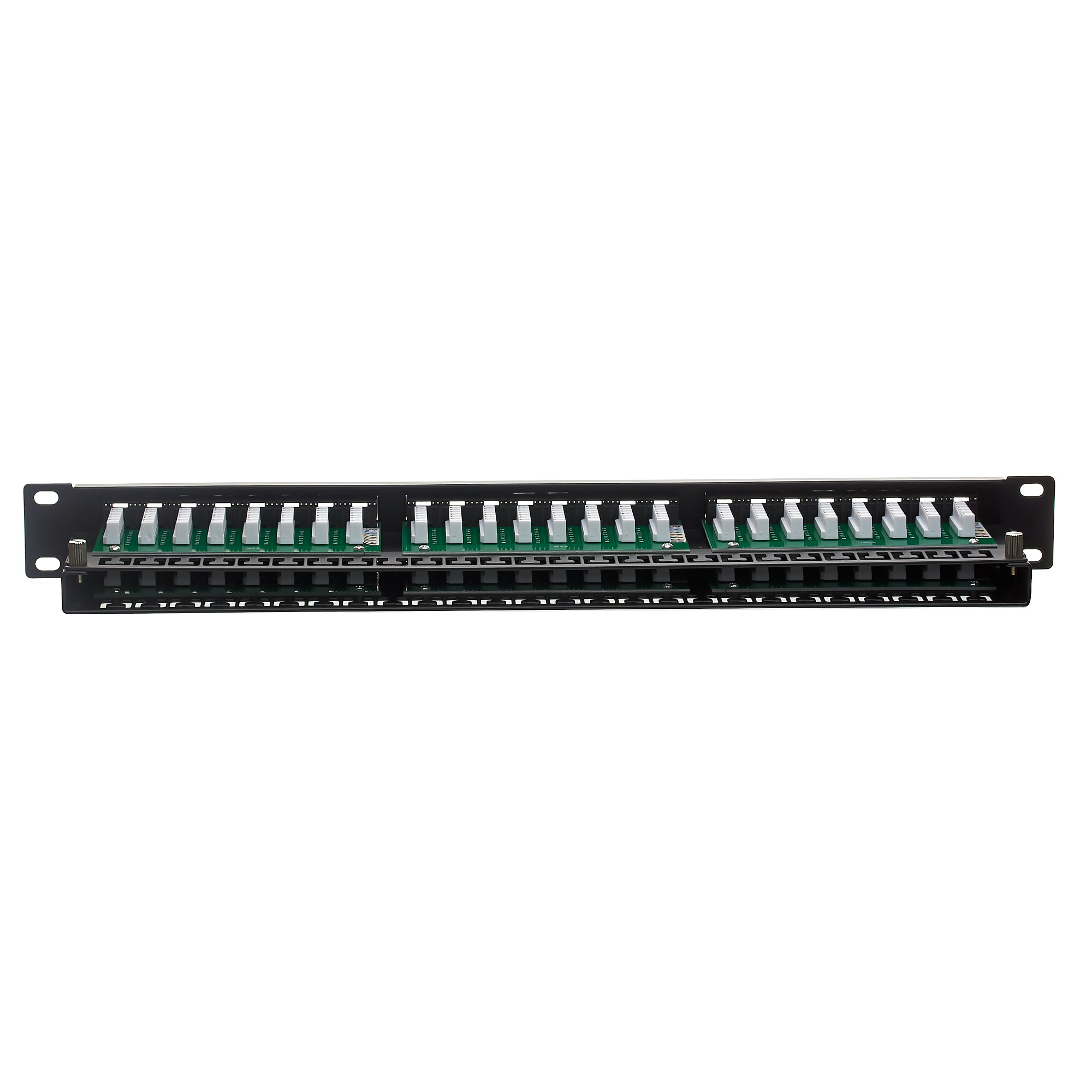

Product Patch panel EPP3-19-24-8P8C-C5e-SH-110D, 19", FTP, 24 port, cat.5e Patch panel EPP3-19-12-8P8C-C5e-110D, 19", UTP, 12 port, cat.5e Patch panel EPP3-19-24-8P8C-C5e-110D, 19", UTP, 24 port, cat.5e Patch panel EPPHD-UTP-1U-19-48-8P8C-C5e-110D, 19", UTP, 48 port, cat.5e Patch panel EPP3-19-48-8P8C-C5e-110D, 19", UTP, 48 port, cat.5e Patch panel EPPW-12-8P8C-C5e-FR, UTP, wall-mount, 12 port, cat.5e Patch panel EPP3-19-24-8P8C-C6-110D, 19", UTP, 24 port, cat.6 Patch panel EPPHD-19-48-8P8C-C6-110D, 19", UTP, 48 port, cat.6 Patch panel EPP3-19-48-8P8C-C6-110D, 19", UTP, 48 port, cat.6 Patch panel EPP-19-25-6P4C-C2, telephone, 19", 1U, 25 port

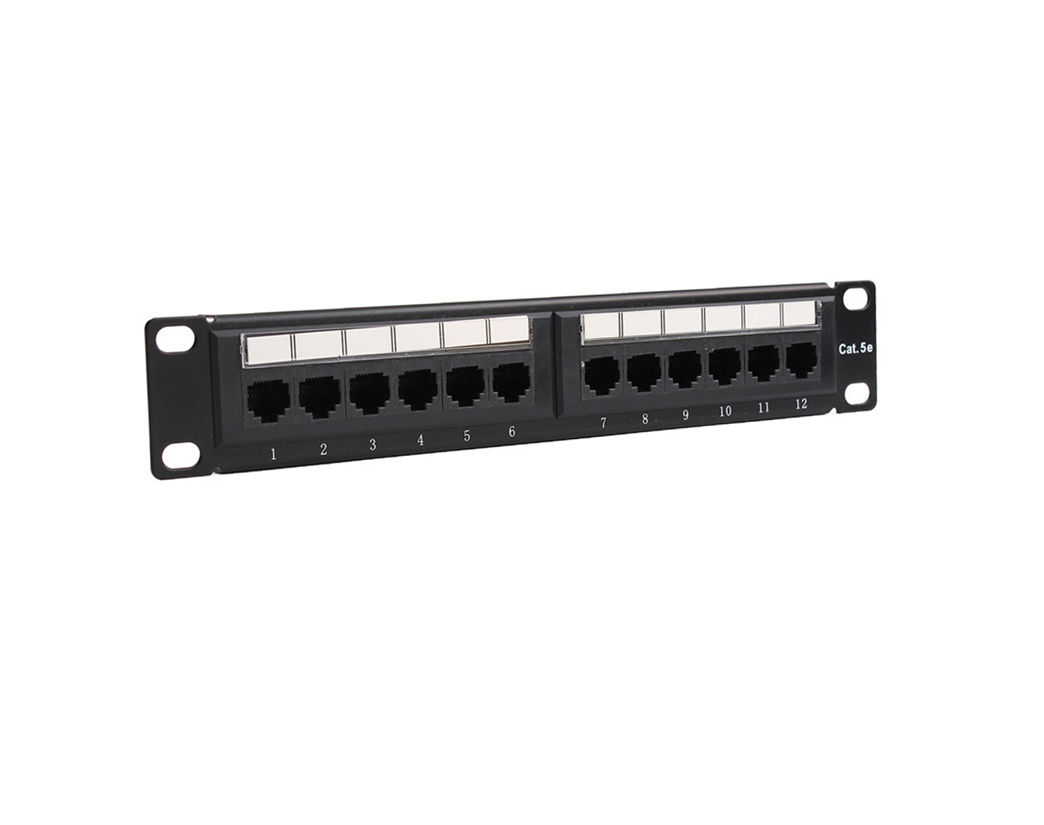

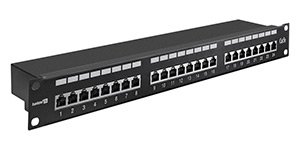

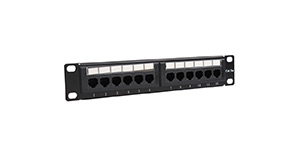

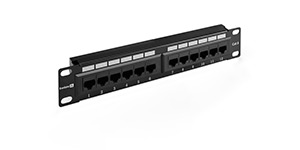

  Patch panel FTP 19 Patch panel EPP3-19-12-8P8C-C5e-110D, 19'', UTP, 12 port, cat.5e

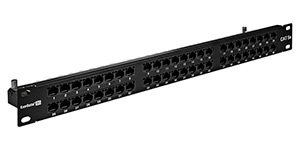

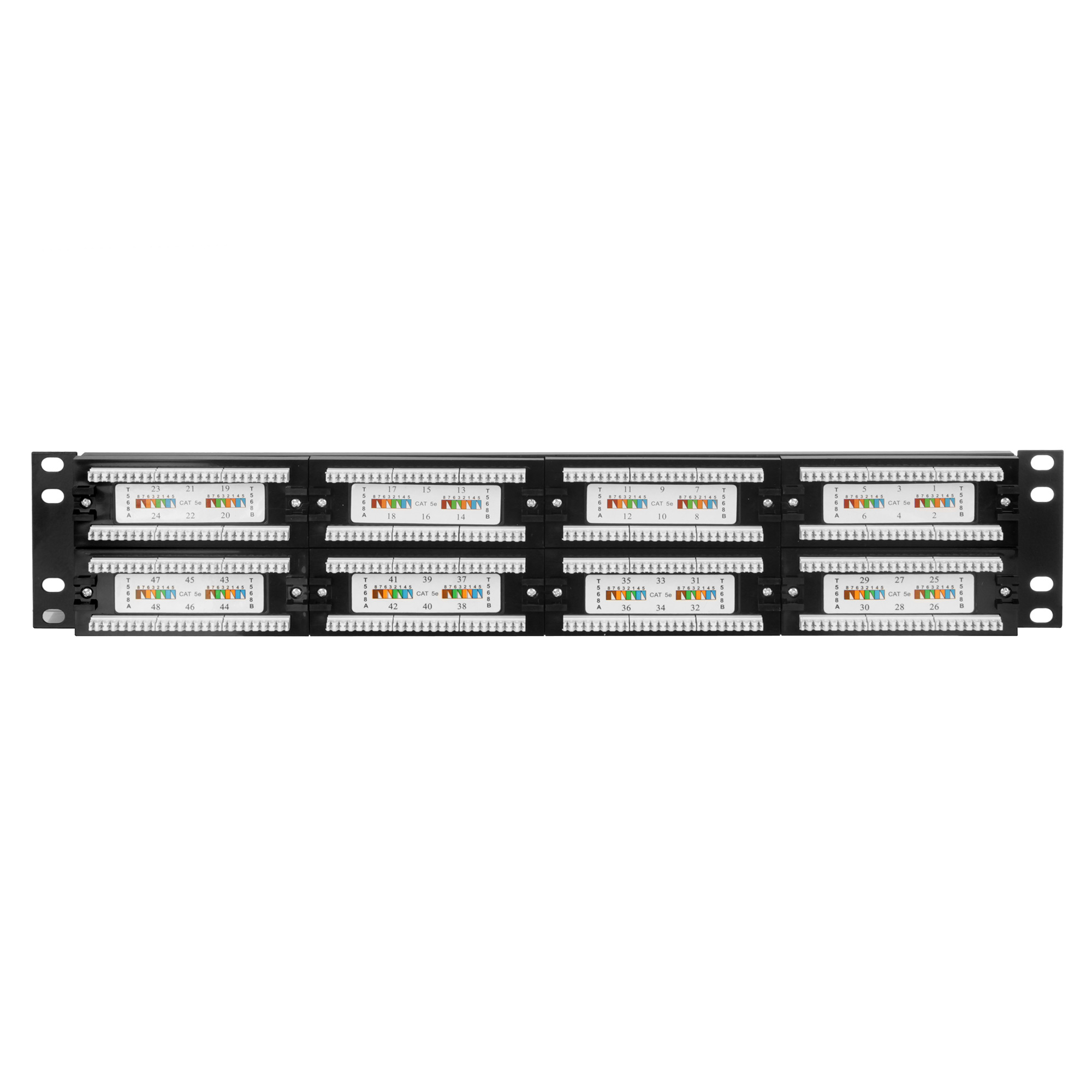

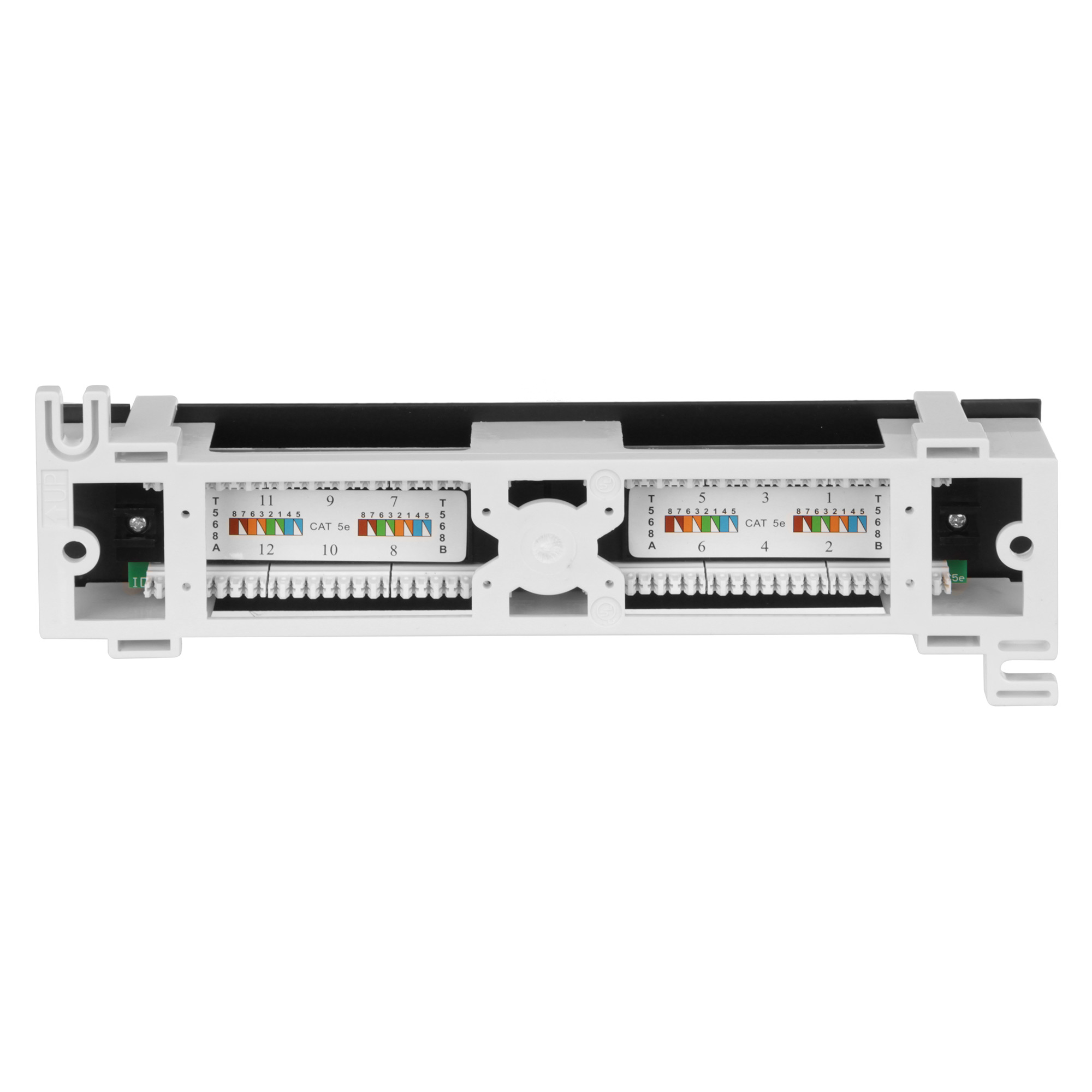

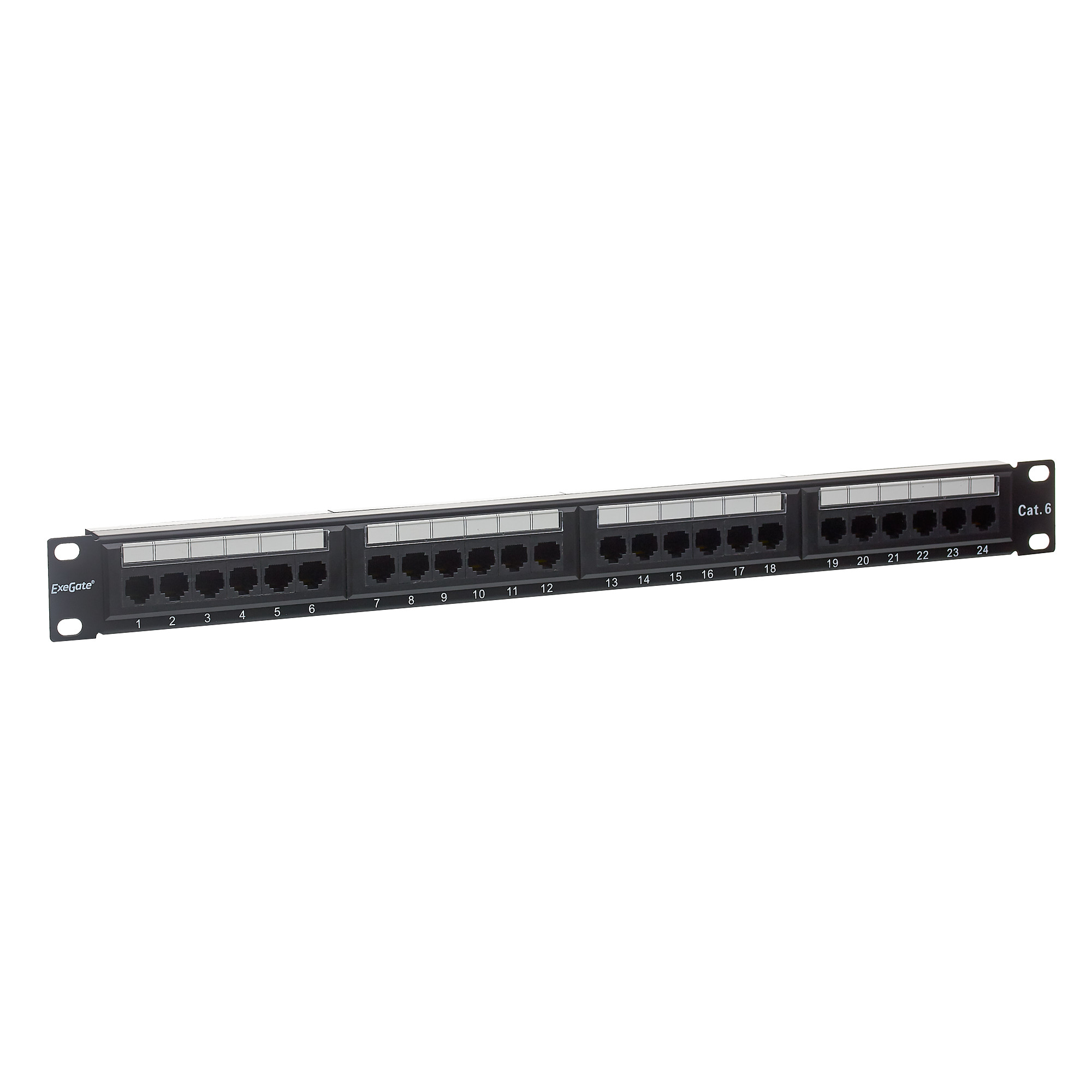

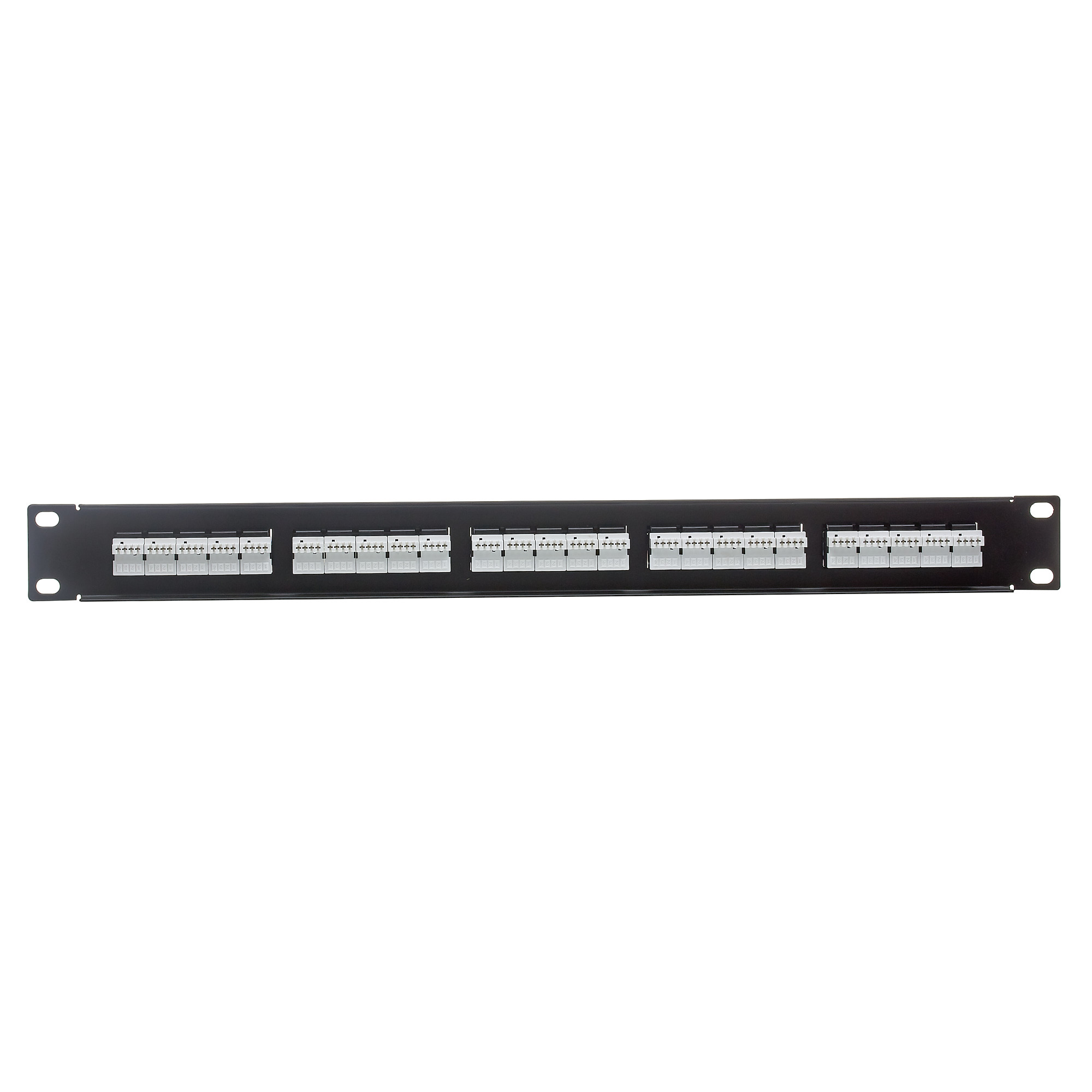

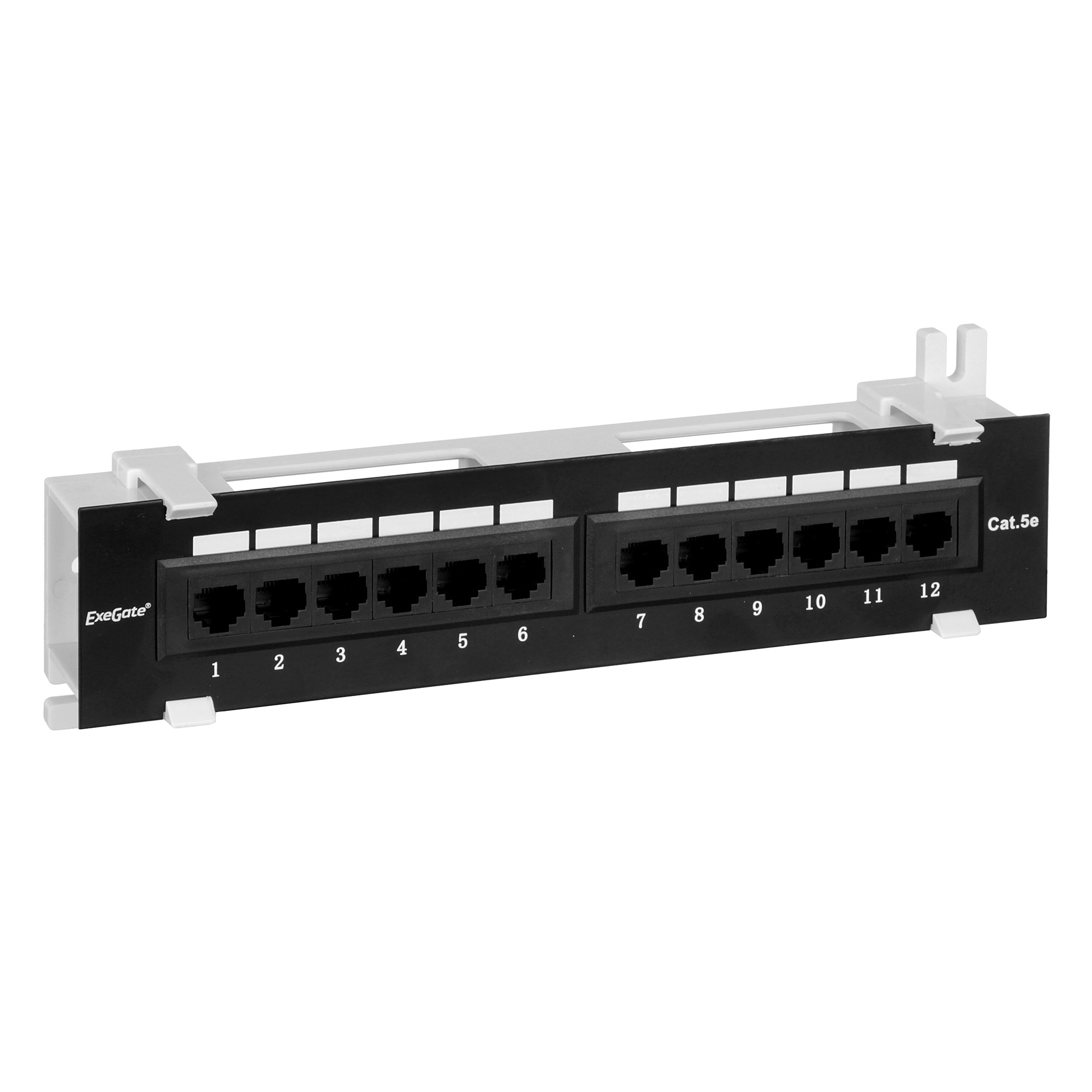

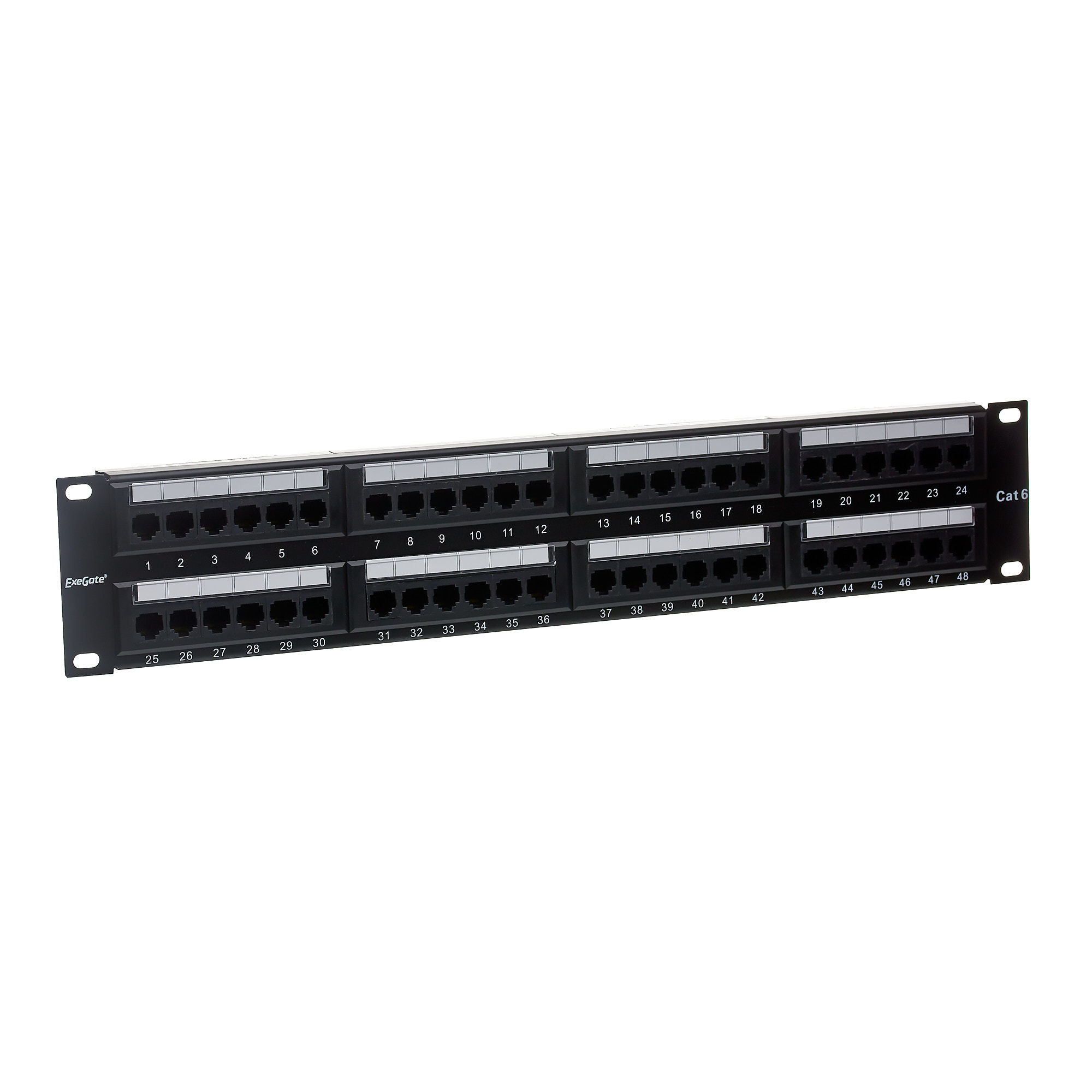

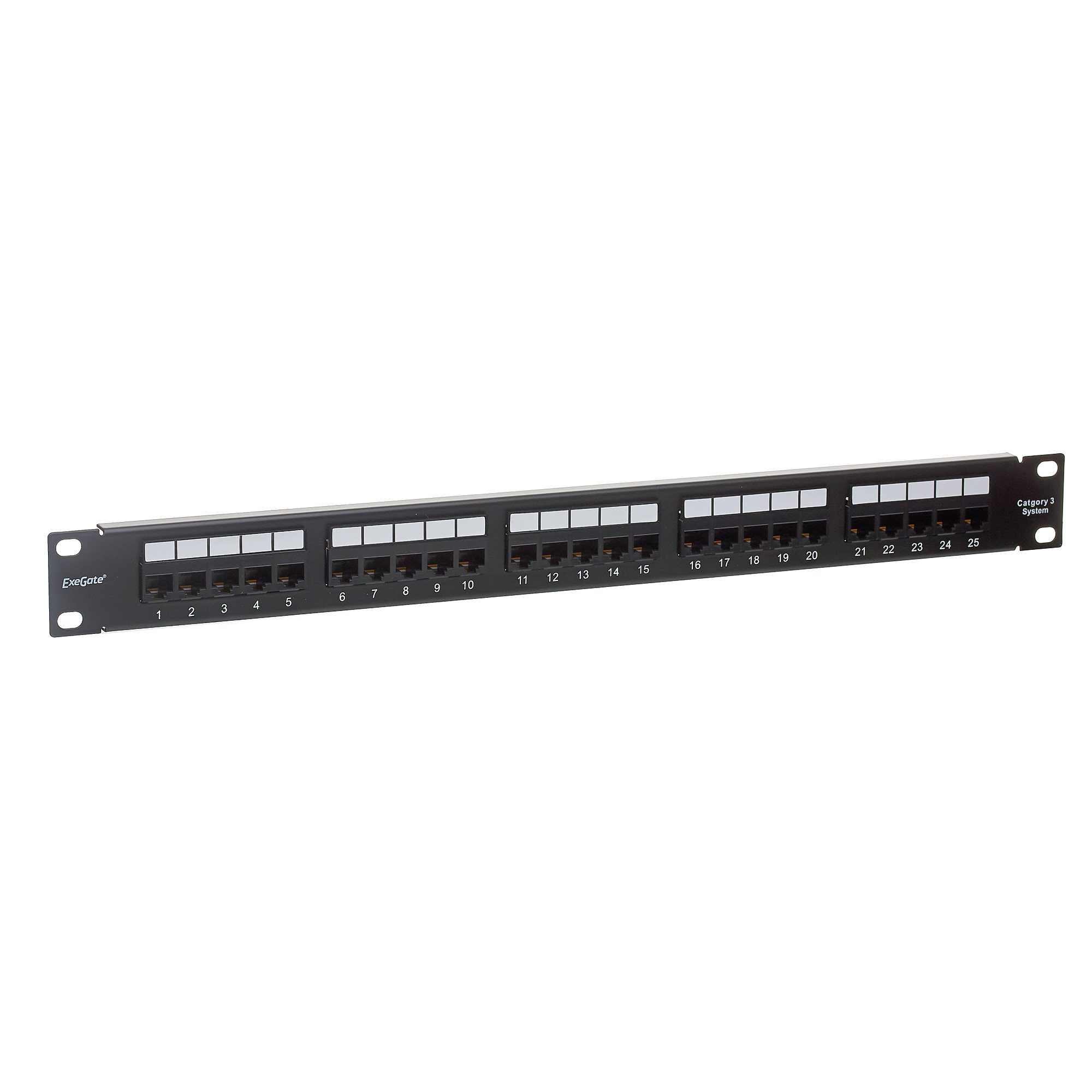

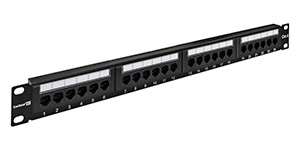

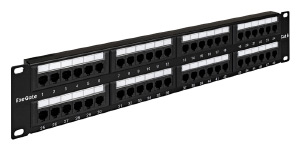

Patch panel EPP3-19-24-8P8C-C5e-110D, 19'', UTP, 24 port, cat.5e Patch panel EPPHD-UTP-1U-19-48-8P8C-C5e-110D, 19'', UTP, 48 port, cat.5e Patch panel EPP3-19-48-8P8C-C5e-110D, 19'', UTP, 48 port, cat.5e Patch panel EPPW-12-8P8C-C5e-FR, UTP, wall-mount, 12 port, cat.5e Patch panel EPP3-19-24-8P8C-C6-110D, 19'', UTP, 24 port, cat.6 Patch panel EPPHD-19-48-8P8C-C6-110D, 19'', UTP, 48 port, cat.6 Patch panel EPP3-19-48-8P8C-C6-110D, 19'', UTP, 48 port, cat.6 Patch panel EPP-19-25-6P4C-C2, telephone, 19'', 1U, 25 port
Destination Used as a connection point between the central hub and various cable locations For organize a telephone switching field with a high port density
Cable type Solid Twisted Pair Telephone cable
Category 5e 6 3
Shield Shielded (FTP) Unshielded (UTP) -
Number of Ports 24 12 24 48 12 24 48 25
Type of ports RJ-45 (8C8P) RJ-12 6P4C
Connector Krone, Type 110, Dual IDC KRONE IDC
Location mode 19" Rack Mount Wall-Mount and rack mount 19" Rack Mount
Height 1U 2U - 1U 2U 1U
Material Steel Steel Steel Steel Steel Plastic Steel Steel Steel Steel
Color Black White Black
Certification RoHS
Weight, kg 1,6 0,4 0,6 1,5 1 0,4 0,6 1,5 1,04 0,5
Packige demention (L x W x H) 50 x 10,5 x 5,6 45 x 25,3 x 29 49 x 5 x 5 50 x 10,5 x 5,6 49,5 x 10,5 x 5 27 x 9 x 5,5 49 x 6 x 5 50 x 10,5 x 5,6 50 x 10,5 x 5,6 50 x 10,5 x 5,6
P/N EX281083 EX281087 EX256752 EX281081 EX256753 EX256754 EX281080 EX281082 EX281085 EX281084
EAN 4895205111806 4895205117013 4895205101357 4895205111813 4895205101364 4895205101340 4895205111820 4895205111837 4895205111844 4895205111851
