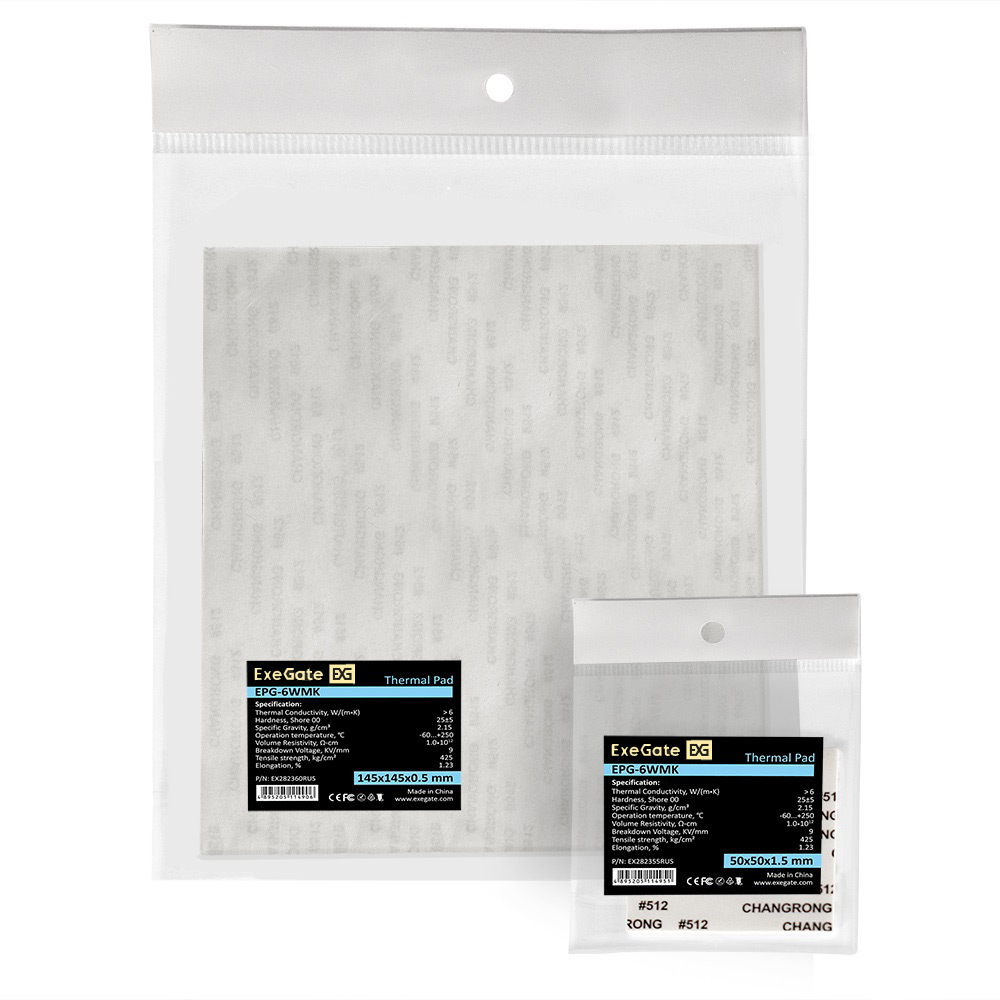

Thermal Pad
Specification
| Hardness Shore 00 | 25±5 |
| Specific Gravity, g/cm3 | 2,15 |
| Volume Resistivity, Ω-cm | 1*1012 |
| Operation temperature, °C | -60~250 |
| Breakdown Voltage, KV/mm | 9 |
| Tensile strength, Kgf/cm2 | 425 |
| Elongation, % | 1,23 |
| Color | Grey |
| Model | Size, mm | Thermal Conductivety, W/(mK) | P/N | EAN |
| ExeGate EPG-2WMK 100x100x0.5 | 100 x 100 x 0.5 | >1,7 | EX293279 | 4895205135048 |
| ExeGate EPG-2WMK 100x100x1.0 | 100 x 100 x 1.0 | >1,7 | EX293278 | 4895205135314 |
| ExeGate EPG-2WMK 100x100x1.5 | 100 x 100 x 1.5 | >1,7 | EX293277 | 4895205135031 |
| ExeGate EPG-2WMK 120x20x0.5 | 120 x 20 x 0.5 | >1,7 | EX293282 | 4895205135079 |
| ExeGate EPG-2WMK 120x20x1.0 | 120 x 20 x 1.0 | >1,7 | EX293281 | 4895205135062 |
| ExeGate EPG-2WMK 120x20x1.5 | 120 x 20 x 1.5 | >1,7 | EX293280 | 4895205135055 |
| ExeGate EPG-6WMK 290x290x0.5 | 290 x 290 x 0.5 | >6 | EX293291 | 4895205135161 |
| ExeGate EPG-6WMK 290x290x1.0 | 290 x 290 x 1.0 | >6 | EX293290 | 4895205135154 |
| ExeGate EPG-6WMK 290x290x1.5 | 290 x 290 x 1.5 | >6 | EX293289 | 4895205135147 |
| ExeGate EPG-6WMK 145x145x0.5 | 145 x 145 x 0.5 | >6 | EX282360 | 4895205114906 |
| ExeGate EPG-6WMK 145x145x1.0 | 145 x 145 x 1.0 | >6 | EX282359 | 4895205114913 |
| ExeGate EPG-6WMK 145x145x1.5 | 145 x 145 x 1.5 | >6 | EX282358 | 4895205114920 |
| ExeGate EPG-6WMK 120x120x0.5 | 120 x 120 x 0.5 | >6 | EX293288 | 4895205135130 |
| ExeGate EPG-6WMK 120x120x1.0 | 120 x 120 x 1.0 | >6 | EX293287 | 4895205135123 |
| ExeGate EPG-6WMK 120x120x1.5 | 120 x 120 x 1.5 | >6 | EX293286 | 4895205135116 |
| ExeGate EPG-6WMK 120x20x0.5 | 120 x 20 x 0.5 | >6 | EX293285 | 4895205135109 |
| ExeGate EPG-6WMK 120x20x1.0 | 120 x 20 x 1.0 | >6 | EX293284 | 4895205135093 |
| ExeGate EPG-6WMK 120x20x1.5 | 120 x 20 x 1.5 | >6 | EX293283 | 4895205135086 |
| ExeGate EPG-6WMK 50x50x0.5 | 50 x 50 x 0.5 | >6 | EX282357 | 4895205114937 |
| ExeGate EPG-6WMK 50x50x1.0 | 50 x 50 x 1.0 | >6 | EX282356 | 4895205114944 |
| ExeGate EPG-6WMK 50x50x1.5 | 50 x 50 x 1.5 | >6 | EX282355 | 4895205114951 |
| ExeGate EPG-9WMK 100x100x0.5 | 100 x 100 x 0.5 | >8,5 | EX296127 | 4895205162150 |
| ExeGate EPG-9WMK 100x100x1.0 | 100 x 100 x 1.0 | >8,5 | EX296128 | 4895205162167 |
| ExeGate EPG-9WMK 100x100x1.5 | 100 x 100 x 1.5 | >8,5 | EX296129 | 4895205162174 |
| ExeGate EPG-9WMK 100x100x2.0 | 100 x 100 x 2.0 | >8,5 | EX296130 | 4895205162181 |
| ExeGate EPG-9WMK 100x100x2.5 | 100 x 100 x 2.5 | >8,5 | EX296131 | 4895205162198 |
| ExeGate EPG-9WMK 100x100x3.0 | 100 x 100 x 3.0 | >8,5 | EX296132 | 4895205162204 |
| ExeGate EPG-9WMK 20x120x0.5 | 20 x 120 x 0.5 | >8,5 | EX296133 | 4895205162211 |
| ExeGate EPG-9WMK 20x120x1.0 | 20 x 120 x 1.0 | >8,5 | EX296134 | 4895205162228 |
| ExeGate EPG-9WMK 20x120x1.5 | 20 x 120 x 1.5 | >8,5 | EX296135 | 4895205162235 |
| ExeGate EPG-9WMK 20x120x2.0 | 20 x 120 x 2.0 | >8,5 | EX296136 | 4895205162242 |
| ExeGate EPG-9WMK 20x120x3.0 | 20 x 120 x 3.0 | >8,5 | EX296137 | 4895205162259 |
| ExeGate EPG-9WMK 30x30x0.5 | 30 x 30 x 0.5 | >8,5 | EX296119 | 4895205162075 |
| ExeGate EPG-9WMK 30x30x1.0 | 30 x 30 x 1.0 | >8,5 | EX296120 | 4895205162082 |
| ExeGate EPG-9WMK 30x30x1.5 | 30 x 30 x 1.5 | >8,5 | EX296121 | 4895205162099 |
| ExeGate EPG-9WMK 30x30x2.0 | 30 x 30 x 2.0 | >8,5 | EX296122 | 4895205162105 |
| ExeGate EPG-9WMK 45x85x0.5 | 45 x 85 x 0.5 | >8,5 | EX296123 | 4895205162112 |
| ExeGate EPG-9WMK 45x85x1.0 | 45 x 85 x 1.0 | >8,5 | EX296124 | 4895205162129 |
| ExeGate EPG-9WMK 45x85x1.5 | 45 x 85 x 1.5 | >8,5 | EX296125 | 4895205162136 |
| ExeGate EPG-9WMK 45x85x2.0 | 45 x 85 x 2.0 | >8,5 | EX296126 | 4895205162143 |
| ExeGate Ice EPG-13WMK 120x120x0.5 | 120 x 120 x 0.5 | >13,3 | EX296141 | 4895205162297 |
| ExeGate Ice EPG-13WMK 120x120x1.0 | 120 x 120 x 1.0 | >13,3 | EX296140 | 4895205162280 |
| ExeGate Ice EPG-13WMK 120x120x1.5 | 120 x 120 x 1.5 | >13,3 | EX296139 | 4895205162273 |
| ExeGate Ice EPG-13WMK 120x120x2.0 | 120 x 120 x 2.0 | >13,3 | EX296138 | 4895205162266 |
| ExeGate Ice EPG-13WMK 20x120x0.5 | 20 x 120 x 0.5 | >13,3 | EX293299 | 4895205135246 |
| ExeGate Ice EPG-13WMK 20x120x1.0 | 20 x 120 x 1.0 | >13,3 | EX293298 | 4895205135239 |
| ExeGate Ice EPG-13WMK 20x120x1.5 | 20 x 120 x 1.5 | >13,3 | EX293297 | 4895205135222 |
| ExeGate Ice EPG-13WMK 20x120x2.0 | 20 x 120 x 2.0 | >13,3 | EX293296 | 4895205135291 |
| ExeGate Ice EPG-13WMK 40x120x0.5 | 40 x 120 x 0.5 | >13,3 | EX293303 | 4895205135284 |
| ExeGate Ice EPG-13WMK 40x120x1.0 | 40 x 120 x 1.0 | >13,3 | EX293302 | 4895205135277 |
| ExeGate Ice EPG-13WMK 40x120x1.5 | 40 x 120 x 1.5 | >13,3 | EX293301 | 4895205135260 |
| ExeGate Ice EPG-13WMK 40x120x2.0 | 40 x 120 x 2.0 | >13,3 | EX293300 | 4895205135253 |
| ExeGate Ice EPG-13WMK 45x85x0.5 | 45 x 85 x 0.5 | >13,3 | EX293295 | 4895205135208 |
| ExeGate Ice EPG-13WMK 45x85x1.0 | 45 x 85 x 1.0 | >13,3 | EX293294 | 4895205135192 |
| ExeGate Ice EPG-13WMK 45x85x1.5 | 45 x 85 x 1.5 | >13,3 | EX293293 | 4895205135185 |
| ExeGate Ice EPG-13WMK 45x85x2.0 | 45 x 85 x 2.0 | >13,3 | EX293292 | 4895205135178 |
| ExeGate Ice EPG-16WMK 120x120x0.5 | 120 x 120 x 0.5 | >16 | EX296146 | 4895205162341 |
| ExeGate Ice EPG-16WMK 120x120x1.0 | 120 x 120 x 1.0 | >16 | EX296147 | 4895205162358 |
| ExeGate Ice EPG-16WMK 120x120x1.5 | 120 x 120 x 1.5 | >16 | EX296148 | 4895205162365 |
| ExeGate Ice EPG-16WMK 120x120x2.0 | 120 x 120 x 2.0 | >16 | EX296149 | 4895205162372 |
| ExeGate Ice EPG-16WMK 50x90x0.5 | 50 x 90 x 0.5 | >16 | EX296142 | 4895205162303 |
| ExeGate Ice EPG-16WMK 50x90x1.0 | 50 x 90 x 1.0 | >16 | EX296143 | 4895205162310 |
| ExeGate Ice EPG-16WMK 50x90x1.5 | 50 x 90 x 1.5 | >16 | EX296144 | 4895205162327 |
| ExeGate Ice EPG-16WMK 50x90x2.0 | 50 x 90 x 2.0 | >16 | EX296145 | 4895205162334 |
