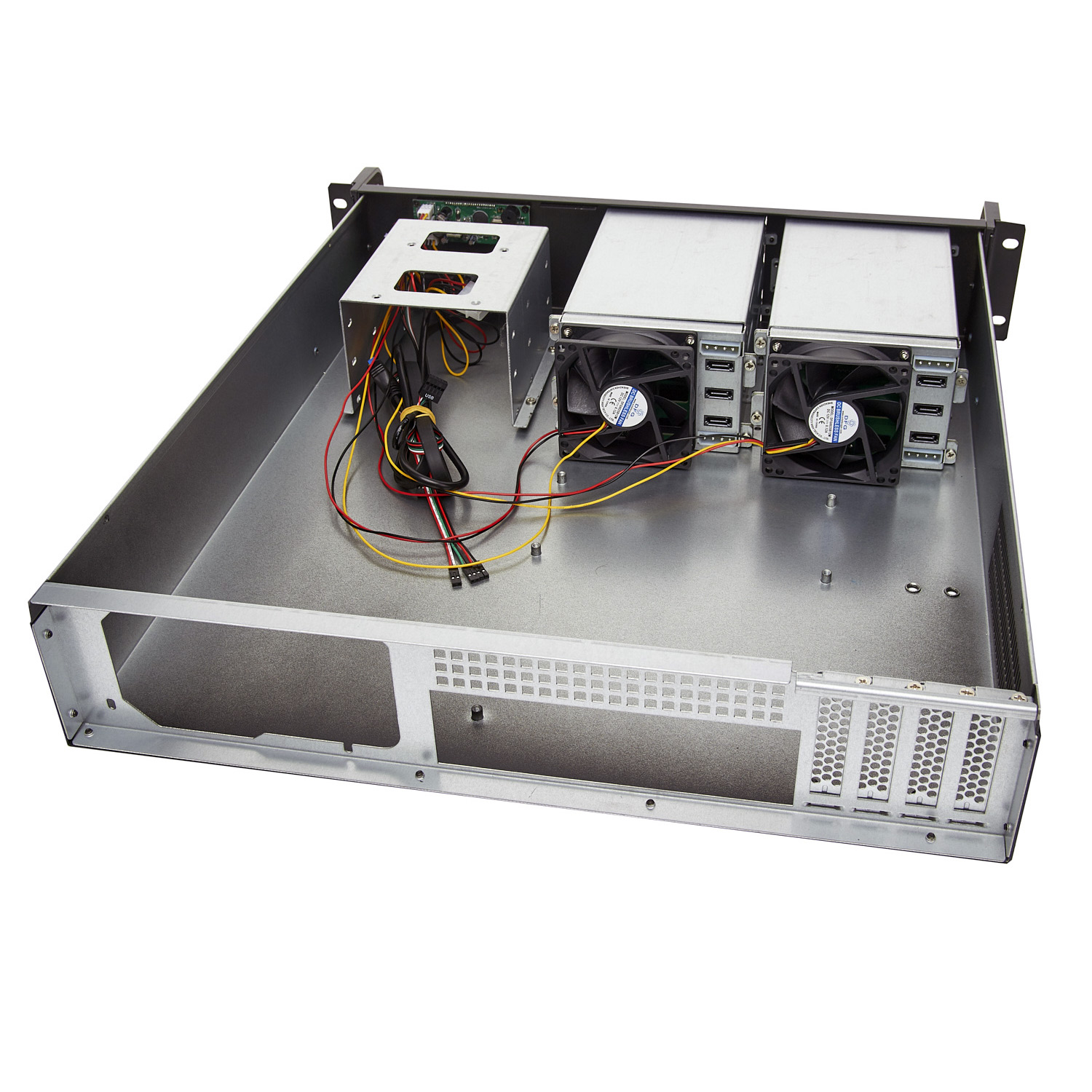

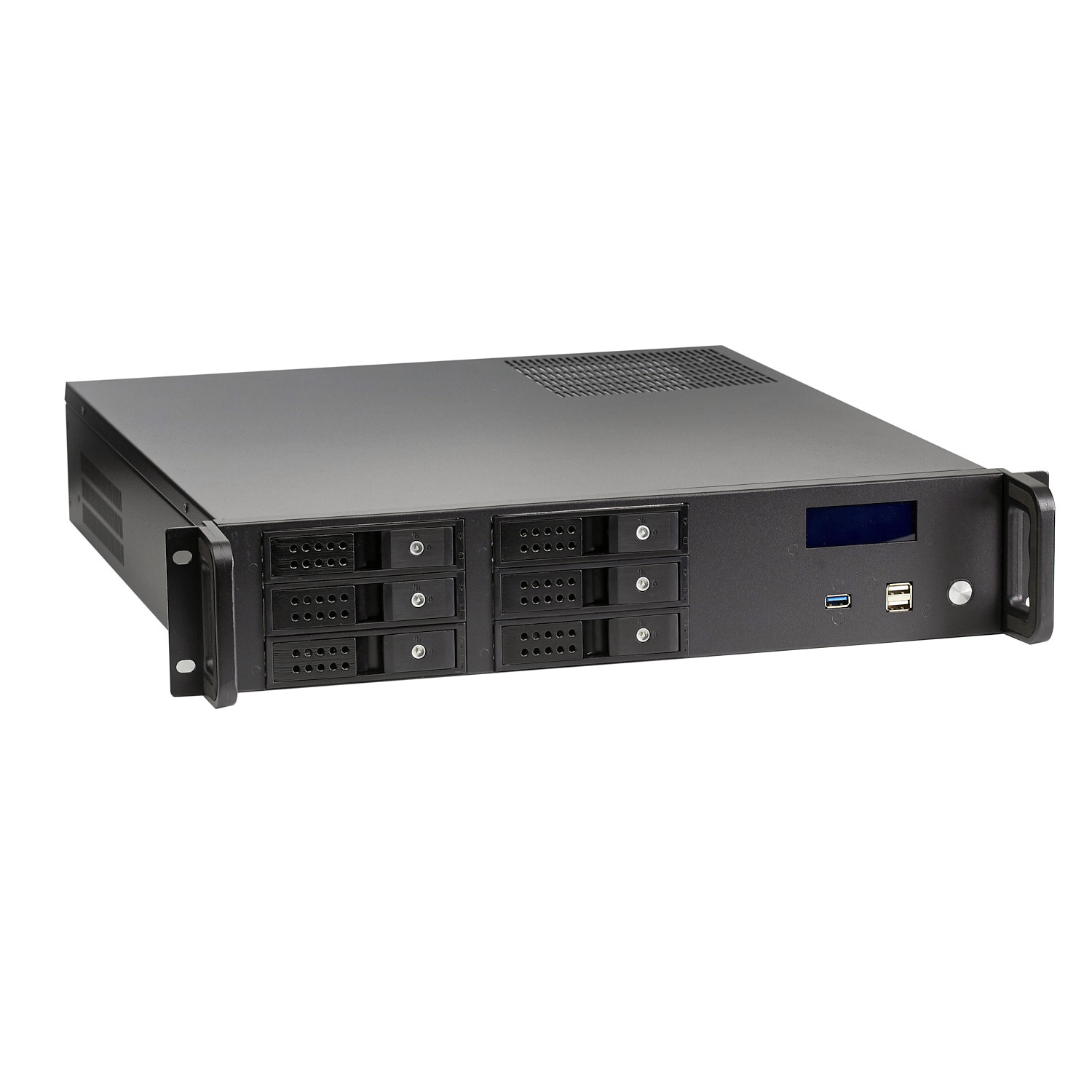

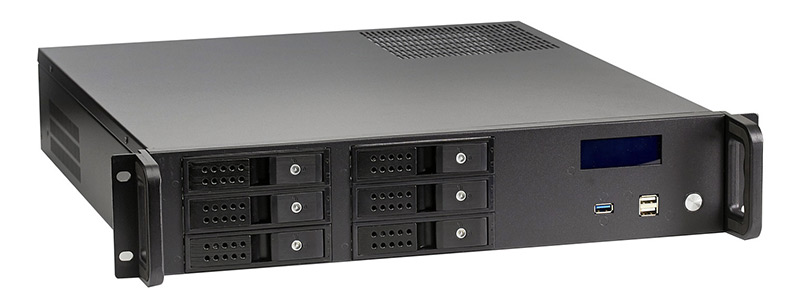

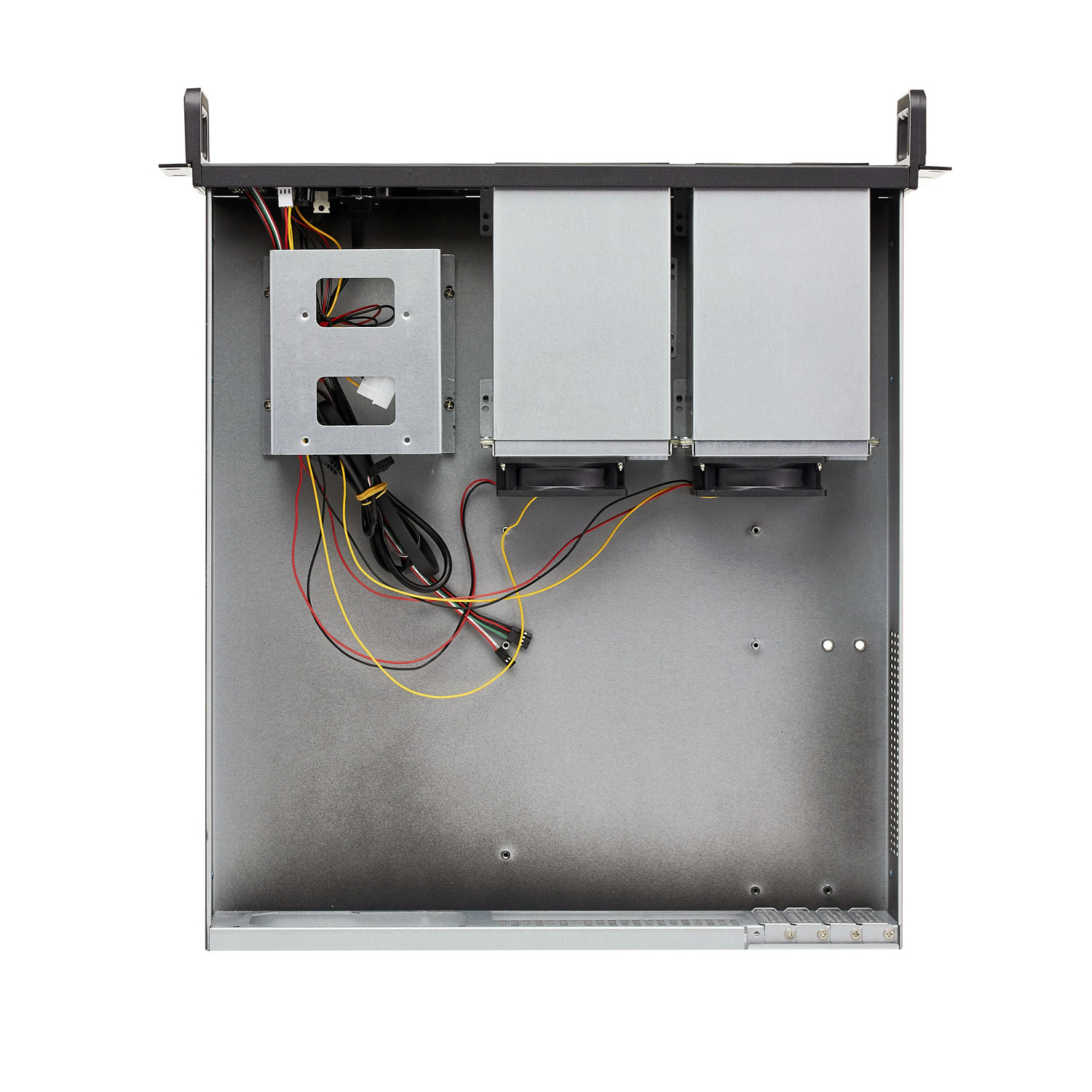

2U480-HS06
Specification
| Type | 2U |
| Motherboard Support | miniITX, mATX |
| Max. motherboard size, mm | 244x244 |
| Drive Bay: | |

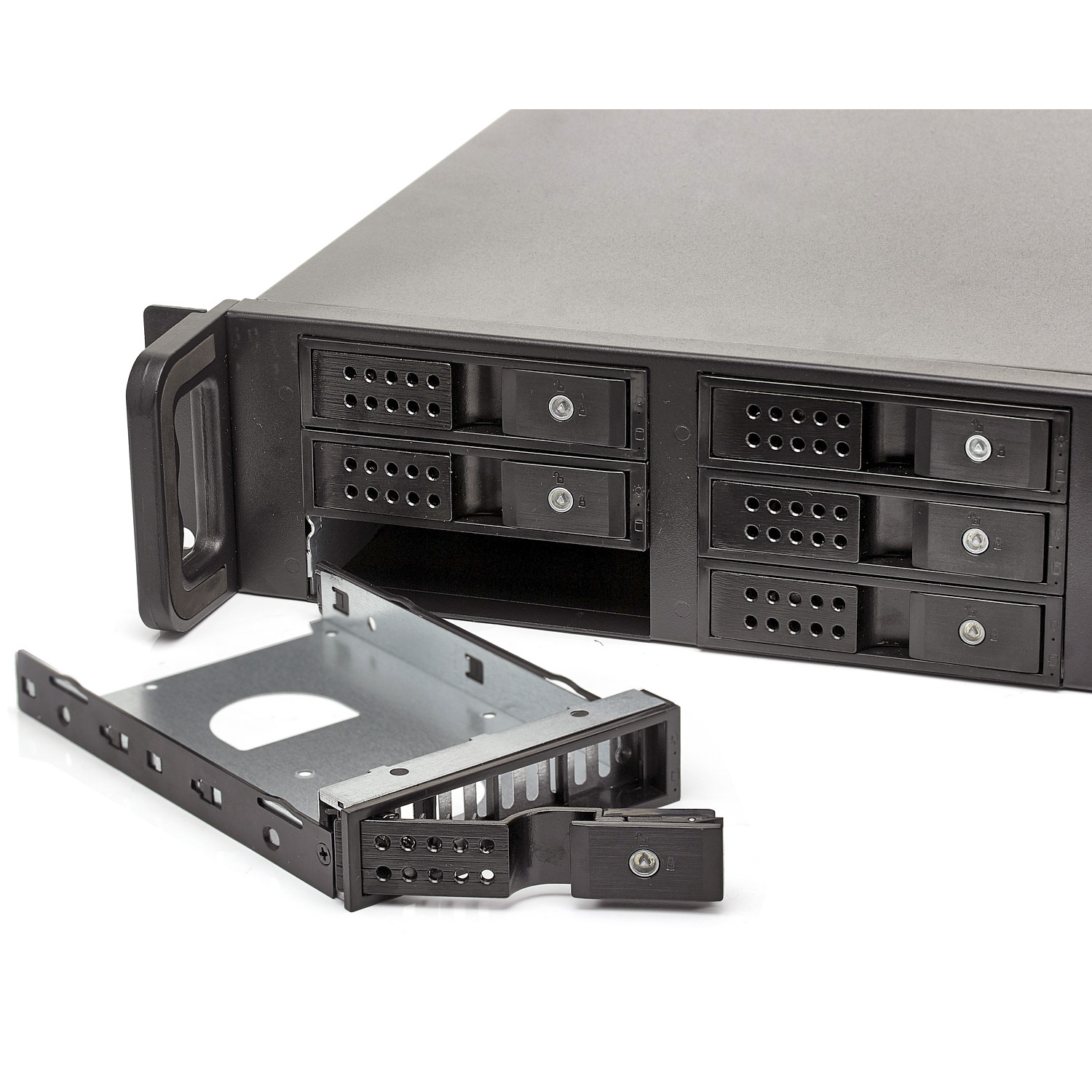

| 3.5" HotSwap | 6 |
| Int. 3.5" | 3 |
| Int. 2.5" | 1 (instead 1 x 3.5") |
| Front I/O Ports | 2 x USB 2.0, 1 x USB 3.0 |
| Control &Indicator, LED | 1 x Power, 1 x HDD |
| Switch | POWER, RESET |
| Expansion Slots | 4 |

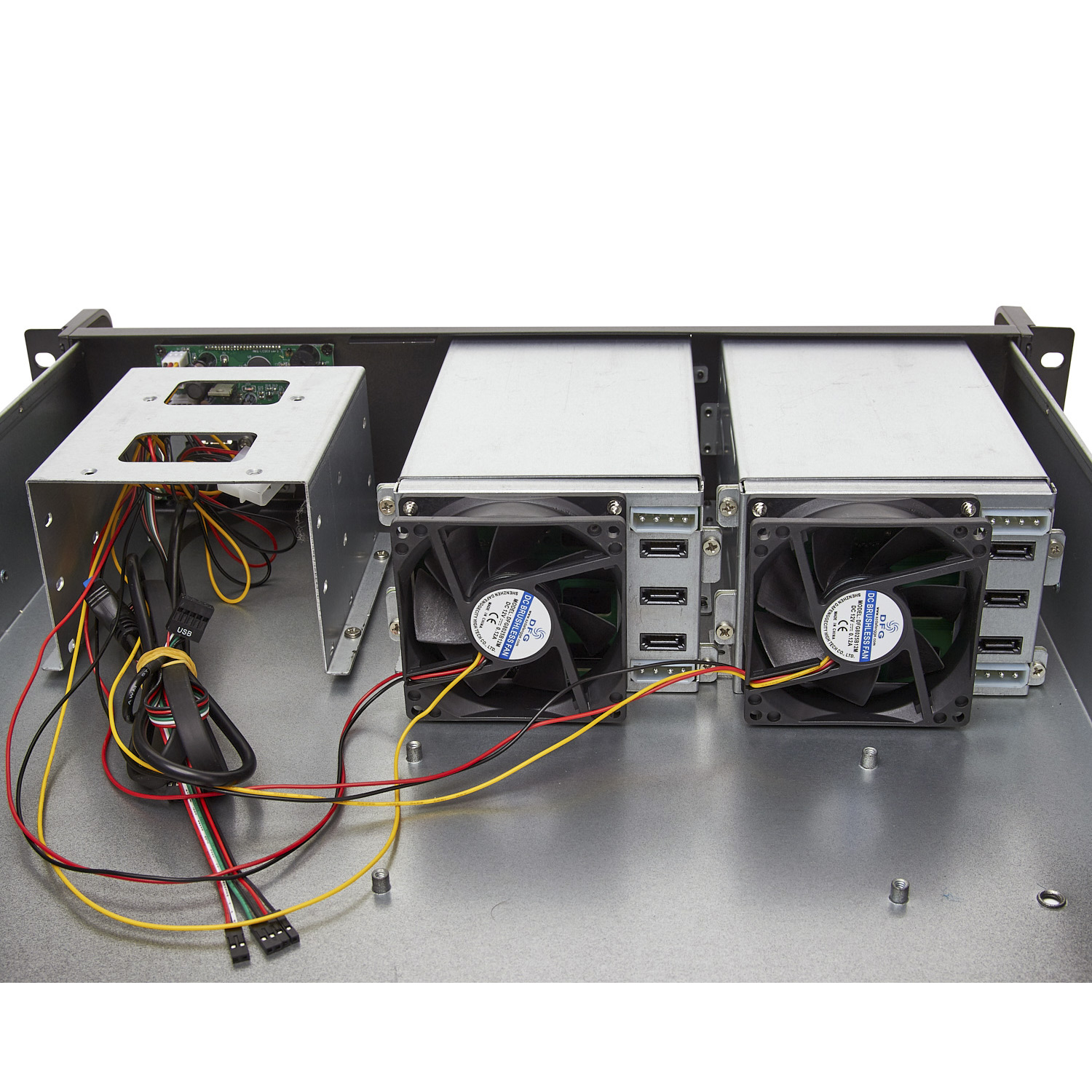

| Cooling System: | 2 x 8 cm fan |
| PSU | ATX |
| Recommended ExeGate PSU | ServerPRO-500ADS, ServerPRO-600ADS, ServerPRO-700ADS, ServerPRO-800ADS |
| Chassis material | 1.2 mm steel |
| Cases color | Black |
| Chassis color | Silver |
| Dimensions chassis (D x W x H), mm | 480 x 430 x 89 |
| Dimensions (D x W x H), mm | 528 x 482 x 89 |
| Net Weight w/o PSU / with PSU, kg | 7/8,3 |
| PSU | w/o PSU | 500W | 600W | 700W | 800W |
| P/N | EX279705 | EX279753 | EX279754 | EX279755 | EX279756 |
| EAN | 4895205108950 | 4895205108967 | 4895205108974 | 4895205108981 | 4895205108998 |
