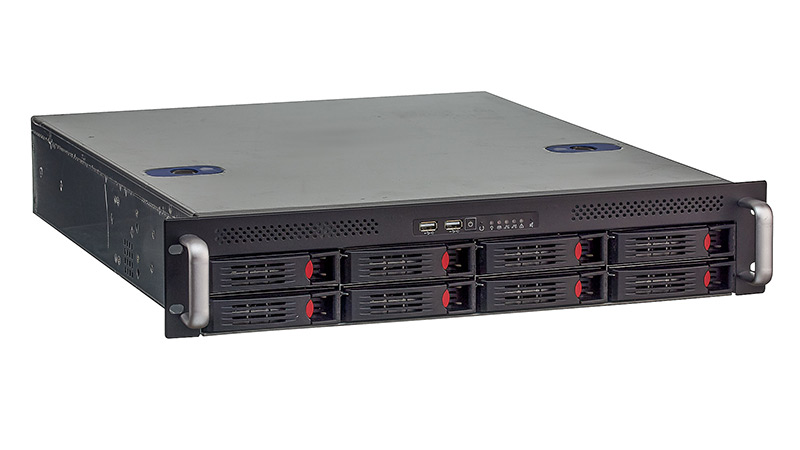

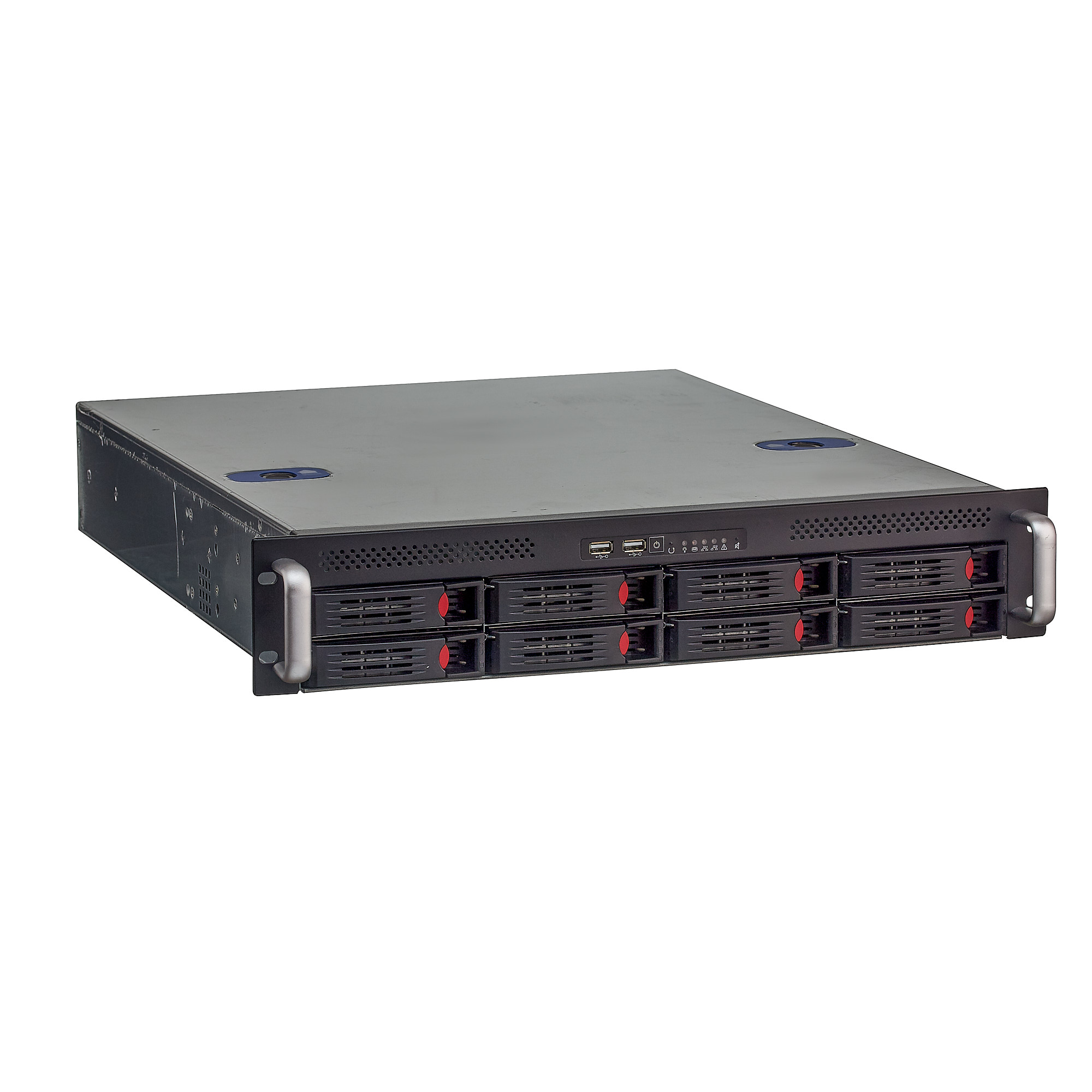

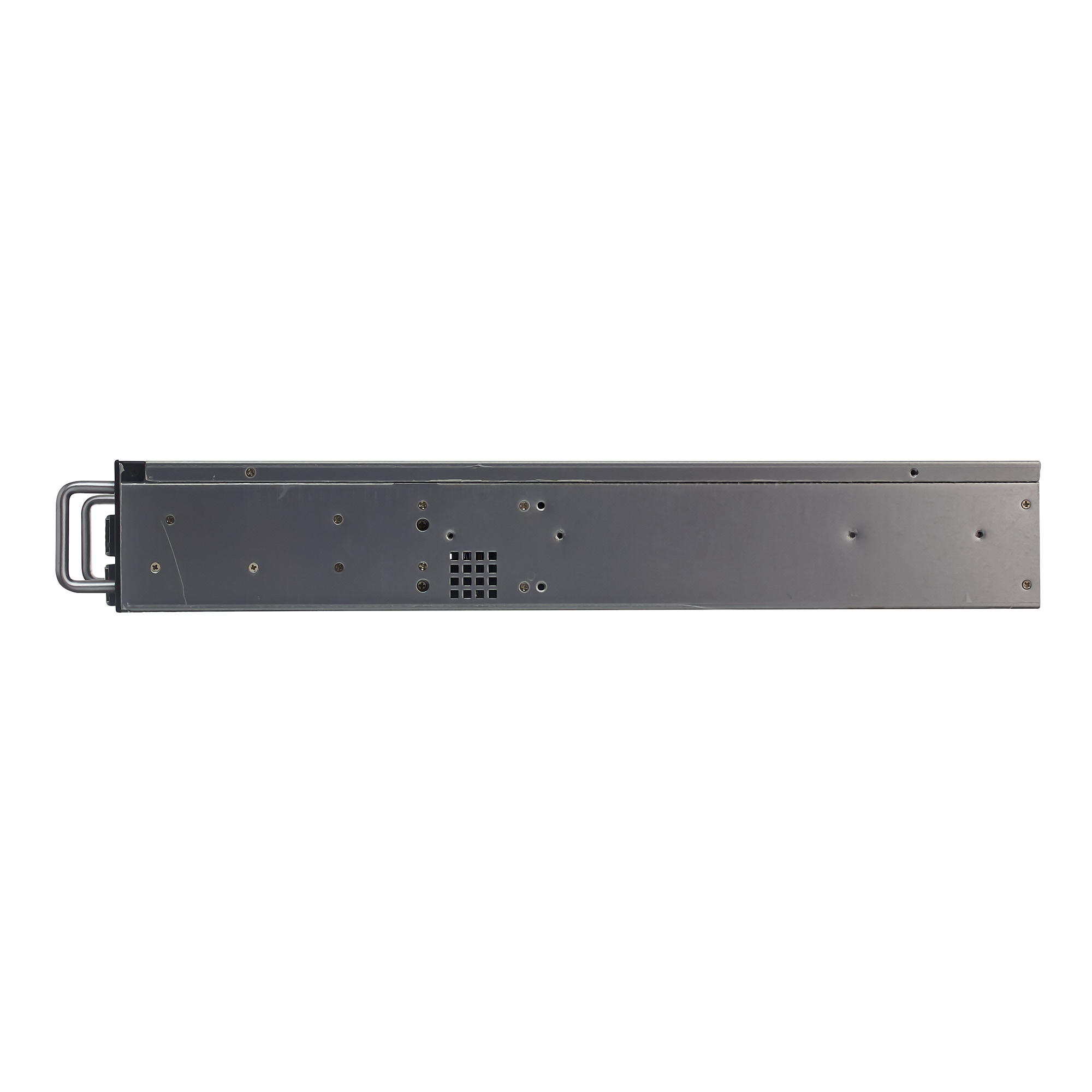

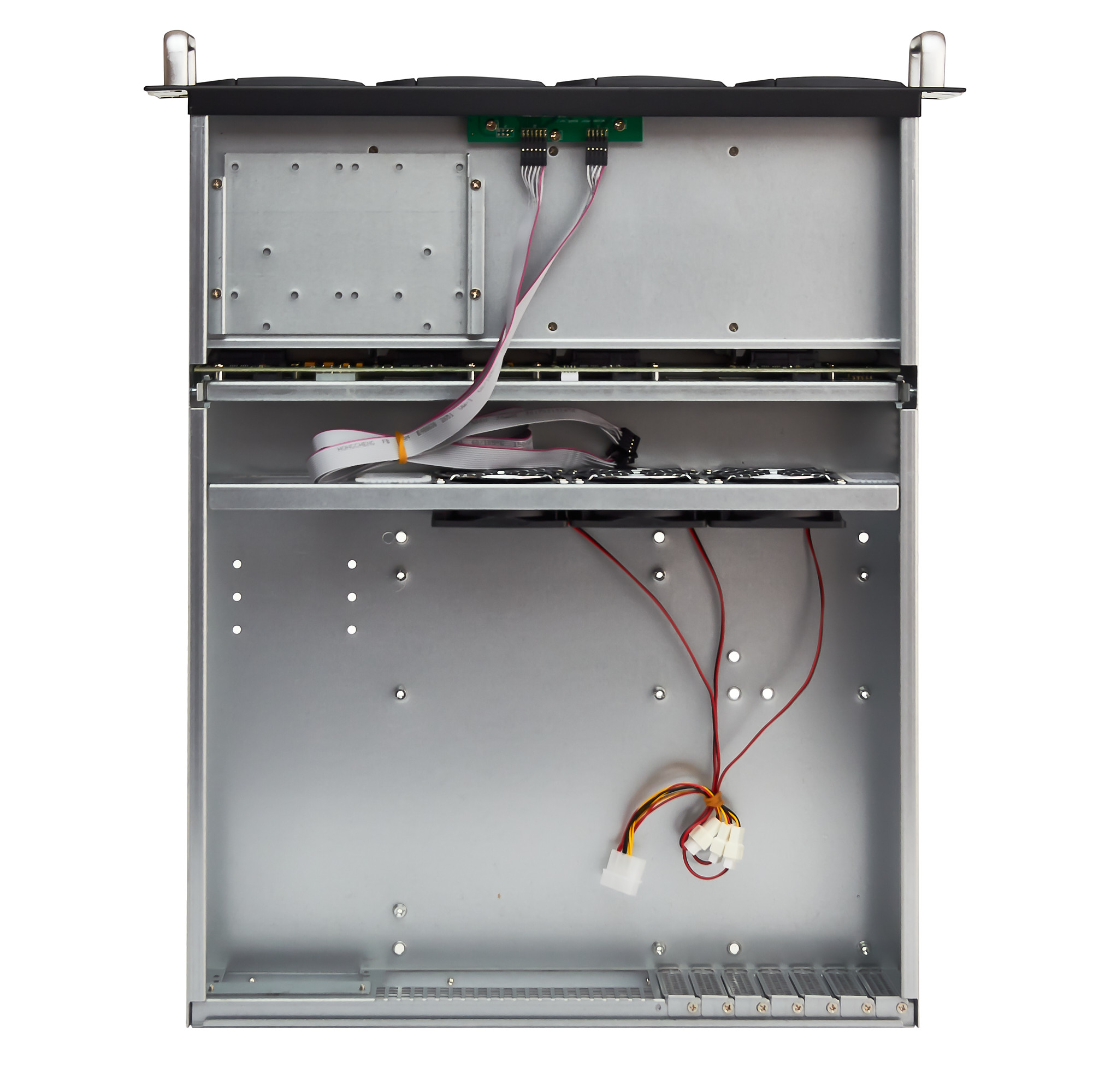

2U550-HS08

2U550-HS08

Specification

Type 2U
Motherboard Support ATX
Max. motherboard size, mm 305 x 244
Drive Bay:

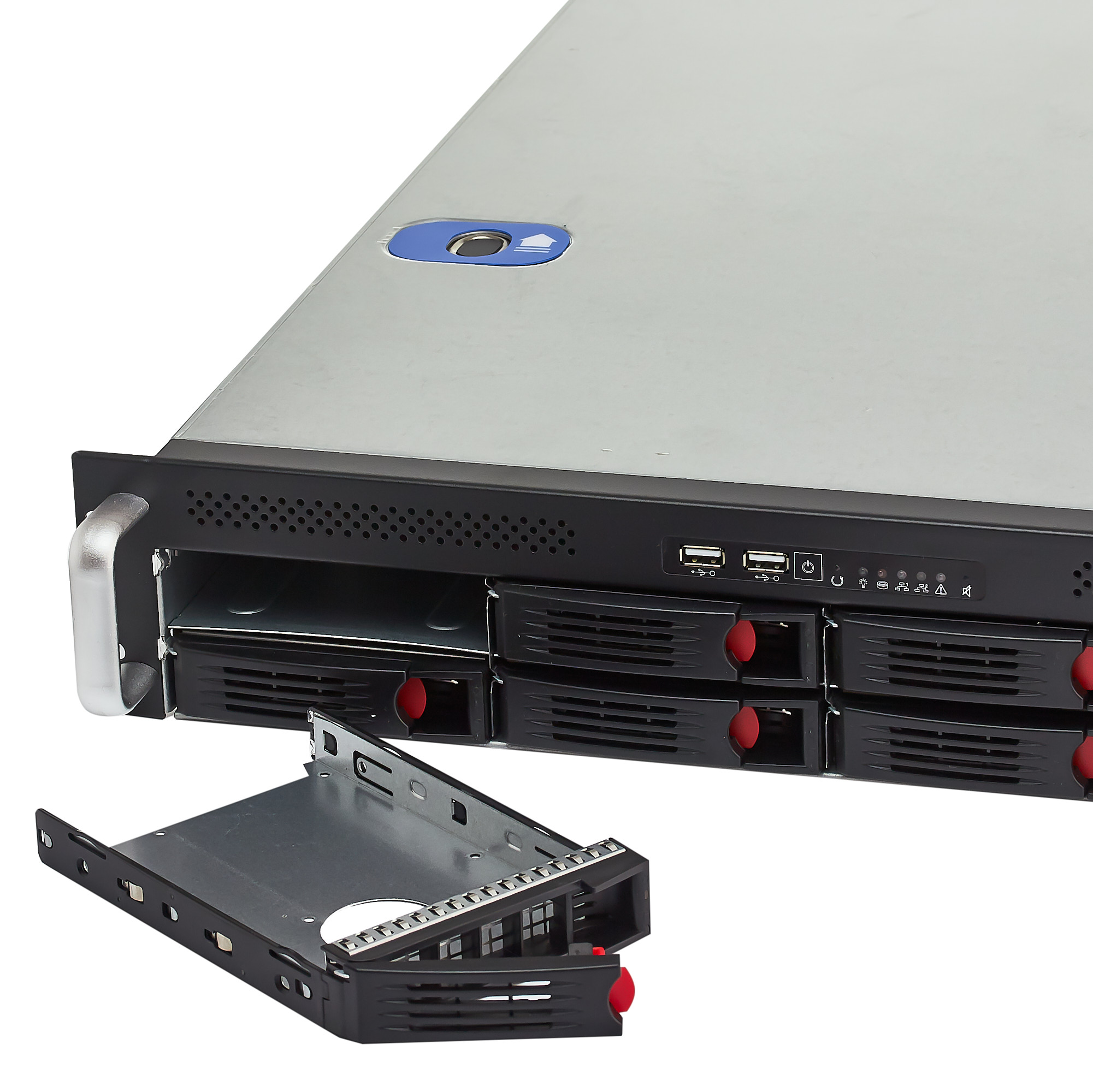

Ext. 3.5" Hot Swap 8
Int. 3.5" 1
Int. 2.5" 2 (instead 1 internal 3.5")
Front I/O Ports 2 x USB 2.0
Control & indicator, LED Power, HDD, 2 x NIC, Status LED
Switch POWER, RESET, On/Off Speaker button
Expansion Slots 7

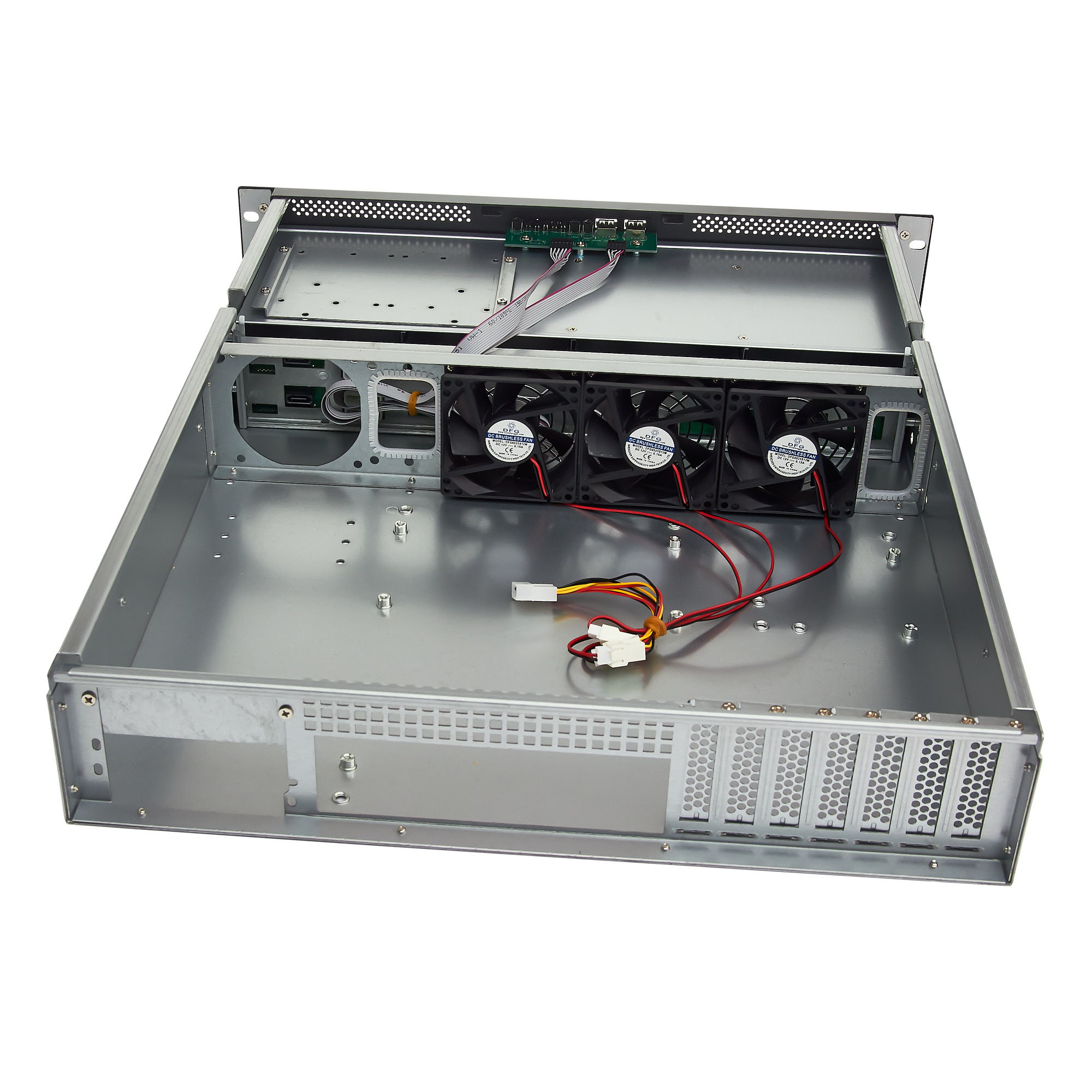

Cooling System: 3 x 8 cm (4 with extra place 1 x 8 cm) in the middle frame
Recommended ExeGate PSU 1UFlex/1U
Max. height of the CPU fan, mm 65
Max. PSU length, mm 260
Max. PSU with opposite drive bay length, mm 100
Max. SVGA length, mm 260 (only using a low-profile SVGA)
Chassis material 1,22 steel
Cases color Black
Chassis color Silver
Dimensions chassis (D x W x H), mm 550 x 429 x 89
Dimensions (D x W x H), mm 585 x 481 x 89
Net Weight w/o PSU / with PSU, kg 12,8 / 13,2


PSU w/o PSU 500W 600W 700W 800W
P/N EX281232 EX281289 EX281290 EX281292 EX281293
EAN 4895205111998 4895205112001 4895205112018 4895205112032 4895205112049
