3U660-HS16

3U660-HS16

Specification

Type 3U
Motherboard Support E-ATX
Max. motherboard size, mm 305 x 330
Drive Bay:
Ext. 5.25" 1 (Slim Drive Bay installation optional)

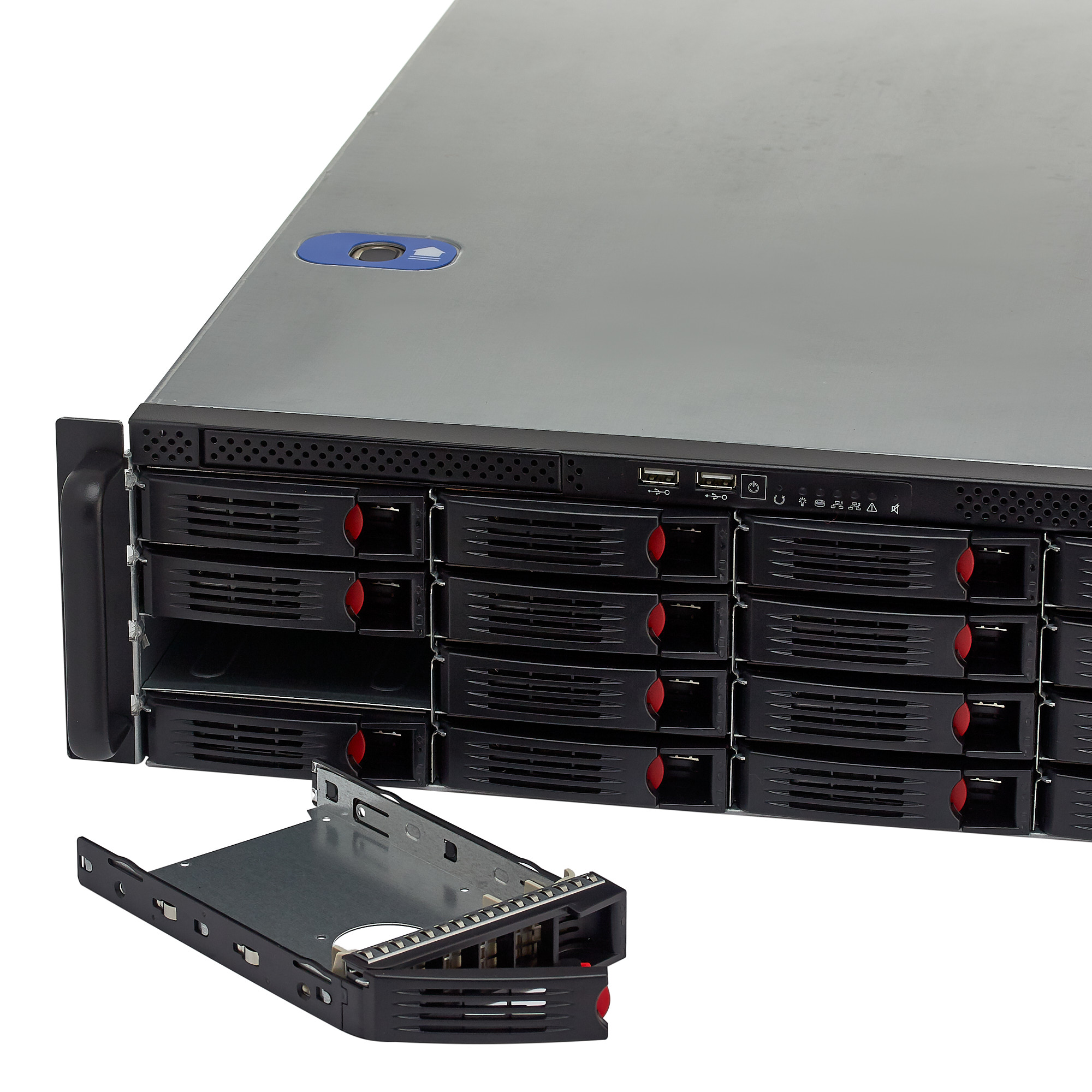

Ext. 3.5" Hot Swap 16
Int. 2.5" 2
Front I/O Ports 2 x USB 2.0
Control & indicator, LED Power, HDD, 2 x NIC, Status LED
Switch POWER, RESET, On/Off Speaker button
Expansion Slots 7

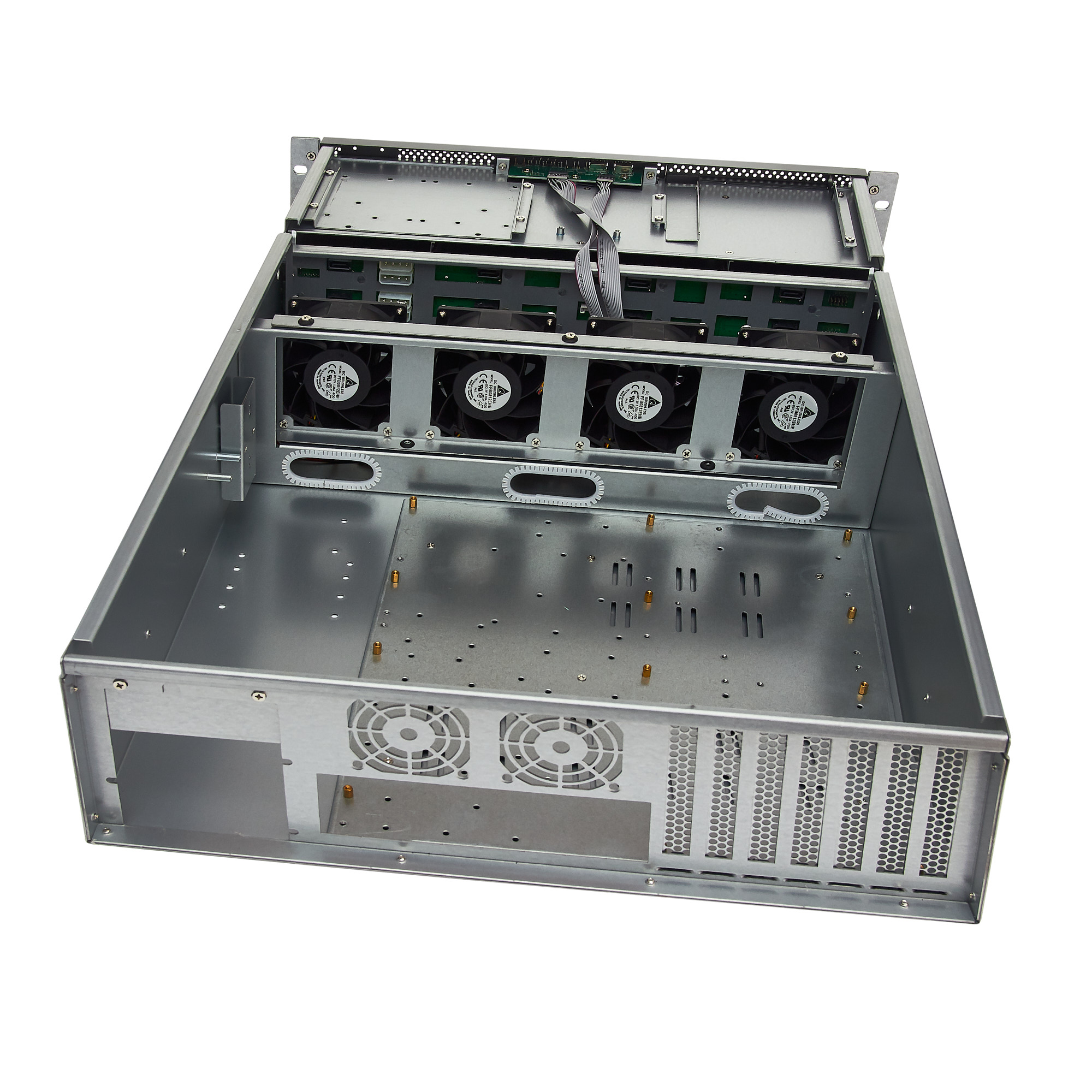

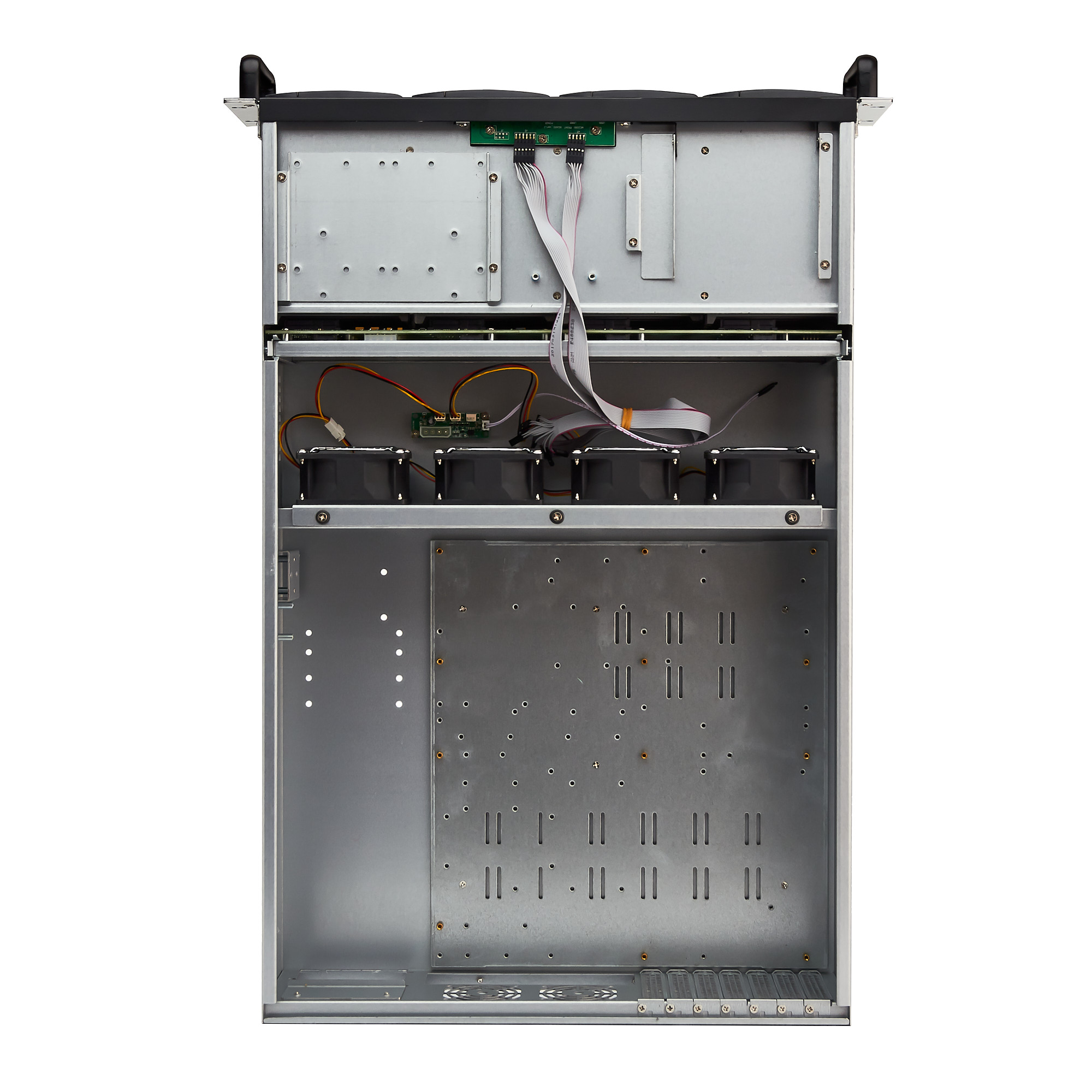

Cooling System:
In the middle frame 4 x 8 cm
On the back panel 2 x 6 cm (pre-installed)
Recommended ExeGate PSU 1U
Max. height of the CPU fan, mm 100
Max. PSU length, mm 320
Max. PSU with opposite drive bay length, mm 100
Max. SVGA length, mm 300
Chassis material 1,17 steel
Cases color Silver
Chassis color Silver
Dimensions chassis (D x W x H), mm 670 x 430 x 132
Dimensions (D x W x H), mm 706 x 482 x 133
Net Weight w/o PSU / with PSU, kg 18,95 / 19,5


PSU, W w/o PSU 500 600 700 800
P/N EX281234 EX281299 EX281300 EX281301 EX281302
EAN 4895205111974 4895205112100 4895205112117 4895205112124 4895205112131
