ModificationP/NEAN
w/o PSUEX2771894895205106819
500WEX2896834895205128156
600WEX2772044895205106796
700WEX2772054895205106802


Miditower ExeGate EVO-8205
Miditower ExeGate EVO-8205
Miditower ExeGate EVO-8205
Miditower ExeGate EVO-8205
Miditower ExeGate EVO-8205
Miditower ExeGate EVO-8205
Miditower ExeGate EVO-8205
Miditower ExeGate EVO-8205
Specification

Cases Features
Case TypeMiditower
Motherboard SupportATX, mATX, ITX
Chassis MaterialSteel
Material Thickness, mm0,55
Screwless AccessYes
Number of screws for mounting the side panel, pcs4
LED BacklightBlue backlight in the front panel
Case ColorBlack
Chassis ColorBlack
Power
PSU TypeATX
Power supply locationAt the top of the rear side
PSU modelsw/o PSU
PSU models500NPX, 600NPX, 700NPX
Recommended ExeGate PSUSeries NPX
Construction
External Drive Bay 5,25"1
Internal Drive Bay 5,25"1
Internal Drive Bay 3,5"3
Internal Drive Bay 2,5"4
Dush Filter (location)Yes
Expansion Slots7
Cooling System
Installed fans on the front panel12 cm x 1
Places for installation on the rear panel12 cm x 1
Places to install on the side panel12 cm x 1
Recommended ExeGate fans12 cm
Interfaces
Interface locationIn the middle of the front panel
USB 2.0 Type-A1
USB 3.2 Gen1 Type-A1

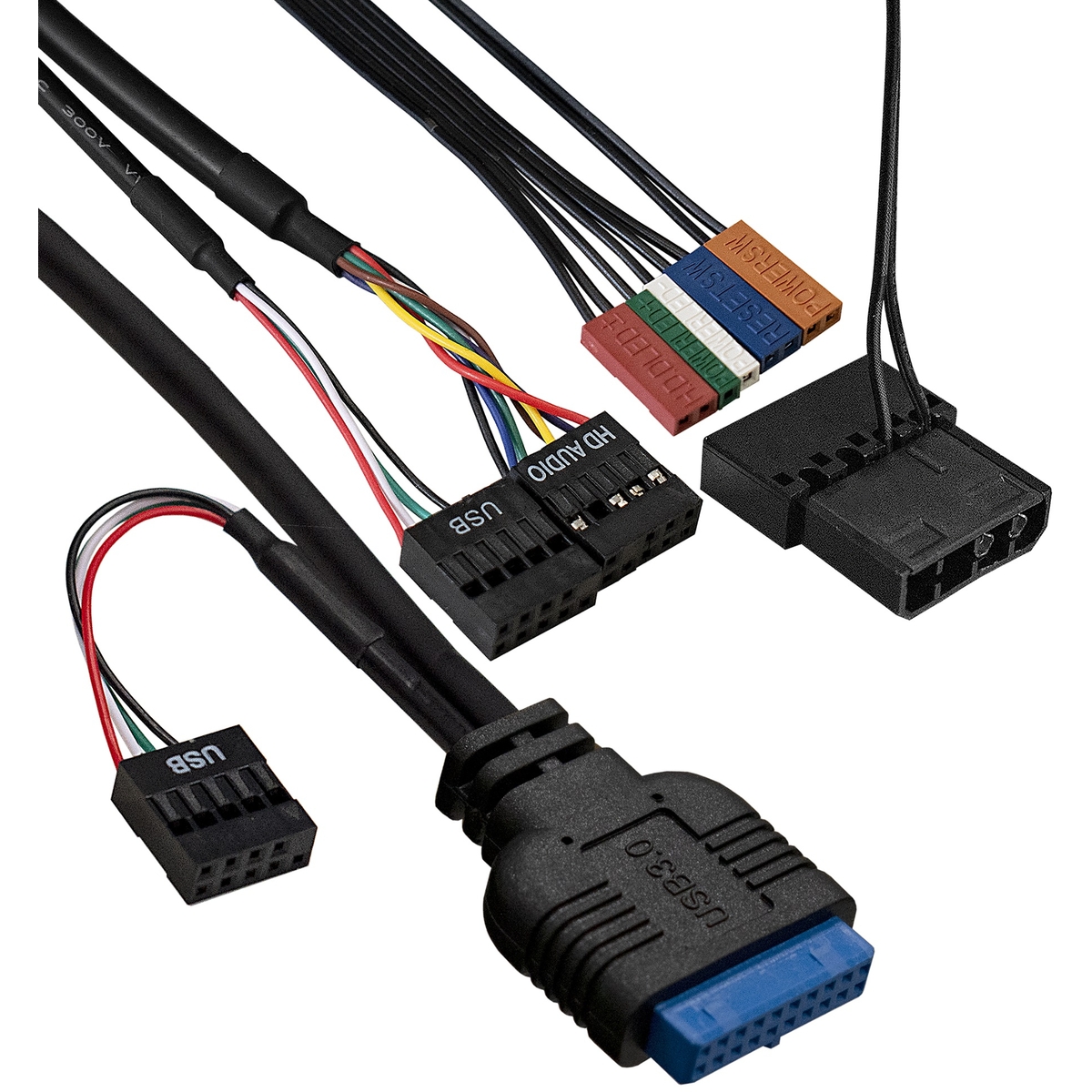

Front I/O PortsHD Audio 2 x 3.5mm
Other parameters
Max. motherboard length, mm244
Max. height of the CPU fan, mm150
Max. PSU length, mm230
Max. PSU length with drive opposite, mm200
Max. SVGA length, mm320
Max. SVGA length with drive opposite, mm310
Chassis dimensions
Width, mm180
Height, mm410
Depth, mm375
Case Dimensions
Width, mm200
Height, mm425
Depth, mm415
Carton Dimensions
Width, mm225
Height, mm460
Depth, mm460
Net Weight , kg3,8
